Description

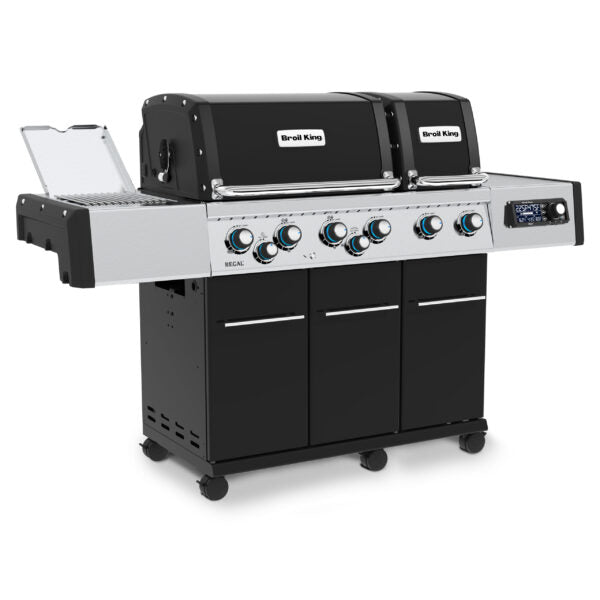

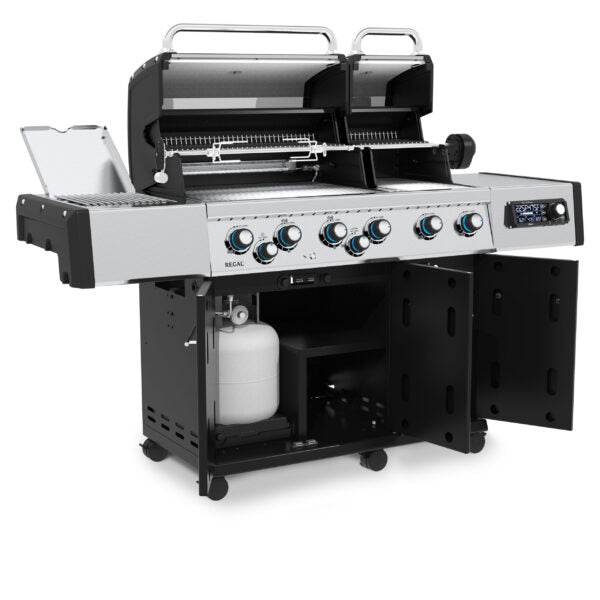

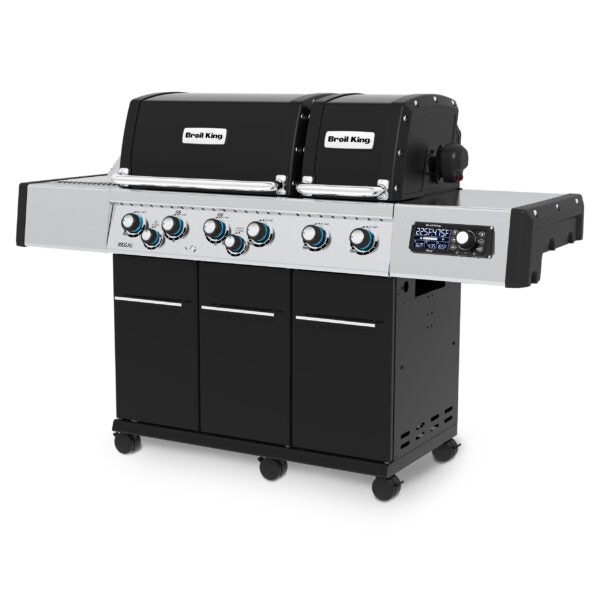

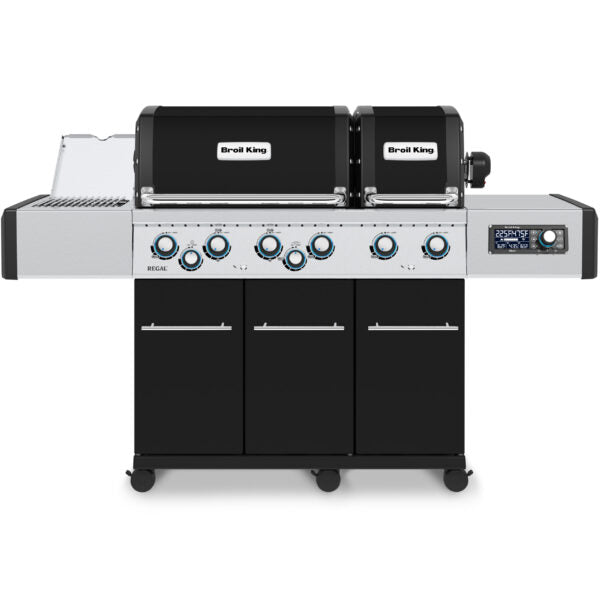

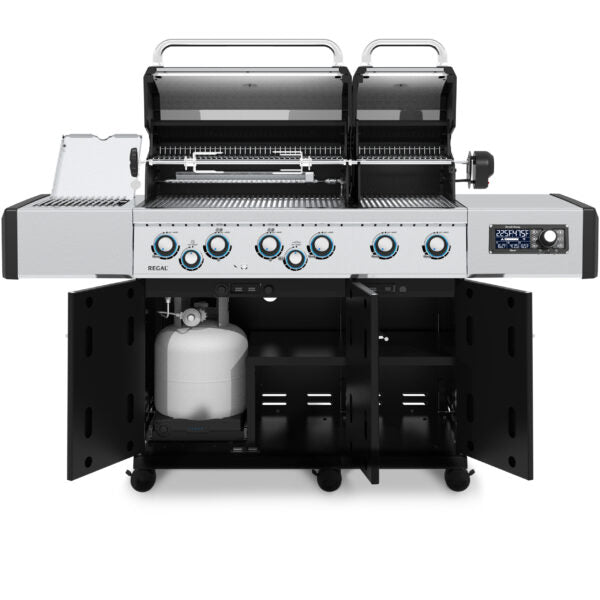

The Broil King Regal Q 690 Pro IR Natural Gas Grill brings advanced performance and control to your backyard with iQue™ smart technology, allowing wireless temperature monitoring right from your phone. Designed for grillmasters who demand versatility, it offers two fully independent cook boxes—a 750 sq. in. primary area and a 250 sq. in. secondary space—each with dedicated burners and cooking grids.
Equipped with six stainless steel Dual-Tube™ burners, this 70" powerhouse delivers 60,000 BTUs, a 10,000 BTU infrared side burner for intense searing, and a 15,000 BTU rear rotisserie burner. It includes premium stainless steel and cast iron grids, stainless steel Flav-R-Wave™ heat diffusion, and Sure-lite™ ignition for reliable startups every time.
The grill's sleek design features stainless steel side shelves, a black cabinet base with stainless steel doors, built-in panel lighting, and a COB handle-mount grill light. Whether you're searing, slow-roasting, or cooking on dual zones, this grill offers unmatched control and culinary potential.
Features:
System
- 60,000 BTU stainless steel Dual-Tube™ burner system
- 10,000 BTU Infrared side burner
- 15,000 BTU stainless steel rear rotisserie burner
- Premium rotisserie kit included
- 1,030 sq. in. total cooking space including porcelain-coated warming rack
- 750 sq. in. / 3,225 sq. cm. primary large cook box
- 250 sq. in. / 1,613 sq. cm. primary small cook box
- Two completely separate cook boxes
- Large cook box: Solid 9 mm stainless steel rod grids
- Small cook box: Heavy-duty cast iron cooking grids
- Infrared side burner: 8 mm stainless steel rod grids
- Six stainless steel Dual-Tube™ burners
- Stainless steel Flav-R-Wave™ cooking system
- Linear-Flow™ valves with 180° sensi-touch™ control
- Sure-lite™ electronic ignition system
- Two Deluxe Accu-Temp™ thermometers
Design
- Stainless steel hood panel and cook box with cast aluminum end caps
- Stainless steel control panel and side shelves with cast aluminum condiment bins
- Enclosed black cabinet base with stainless steel cabinet doors
- Heavy-duty locking, swivel casters with level setting
- COB handle-mount grill light included
- Propane models have a pull-out tank drawer for easy changes
- Built-in control panel lights
Fuel Options
- Natural Gas (NG) - 10ft natural gas hose included.
- Propane (LP) - designed for use with 20lb tank - not included.
Specifications:
| Item Number | BK689247 |
| Model | Q Regal 690 Pro IR |
| Fuel Type | Natural Gas |
| No. of Burners | 6 |
| Main Burner Output | 60,000 BTU |
| Infrared Burner | 10,000 BTU |
| Rotisserie Burner | 15,000 BTU |
| Primary Cooking Space | 750 SQ. IN. |
| Dimensions | 49.2" (H) x 70" (W) x 24.8" (D) |
| Weight | 270 lbs. |
Warranty:
 |
We reward quality. This Broil King® features a Limited Lifetime Warranty on the entire cookbox, 15 years on Dual-Tube™ burner system, and 15 years top to bottom, on all remaining parts and paint. |
Documents & Files:
About The Manufacturer :
We proudly manufacture our gas grills in our own North American factories using carefully designed domestic and global components. By embracing continuous improvement and adhering to strict international quality standards, our team is dedicated to providing premium products.
