Description

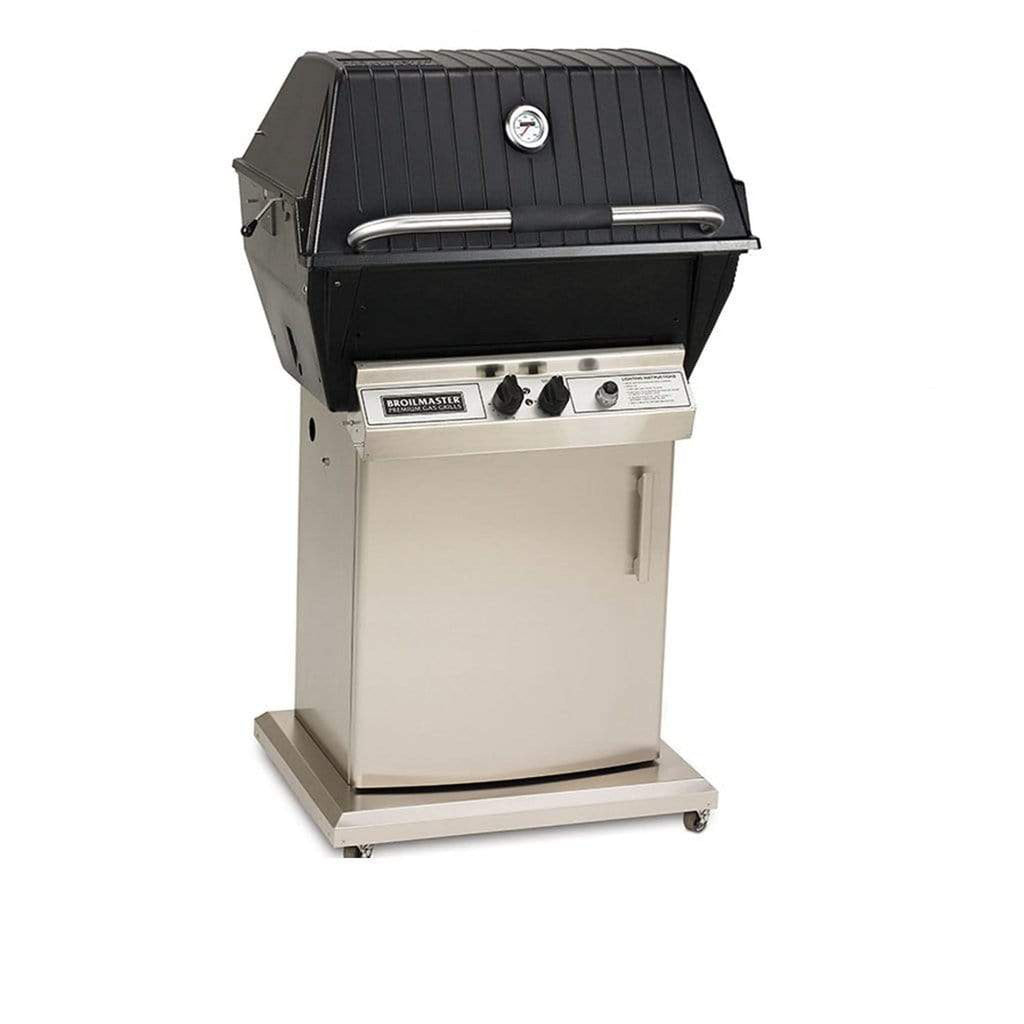

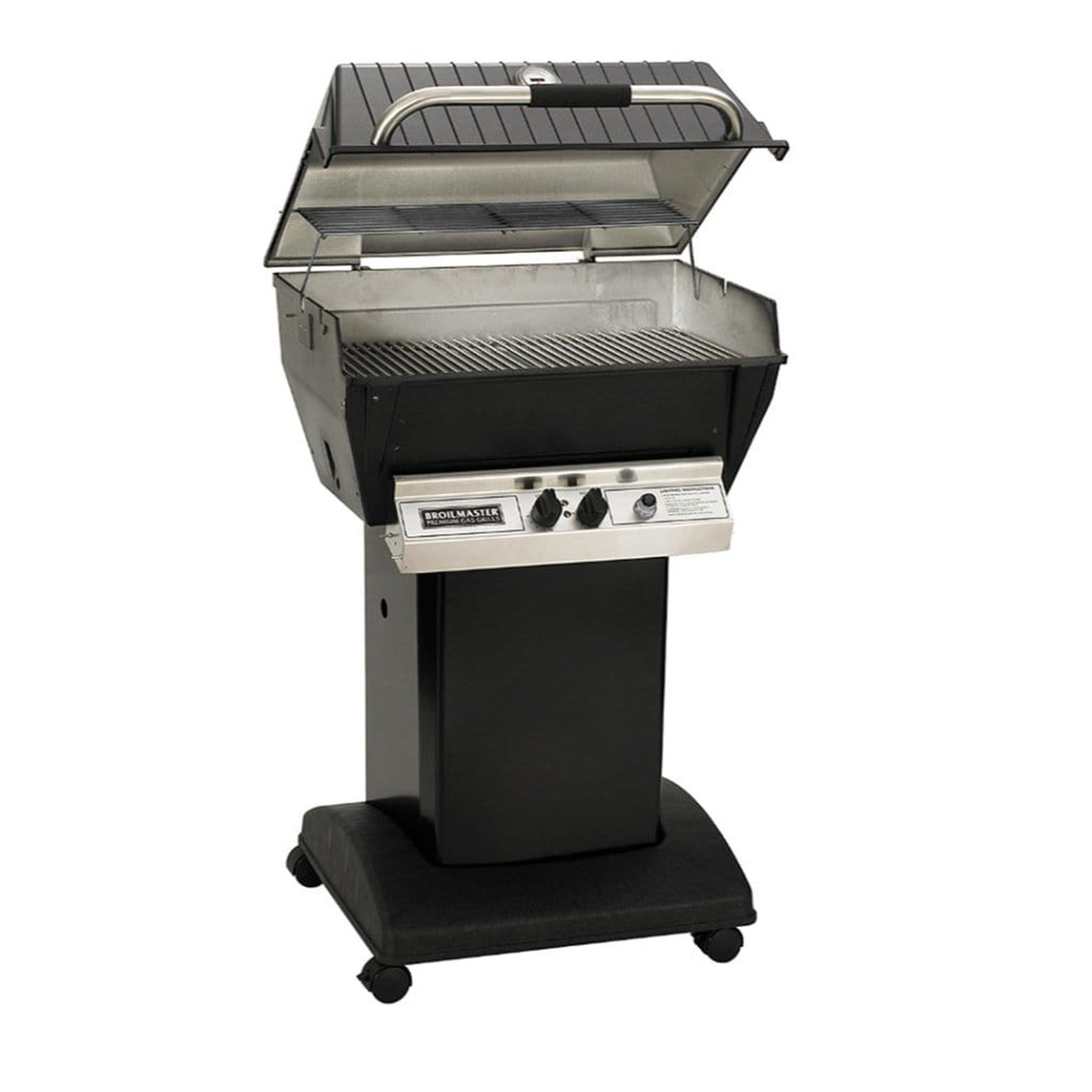

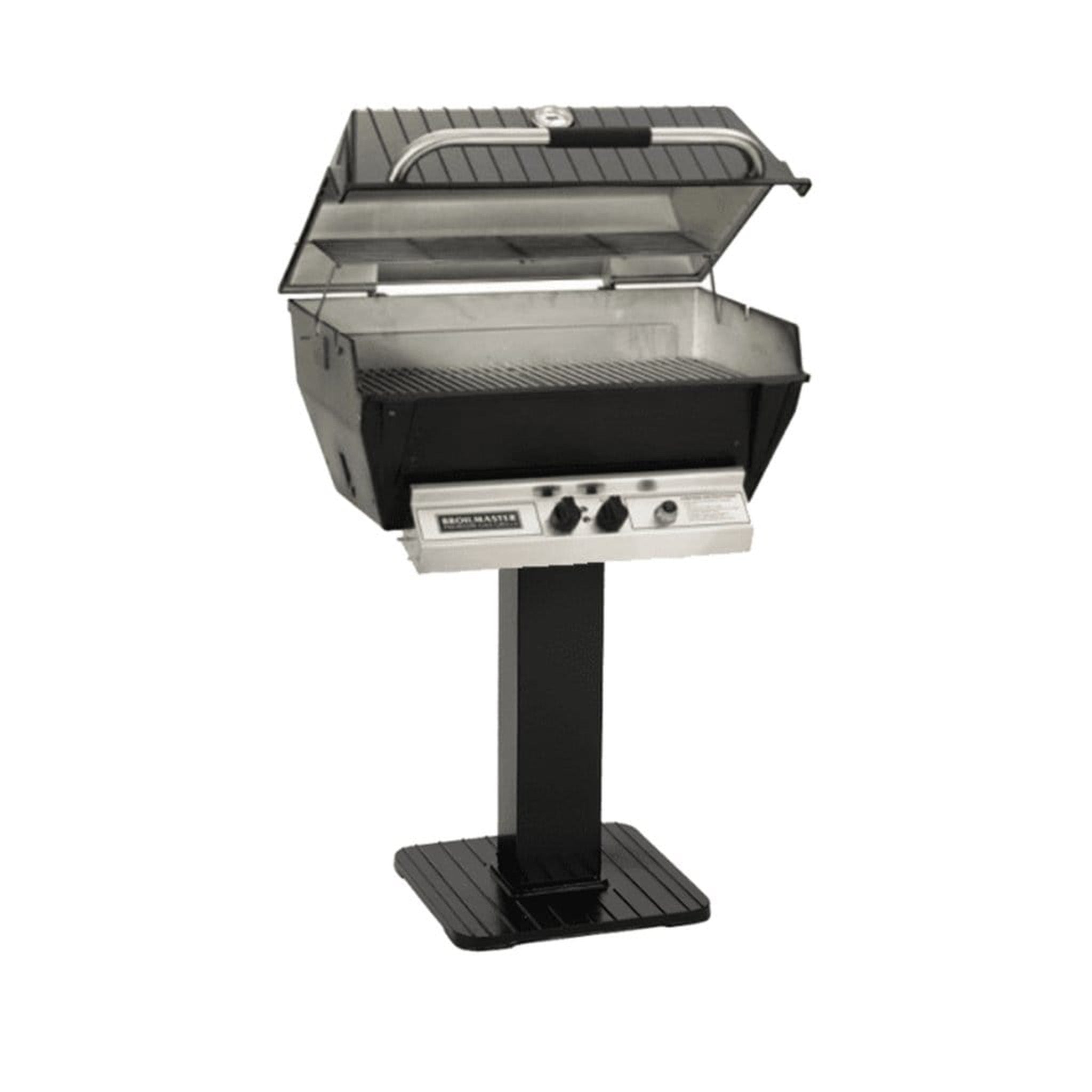

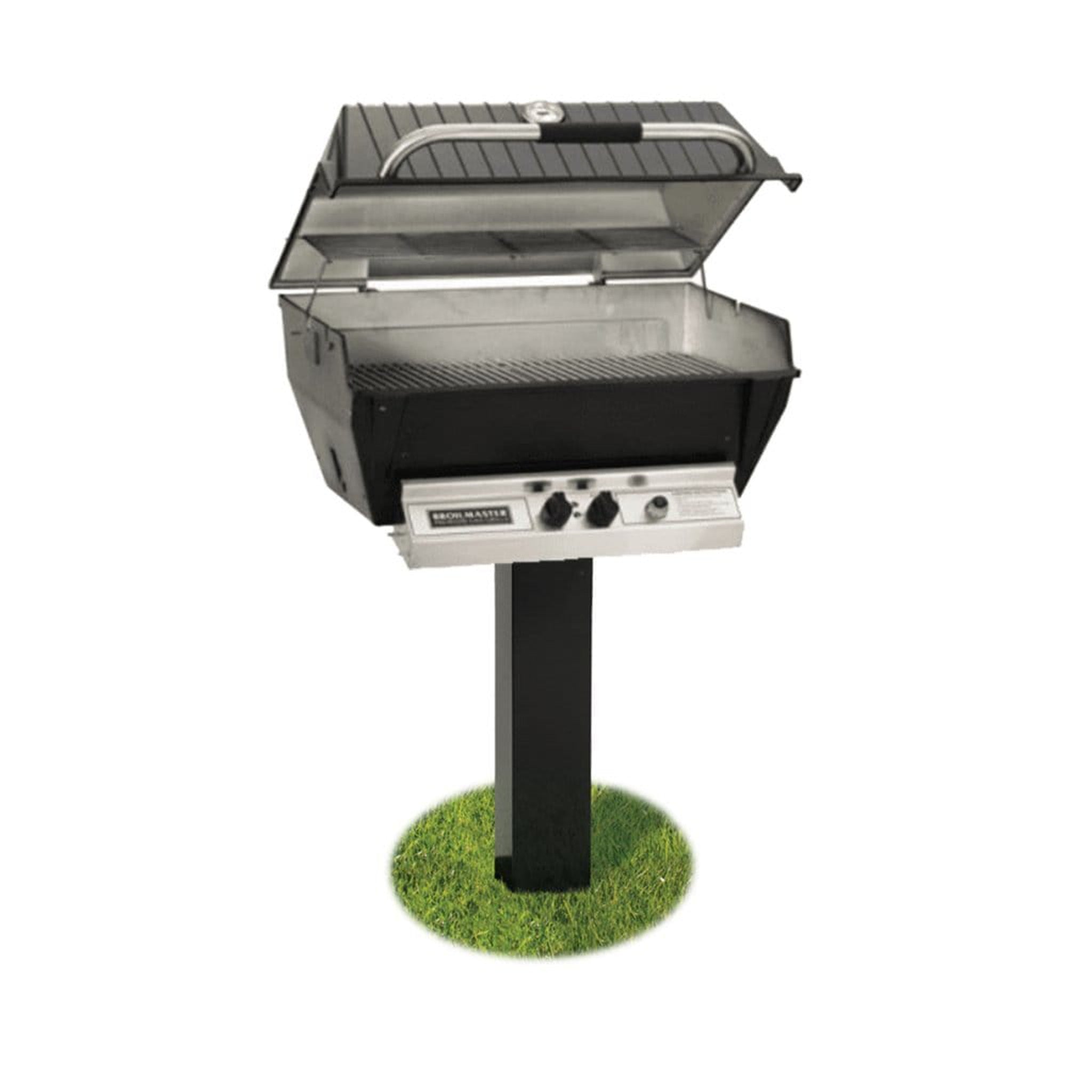

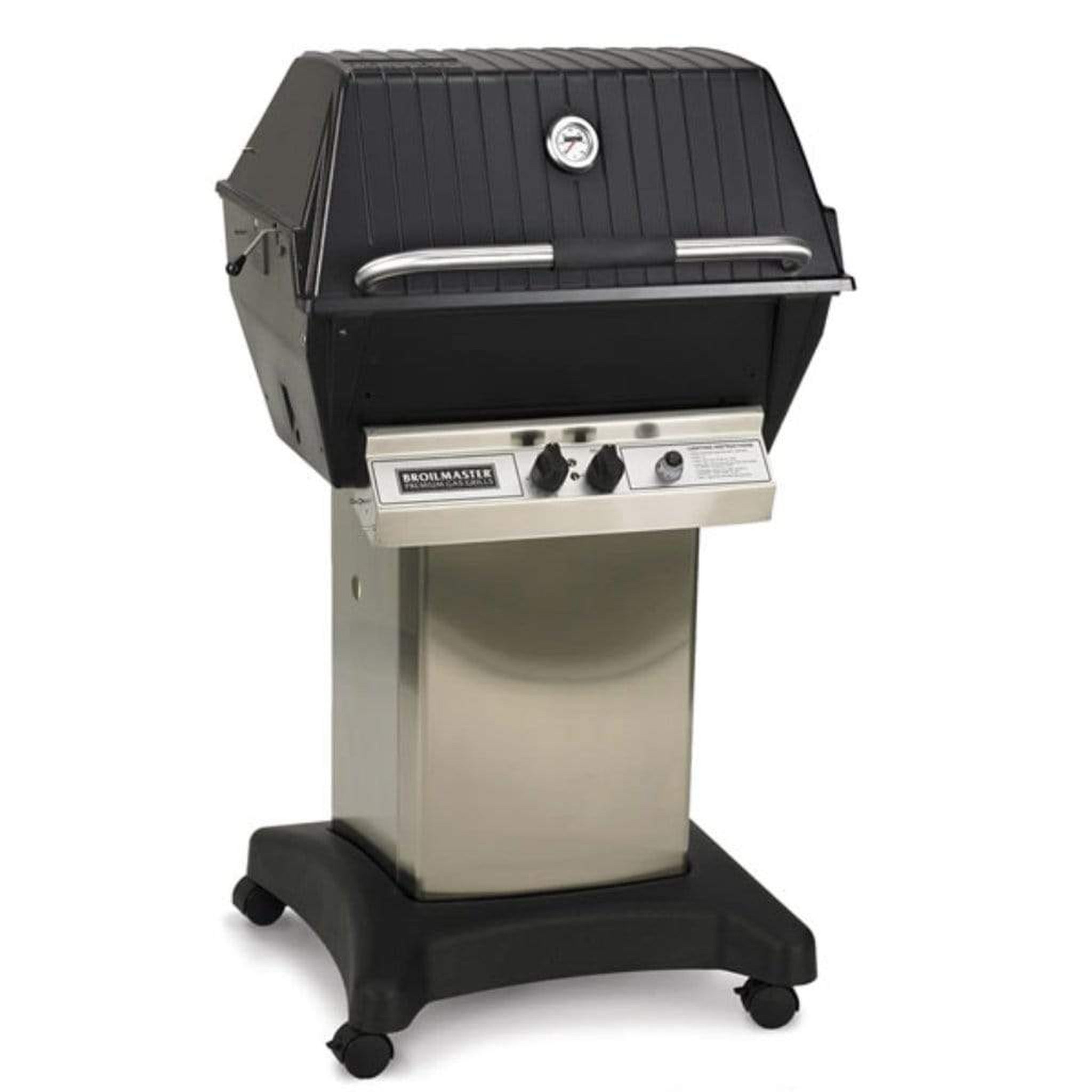

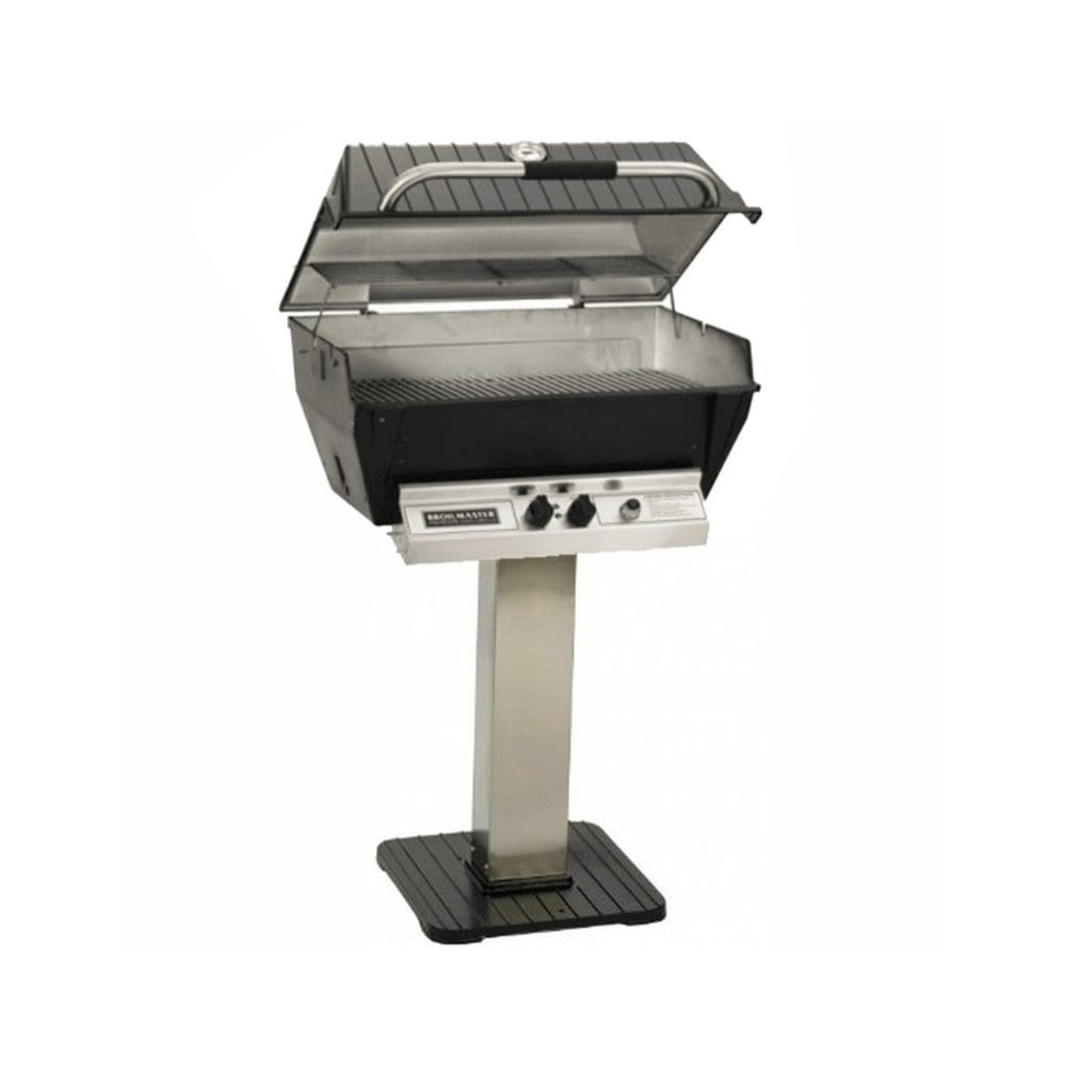

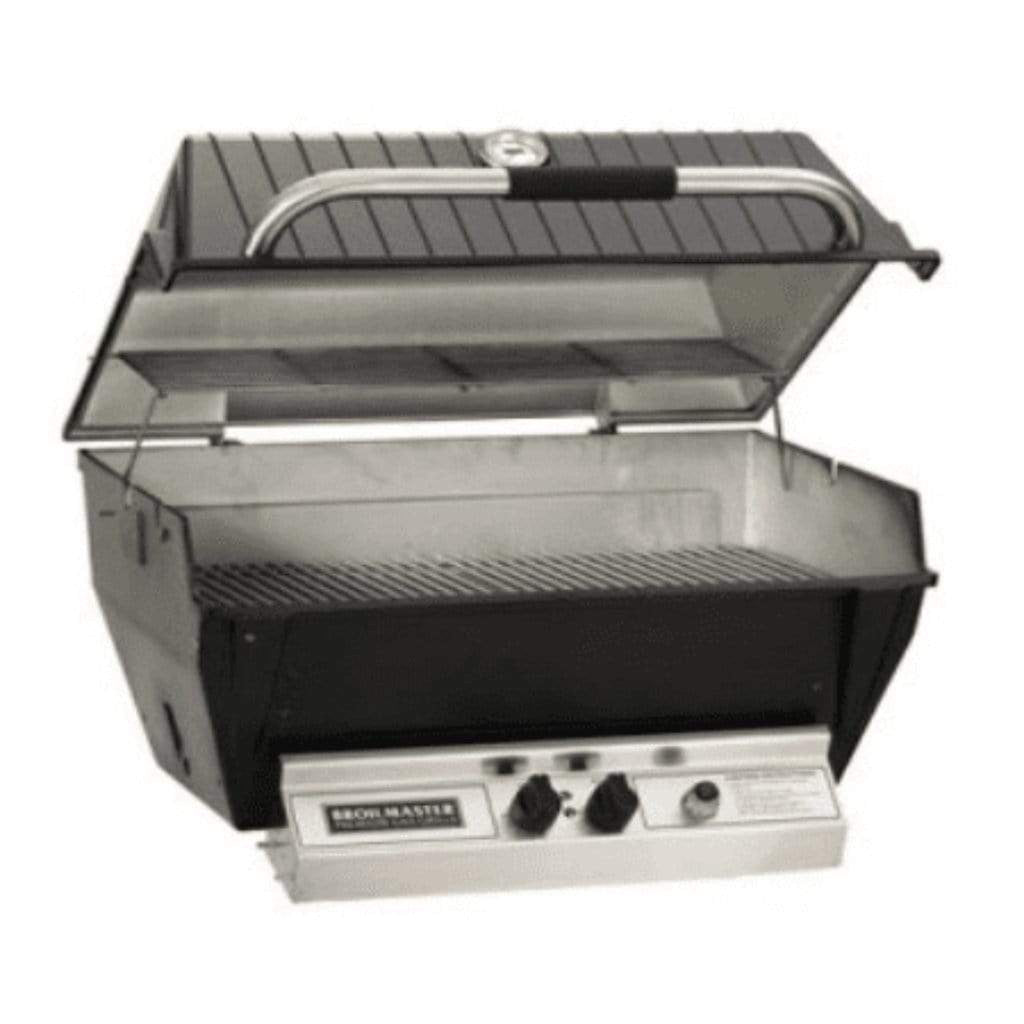

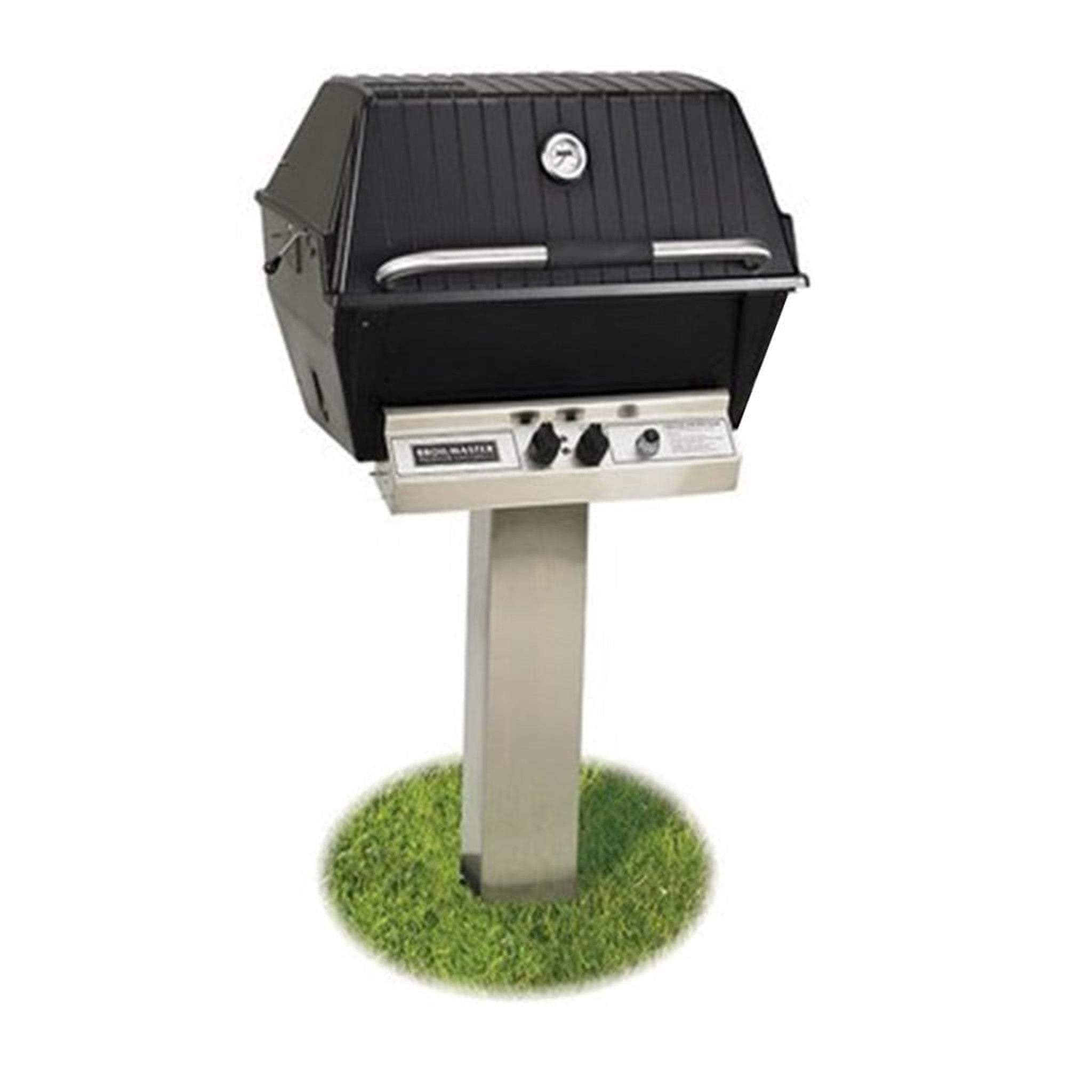

The Broilmaster H3X Deluxe Gas Grill is engineered for grill enthusiasts seeking classic performance with modern durability. Constructed from heavy-duty cast aluminum, this versatile model is compatible with both propane and natural gas, making it ideal for custom setups or replacements.
Featuring a 40,000 BTU stainless steel H-style burner, the grill ensures even heat distribution across its 595 square inches of cooking space. Charmaster™ Briquets enhance flavor and reduce flare-ups, while stainless steel cooking grids and a chrome-plated retract-a-rack provide reliable grilling performance.
Finished with a stainless steel control panel and electronic ignition, the H3X is designed to fit all Broilmaster mountings—delivering reliable performance with timeless quality.
Standard Features:
|
|
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
 |
Stainless Steel H-Tie Burner |
 |
Stainless Steel Cooking Grids |
 |
Chrome Plated Steel Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
 |
Charmaster Briquets Converts Your Broilmaster Grill to an Indirect Cooking System |
|
|
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Other Features:
- 40,000 BTU
- 595 Sq. In. of Total Cooking Area
- Charmaster™ Briquets
- Chrome Plated Steel Retract-A-Rack
- Fits all Broilmaster Mountings
- Heavy-Duty Cast Aluminum Construction
- Stainless Steel Control Panel
- Stainless Steel Cooking Grids
- Stainless Steel H-Style Burner
Technical Specifications:
| Fuel Type: | Propane or Natural Gas |
| Maximum BTU Output: | 40,000 |
| Total Grilling Area |
595 Sq. Inches |
| Color: | Black |
| Item Weight: | 105 lbs. |
| Overall Head Dimension: | W 26 3/4" x D 18 3/4" x H 19" |
| Main Burner Configuration: | Conventional |
| Number of Main Burners: | 1 Burner |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Burner Material: | Stainless Steel |
| Material: | Cast Aluminum |
H3X Includes:
- Two Stainless Steel Cooking Grids Non-Adjustable (595 Sq. In. Of total cooking area)
- Plated Steel Retrack-A-Rack
- Charmasters Briquets
- Stainless Steel H-Style Burner (40,000 Btu)
- Electronic Ignition
Requires:
- Cart or Post
BROILMASTER WARRANTY |
|
|
LIMITED LIFETIME Against Rust-through |
Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
|
10 YEARS Against Rust-through |
Stainless Steel Burners for H-Series and R3B |
|
5 YEARS Against Rust-through |
Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
|
2 YEARS Against Rust-through |
Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
|
1 YEAR Against Rust-through |
Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Downloads:
- H3X Owners Manual
- Broilmaster Brochure
- Post Owner's Manual
- Cart With Door Owner's Manual
- Cart With Base Owner's Manual
- Solid Surface Front Shelf Kit Owner's Manual
- Solid Surface Drop-Down Shelf Kit Owner's Manual
- Flare Buster Flavor Enhancer Owner's Manual
Broilmaster Assembly Video:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
