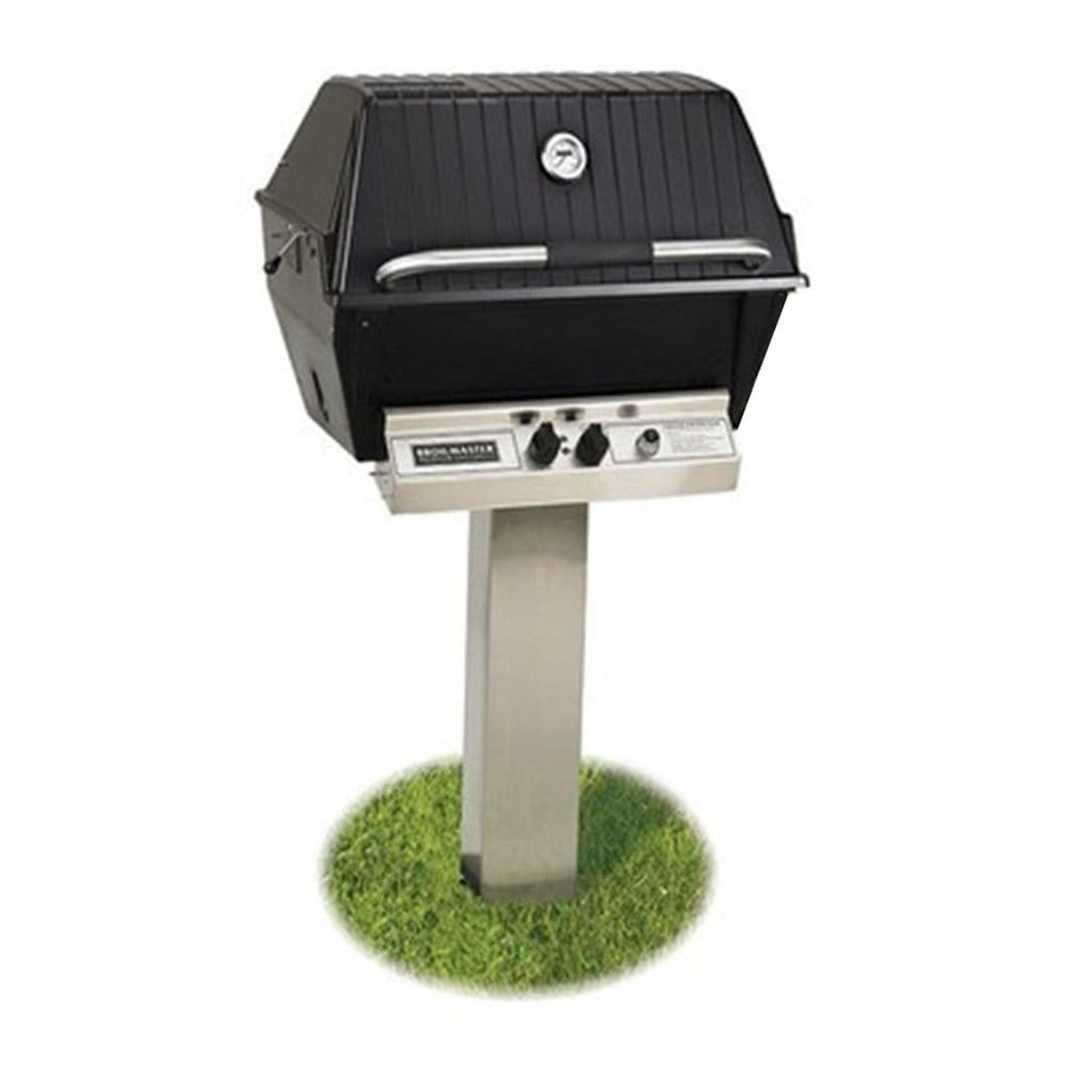

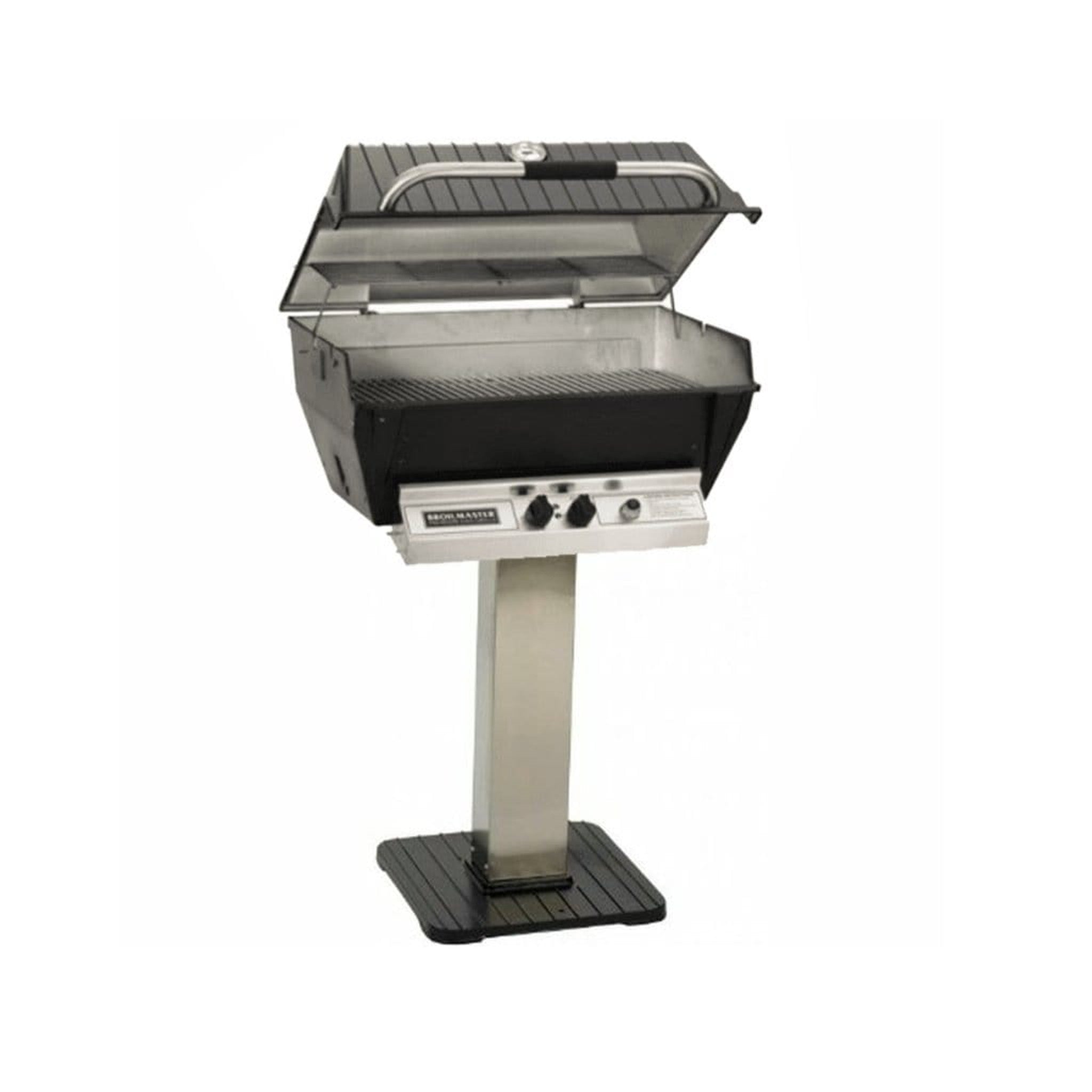

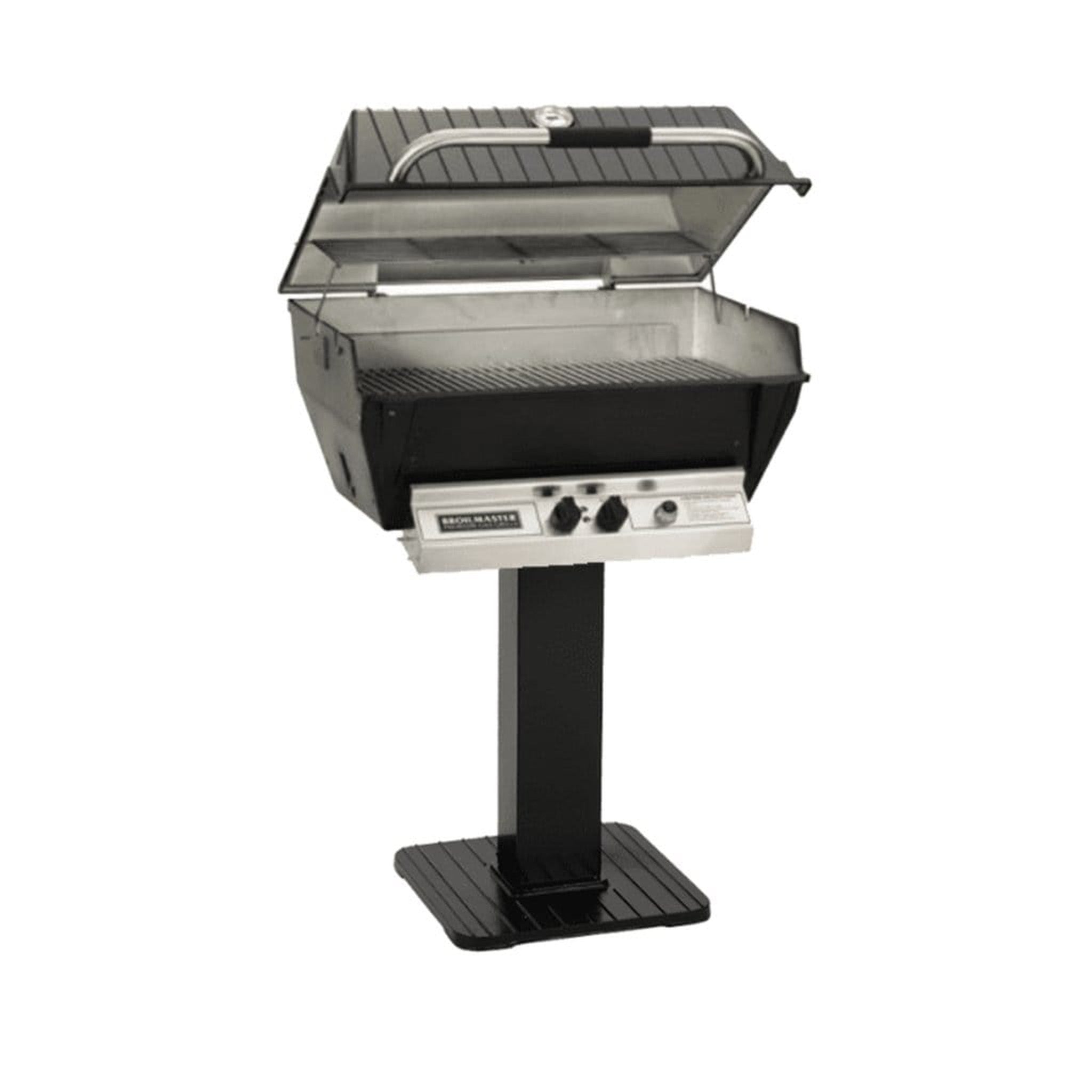

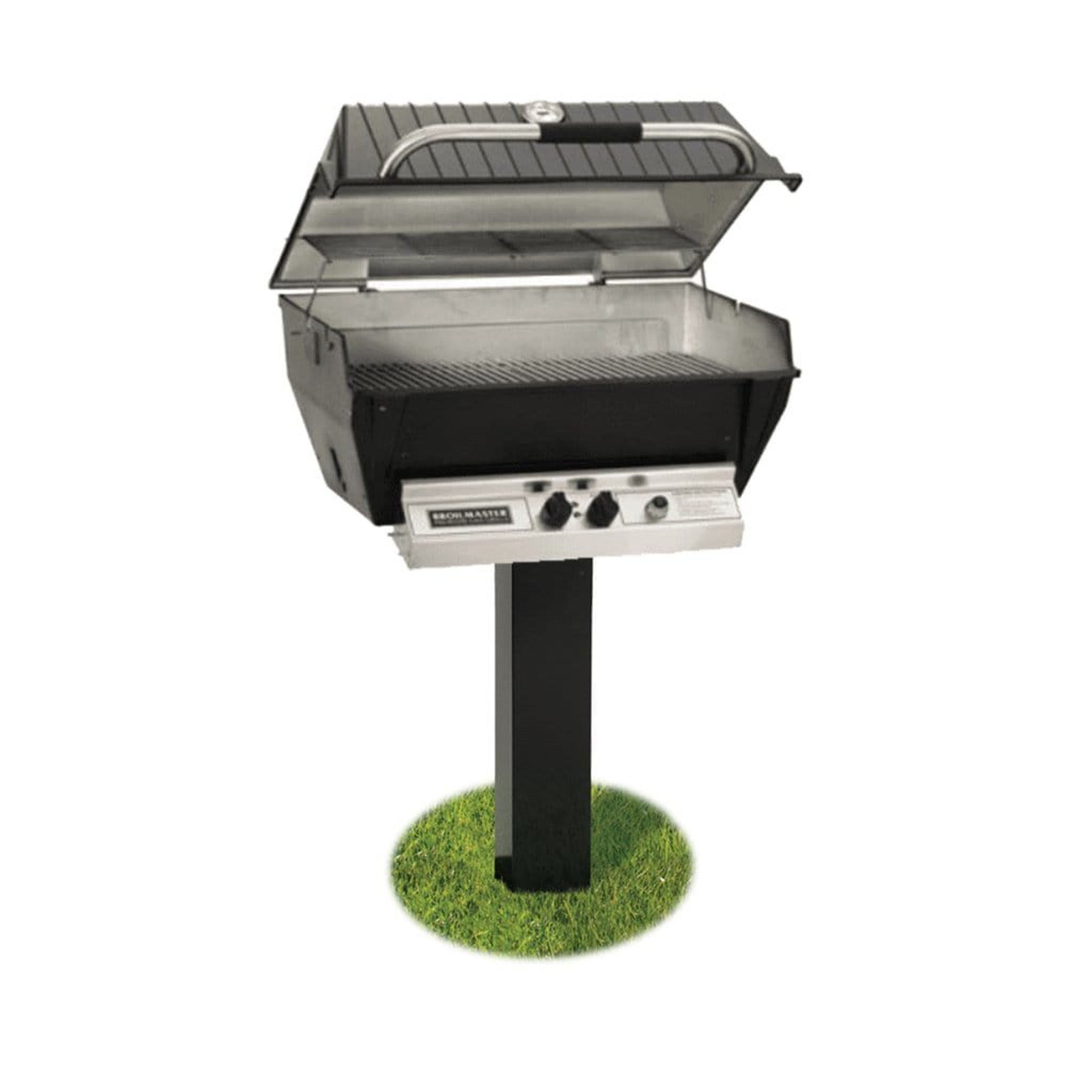

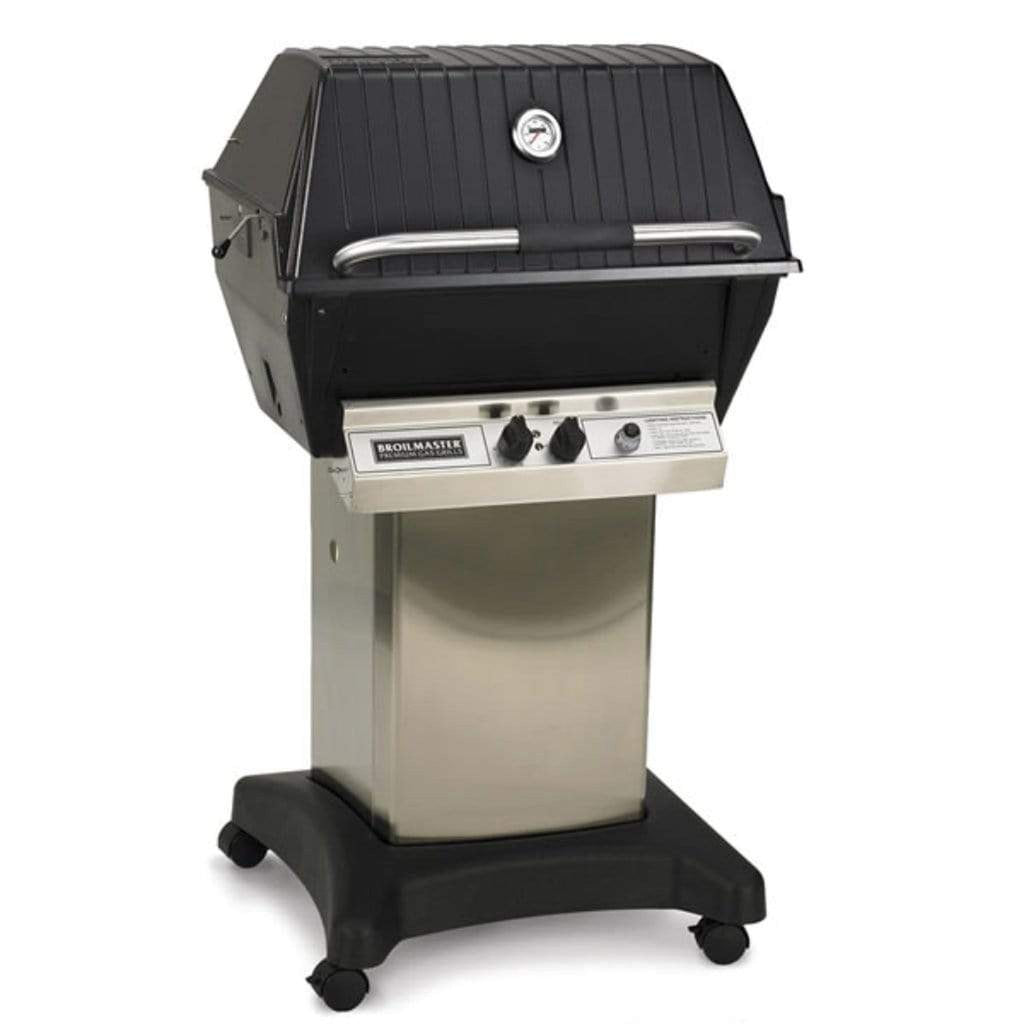

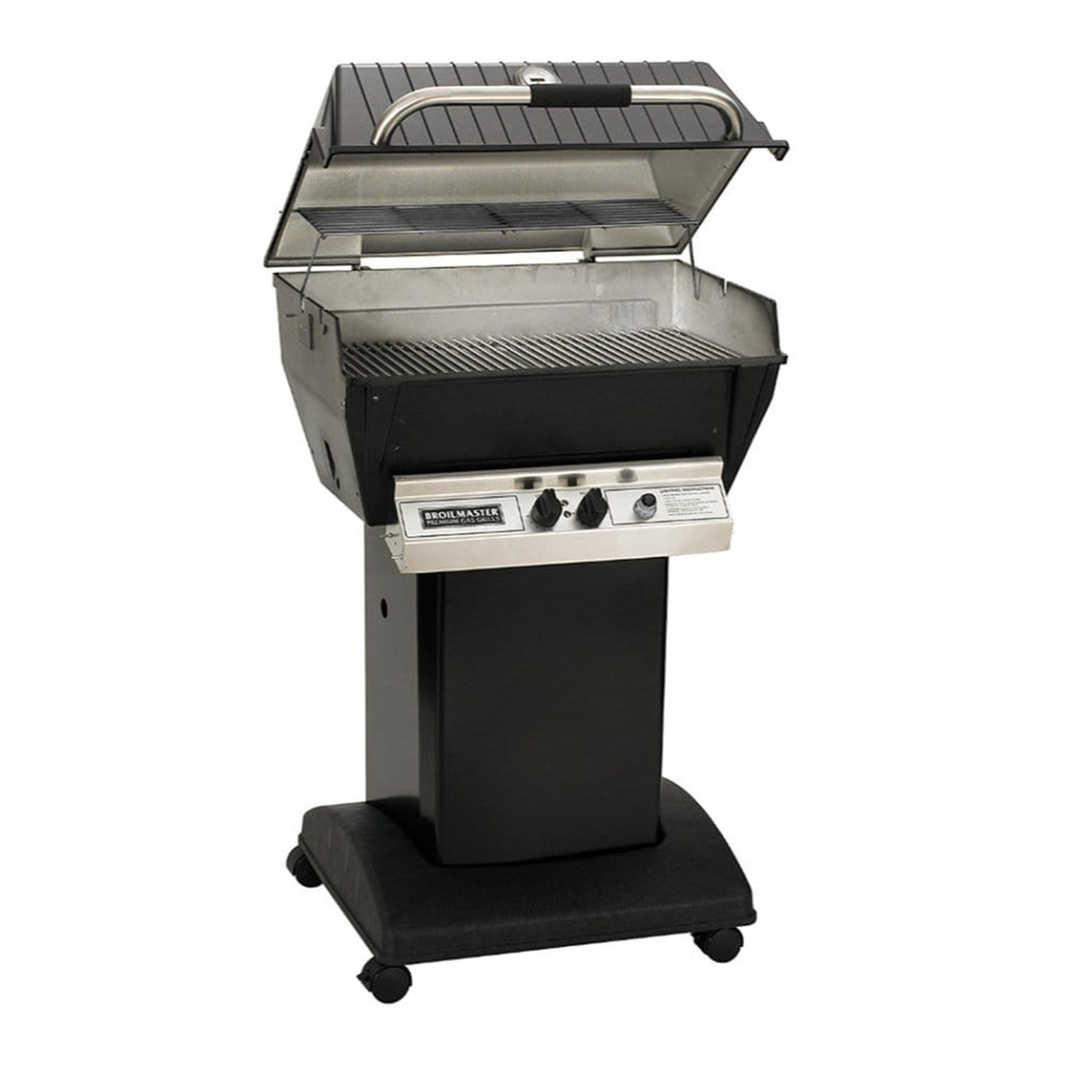

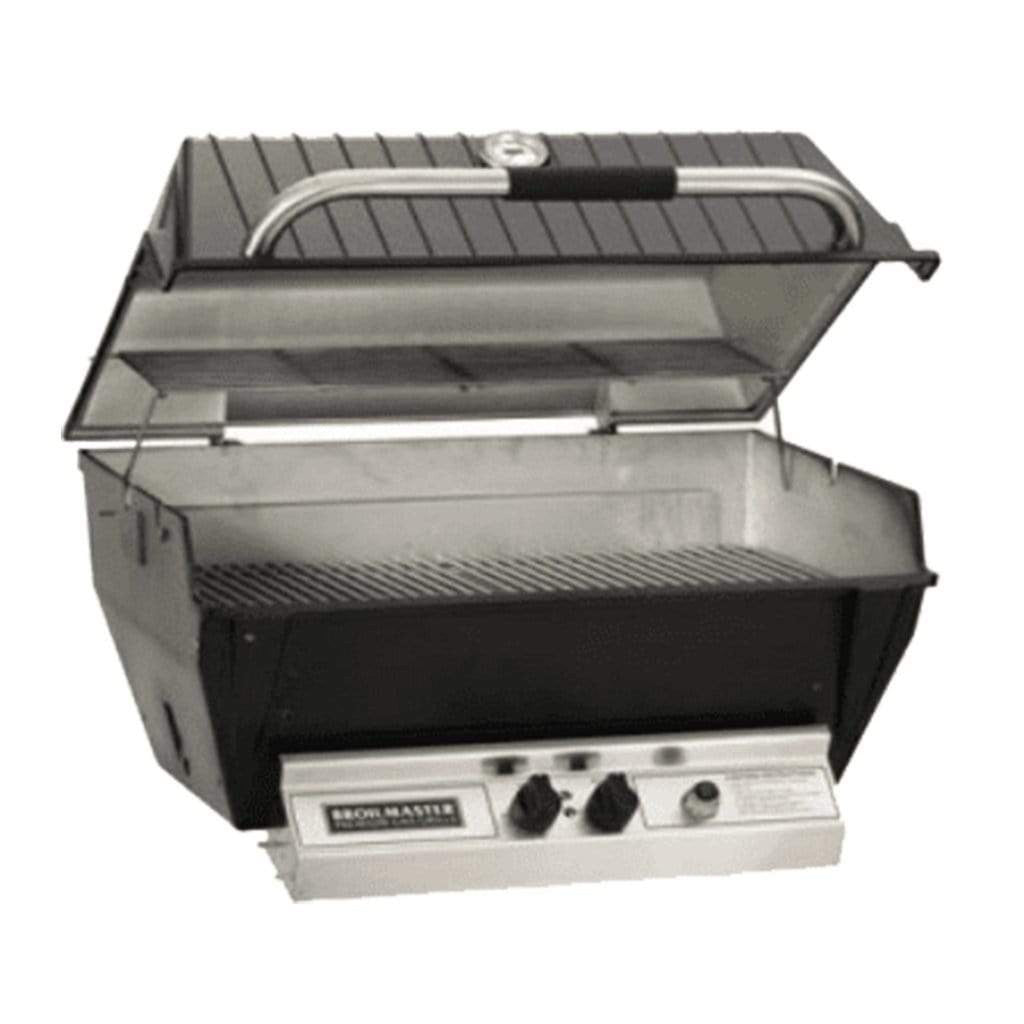

Broilmaster H4X Deluxe Gas Grill with H-Style Stainless Steel Burner

The Broilmaster H4X Deluxe Gas Grill is designed for serious grillers seeking durability and performance. Its rugged cast aluminum construction stands up to the elements, while the stainless steel H-style burner ensures balanced heat across the entire cooking surface.

With 473 square inches of total grilling area, this model includes a two-piece stainless steel rod cooking grid, a chrome-plated steel warming rack, and flavorful Charmaster Briquets for improved heat retention and food taste. The stainless steel control panel adds a polished, professional look.

Perfectly suited for most Broilmaster mountings (excluding the PSCB cart), the H4X offers a customizable grilling solution built to last. Whether it's casual barbecues or weekend cookouts, this grill delivers consistent performance every time.

Standard Features:

	Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp
	Stainless Steel H-Tie Burner Delivers Great Heat Distribution
	Single-Level Stainless Steel Cooking Grids ¼” Cross Braced Bars For Added Strength And Reliability
	Chrome Plated Steel Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space
	Charmaster Briquets Converts Your Broilmaster Grill to an Indirect Cooking System
	Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting



 Other Features:

• 473 Sq. In. of Total Cooking Area
• Heavy-Duty Cast Aluminum Construction
• 36,000 Btu Input
• Stainless Steel H-Style Burner
• 2-Piece Stainless Steel Rod Cooking Grids (Single-Level)
• Stainless Steel Control Panel
• Chrome Plated Steel Warming Rack
• Charmaster Briquets
• Fits most Broilmaster Mountings (except PSCB cart)

Technical Specifications:

Fuel Type:	Propane or Natural Gas
Maximum BTU Output:	36,000
Total Grilling Area	473 Sq. Inches
Color:	Black
Item Weight:	64 lbs.
Overall Dimension:	W 24" x D 16.25" x H 19"
Main Burner Configuration:	Conventional
Number of Main Burners:	1 H-Burner
Ignition:	Electronic
Cooking Grid Material:	Stainless Steel
Warming Rack Material:	Stainless Steel
Burner Material:	Stainless Steel
Material:	Cast Aluminum



H4X Includes:

• Two Stainless Steel Cooking Grids Non-Adjustable (473 Sq. In. Of total cooking area)
• Plated Steel Retrack-A-Rack
• Charmasters Briquets
• Stainless Steel H-Style Burner (36,000 Btu)
• Electronic Ignition

Requires:

• Cart or Post



BROILMASTER WARRANTY
LIMITED LIFETIME Against Rust-through	Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit
10 YEARS Against Rust-through	Stainless Steel Burners for H-Series and R3B
5 YEARS Against Rust-through	Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter
2 YEARS Against Rust-through	Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield
1 YEAR Against Rust-through	Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head
