Description

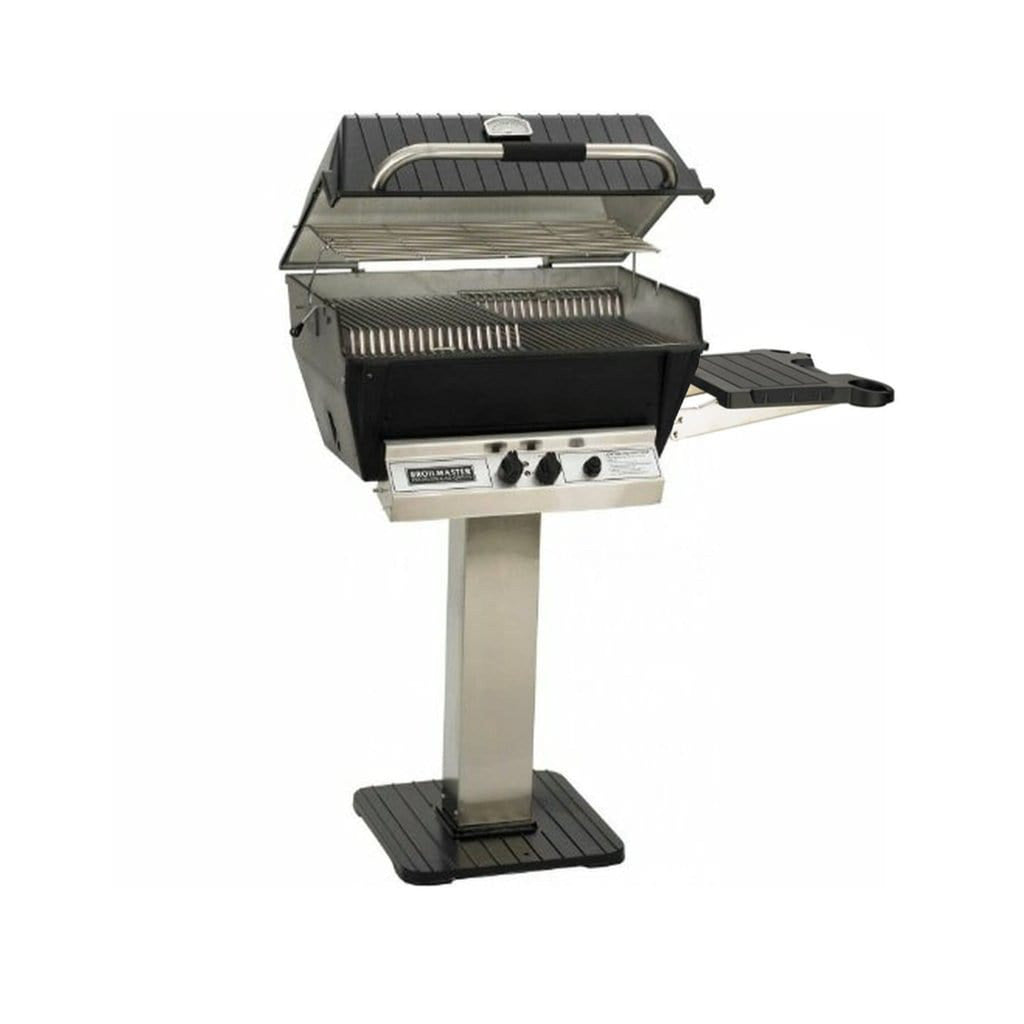

The Broilmaster P3PK7N Premium Natural Gas Grill offers powerful performance and long-lasting quality in a classic cart-style design. Its cast aluminum construction provides superior heat retention, while the “8” shaped stainless steel bowtie burner delivers up to 40,000 BTUs for even, controlled grilling.
This grill is outfitted with adjustable stainless steel rod cooking grates and ceramic briquettes that ensure consistent heat distribution and enhanced flavor. The multi-level grids make it easy to accommodate a variety of foods, from delicate vegetables to thick cuts of meat.
Additional features include a continuous battery-powered ignition system, a full-width warming rack, and a durable design that resists the elements. Ideal for backyard chefs who demand performance and versatility in a compact, cart-mounted format.
Standard Features:
|
|
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
 |
Stainless Steel Bow Tie Burner Evenly Distributes Heat Across the Cooking Area |
 |
Multi-Level Stainless Steel Cooking Grids Provide Control Over Food Distance To The Flame |
 |
Stainless Steel Folding Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
 |

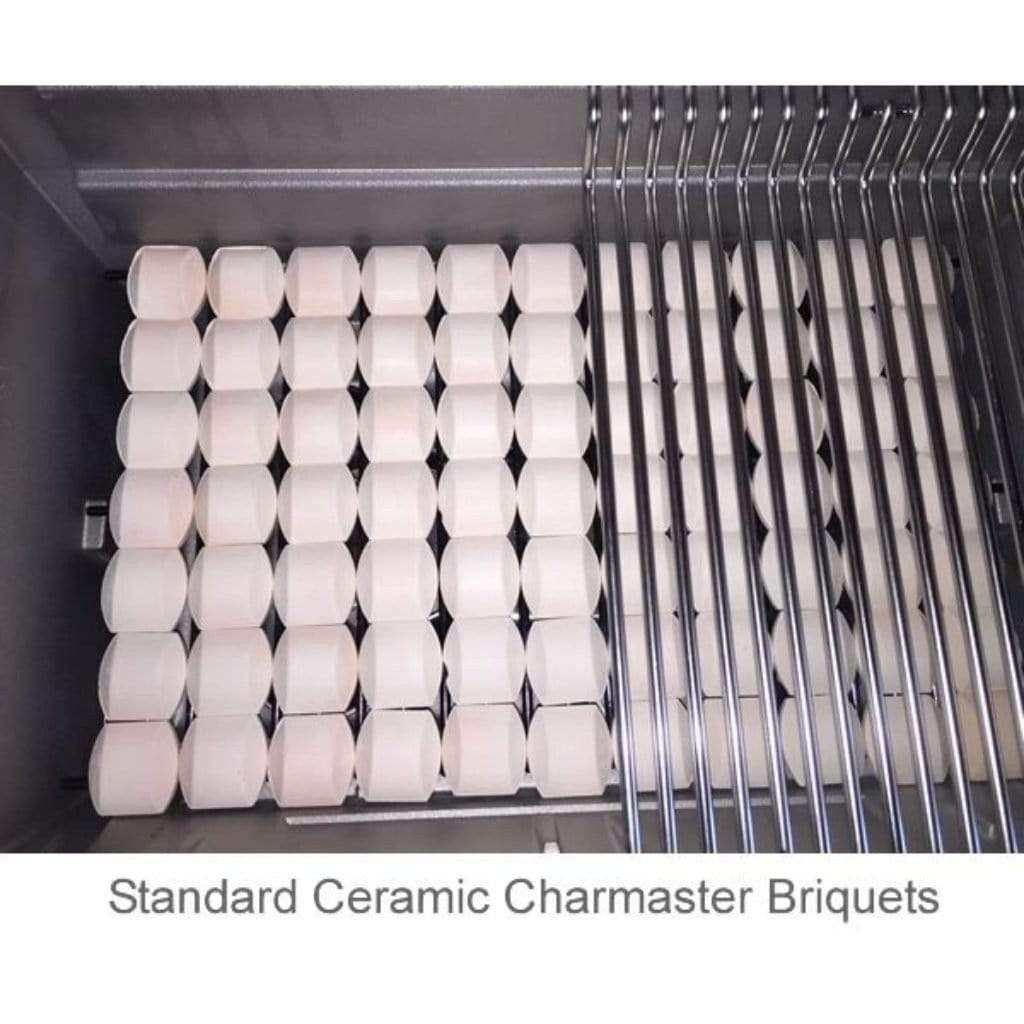

Char-Master Briquets Maximize Heat Distribution and Burner Protection |
 |
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Other Features:
- Grill Type: Cart Model Grill
- Main Burner BTUs: 40,000
- Primary Cooking Dimensions: 26 3/4"W x 17"D

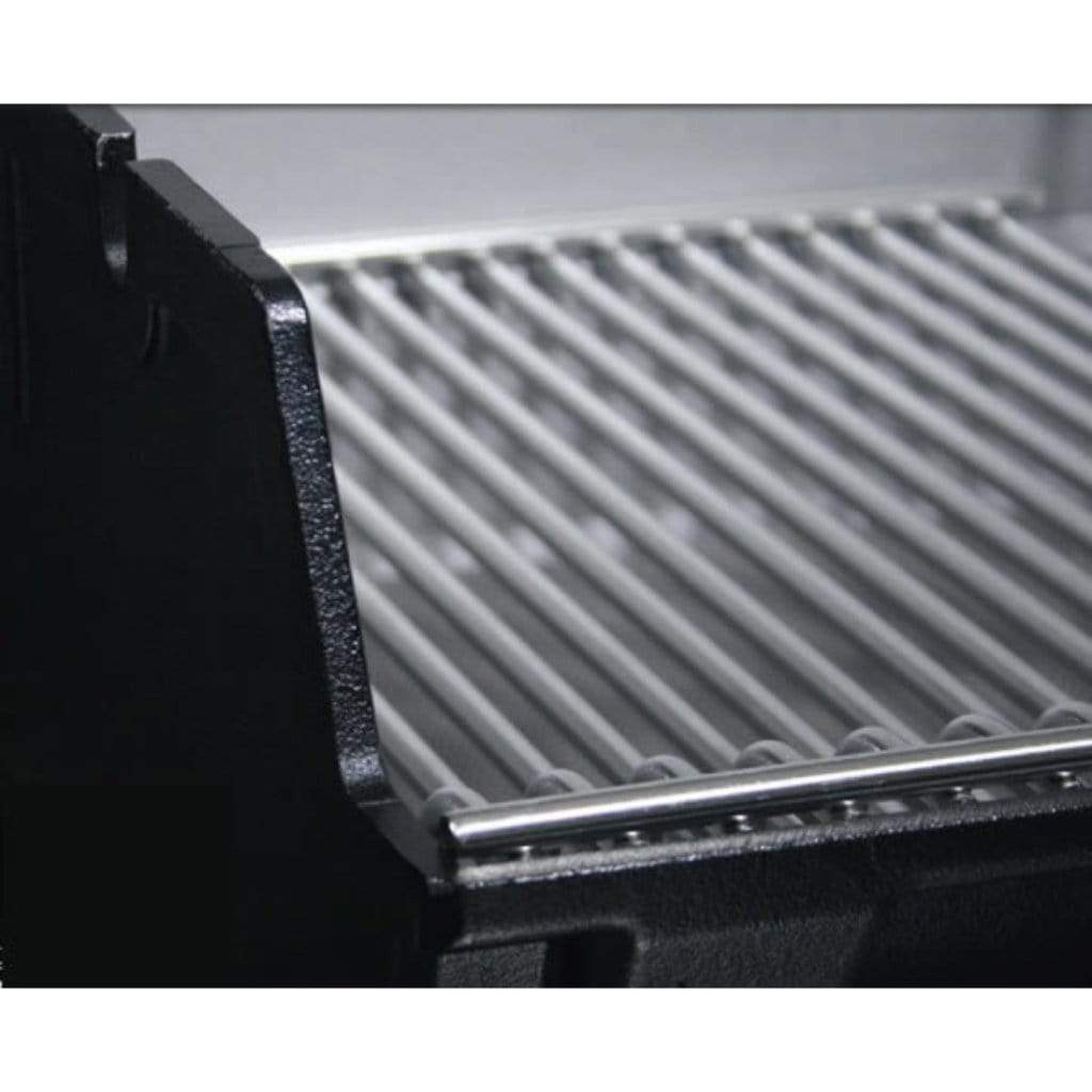

- Cooking Grate Material: Adjustable Stainless Steel Rods
- Burner Shape/Material: "8" Shaped Stainless Steel Bowtie Burner
- Flame Tamer Material: Ceramic Briquettes With Briquette Grate
- Grill Body Material: Cast Aluminum
- Ignition Type: Continuous Battery Powered Push Button
Technical Specifications:
| Fuel Type: | Natural Gas |
| Maximum BTU Output: | 40,000 |
| Total Grilling Area |
695 Sq. Inches |
| Color: | Black |
| Overall Dimension: | W 26 3/4" x D 18 3/4" x H 46 1/2" |
| Main Burner Configuration: | Conventional |
| Number of Main Burners: | 1 Burner |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Burner Material: | Stainless Steel |
| Grill Exterior Material: | Cast-Aluminum |
P3PK6N Series includes:
- P3X Grill Head with Ceramic Briquets
- Stainless Steel Patio Post

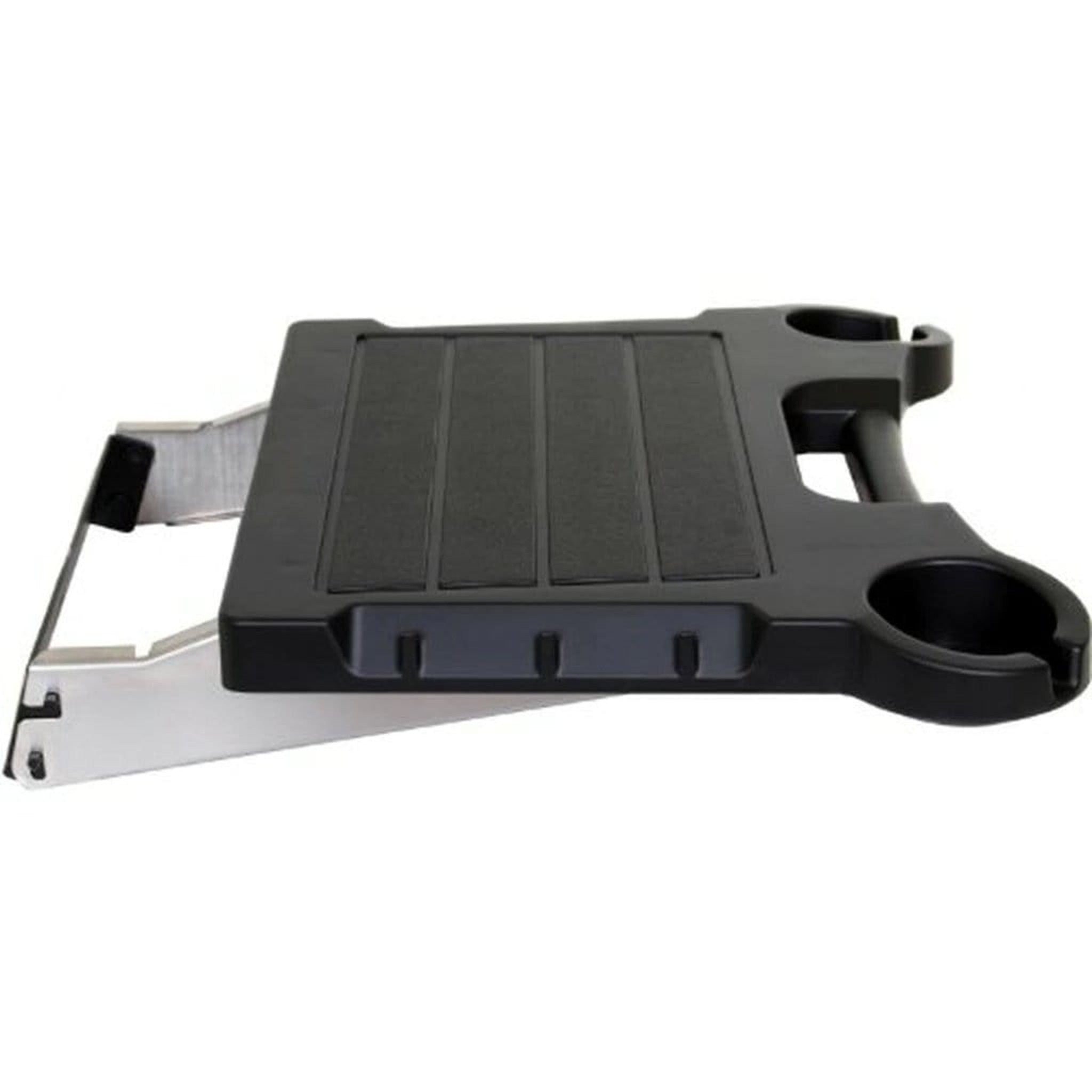

- One SKFB2 Side Shelf with Stainless Steel Brackets
- Two stainless Steel Rod Cooking Grids 3-Level Adjustable (695 Sq. In. Of total cooking area)
- Stainless Steel Folding Retrack-A-Rack
- Stainless Steel Bowtie Burner (40,000 Btu)
- Electronic Ignition
- Tall lid for smoking Turkey or Roast
- Stainless Steel Lid Prop
BROILMASTER WARRANTY |
|
|
LIMITED LIFETIME Against Rust-through |
Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
|
10 YEARS Against Rust-through |
Stainless Steel Burners for H-Series and R3B |
|
5 YEARS Against Rust-through |
Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
|
2 YEARS Against Rust-through |
Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
|
1 YEAR Against Rust-through |
Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Downloads:
- P3PK7N Owners Manual
- Broilmaster Brochure
- Post Owner's Manual
- Solid Surface Front Shelf Kit Owner's Manual
- Solid Surface Drop-Down Shelf Kit Owner's Manual
- Flare Buster Flavor Enhancer Owner's Manual
Broilmaster Assembly Video:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
