Description

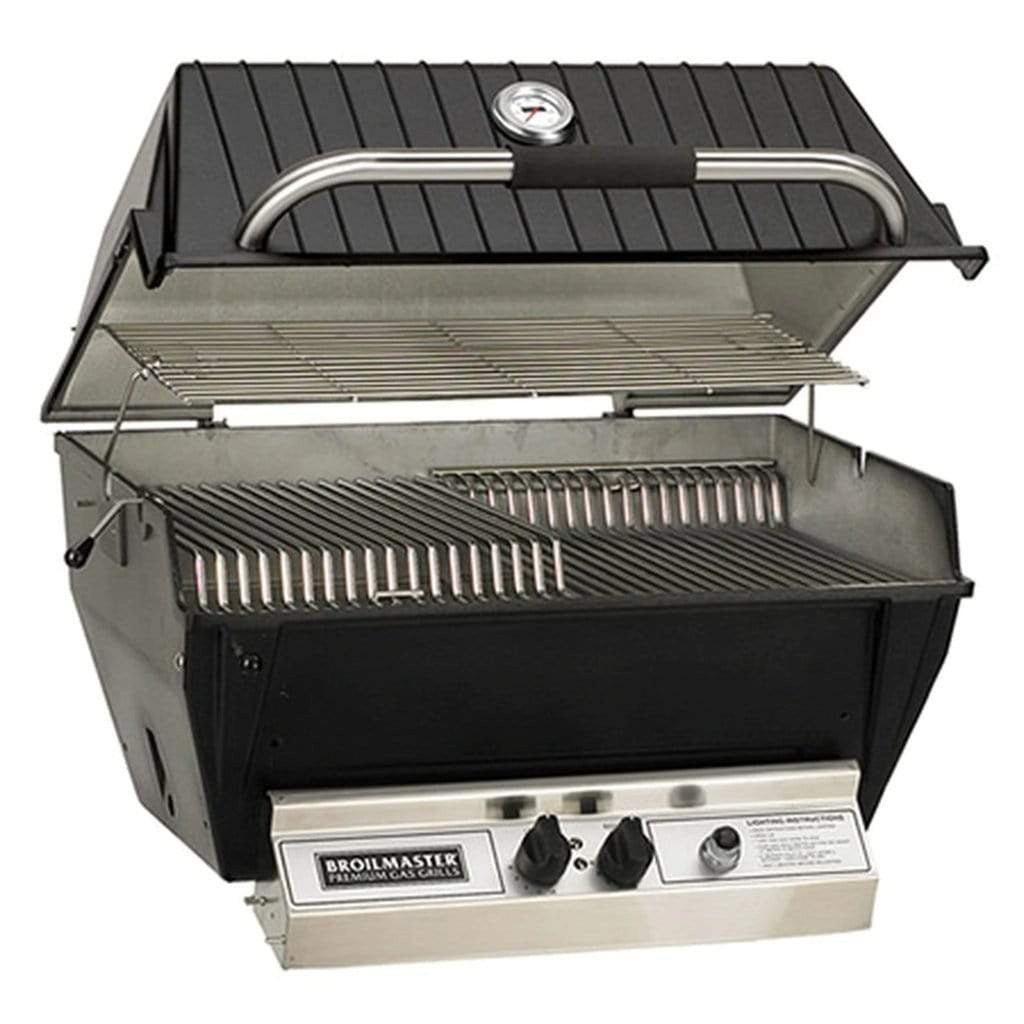

The Broilmaster P3SX Super Premium Built-In Gas Grill is engineered for serious grilling performance and long-term durability. With a robust cast aluminum exterior and 40,000 BTUs of power, this grill delivers exceptional heat distribution and retention for consistent cooking results.
Its standout feature is the stainless steel bow tie burner, which evenly spreads heat across the entire cooking surface. The multi-level stainless steel cooking grids give you versatility for direct or indirect cooking, while the stainless control panel and folding Retract-A-Rack add a polished, functional touch.
Designed to fit all Broilmaster mounting options, the P3SX is a versatile addition to any outdoor kitchen setup. Whether fueled by natural gas or propane, it offers 695 square inches of cooking area—ample space for entertaining and serious barbecue enthusiasts.
Standard Features:
|
|
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
 |
Stainless Steel Bow Tie Burner Evenly Distributes Heat Across the Cooking Area |
 |
Multi-Level Stainless Steel Cooking Grids Provide Control Over Food Distance To The Flame |
 |
Stainless Steel Smoker Shutter Converts your Broilmaster Grill to an Indirect Cooking System |
 |
Stainless Steel Griddle Allows you to Cook Bacon, Eggs, Cookies, and More |
 |
Stainless Steel Folding Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
 |
Flare Buster Ceramic Flavor Enhancers Protect The Burner From Any Food Drippings To Reduce Flare-Ups |
 |
Adjustable Lid Stop Lifts Lid to Control Heat and Smoke |
 |
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Other Features:
- 695 Sq. In. of Total Cooking Area
- Heavy-Duty Cast Aluminum Construction
- 40,000 BTU
- Stainless Steel Bow Tie Burner
- Multi-level Stainless Steel Cooking Grids
- Stainless Steel Control Panel
- Stainless Steel Folding Retract-A-Rack
- Fits all Broilmaster Mountings
Technical Specifications:
| Fuel Type: | Propane or Natural Gas |
| Maximum BTU Output: | 40,000 |
| Overall Size: | W:26 3/4" H:20 1/2" D:18 3/4" |
| Color: | Black |
| Item Weight: | 91 lbs. |
| Total Cooking Area: | 695 sq. in |
| Main Burner Configuration: | Conventional |
| Number of Main Burners: | 1 Burner |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Burner Material: | Stainless Steel |
| Grill Exterior Material: | Cast-Aluminum |
P3SX Built-In Includes:
- Two stainless Steel Rod Cooking Grids 3-Level Adjustable (695 Sq. In. Of total cooking area)
- Stainless Steel Folding Retrack-A-Rack
- Stainless Steel Bowtie Burner (40,000 Btu)
- Electronic Ignition
- Tall lid for smoking Turkey or Roast
- Stainless Steel Lid Prop
- Flare Buster Flavor Enhancer
- Stainless Steel Smoker Shutter
- Stainless Steel Griddle

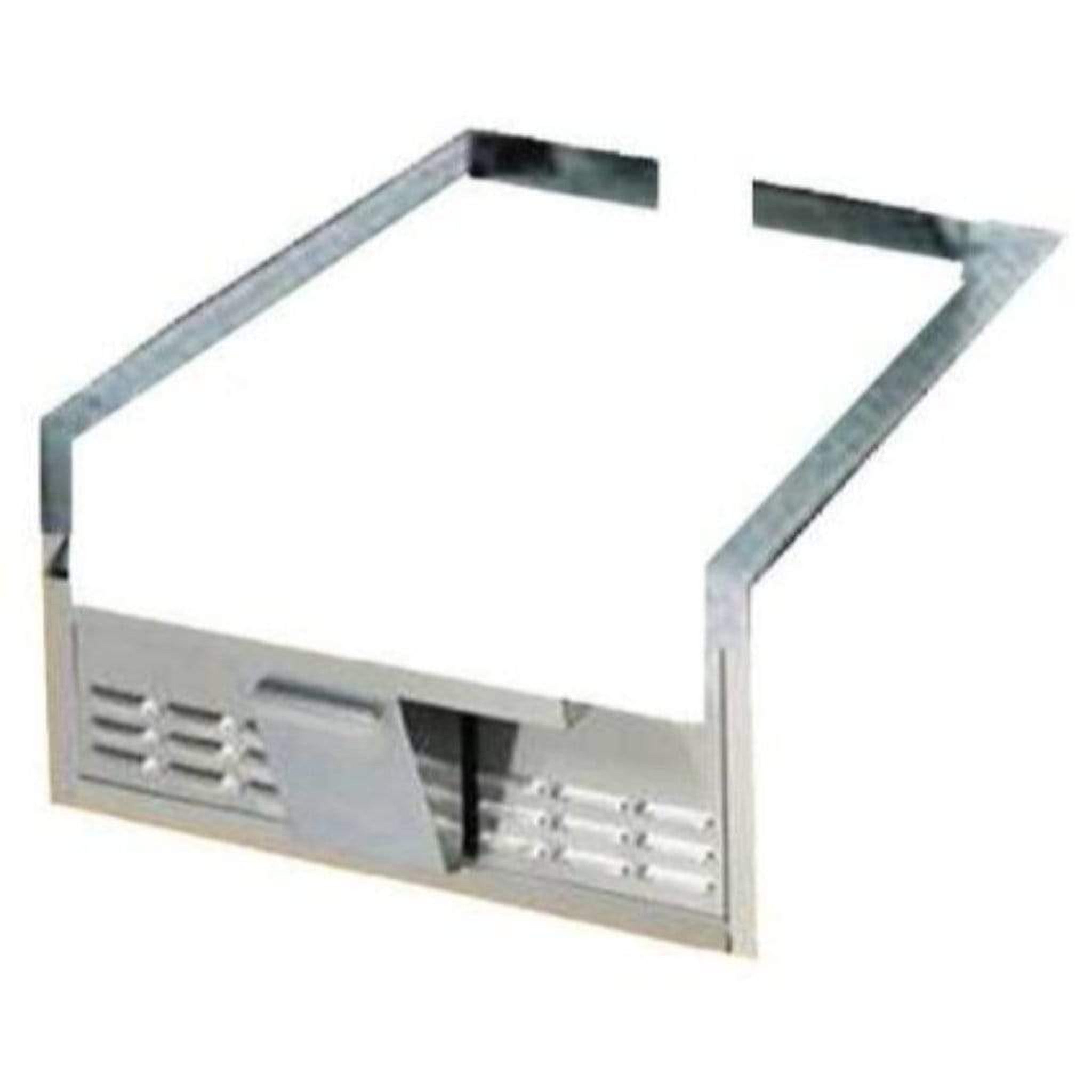

- Stainless Steel Built-In Kit
BROILMASTER WARRANTY |
|
| LIMITED LIFETIME Against Rust-through | Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
| 10 YEARS Against Rust-through | Stainless Steel Burners for H-Series and R3B |
| 5 YEARS Against Rust-through | Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
| 2 YEARS Against Rust-through | Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
| 1 YEAR Against Rust-through | Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Downloads:
- P3SX Owners Manual
- Built-In Owner's Manual
- Broilmaster Brochure
- Flare Buster Flavor Enhancer Owner's Manual
- Infrared Side Burner Owner's Manual
- Blue Flame Side Burner Owner's Manual
Broilmaster Assembly Video:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
