Description

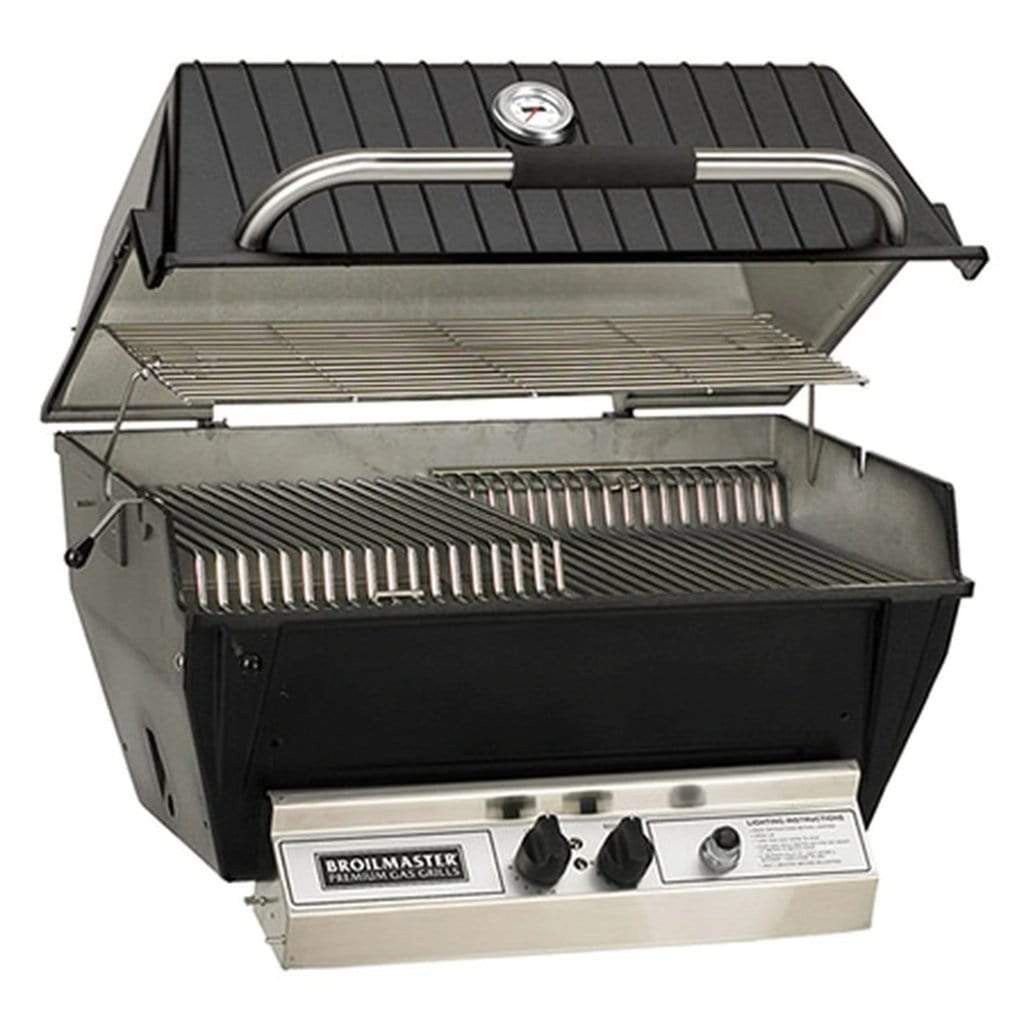

The Broilmaster P3XF Premium Built-In Gas Grill offers superior craftsmanship and performance for outdoor cooking enthusiasts. With a rugged cast aluminum body and stainless steel bowtie burner delivering 40,000 BTUs, it ensures even, efficient heat distribution across your entire grilling surface.
Equipped with multi-level stainless steel cooking grids and a stainless steel folding retract-a-rack, this built-in model is perfect for custom outdoor kitchen setups. The stainless steel control panel adds a polished, durable touch to the grill's professional-grade design.
Compatible with both propane and natural gas, the P3XF delivers reliable ignition, long-lasting performance, and the flexibility to handle everything from casual meals to gourmet feasts in your backyard oasis.
Standard Features:
|
|
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
 |
Stainless Steel Bow Tie Burner Evenly Distributes Heat Across the Cooking Area |
 |
Multi-Level Stainless Steel Cooking Grids Provide Control Over Food Distance To The Flame |
 |
Stainless Steel Folding Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
 |
Flare Buster Ceramic Flavor Enhancers Protect The Burner From Any Food Drippings To Reduce Flare-Ups |
 |
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Other Features:
- 695 Sq. In. of Total Cooking Area
- Heavy-Duty Cast Aluminum Construction
- 40,000 BTU
- Stainless Steel Bow Tie Burner
- Multi-level Stainless Steel Cooking Grids
- Stainless Steel Control Panel
- Stainless Steel Folding Retract-A-Rack
- Fits all Broilmaster Mountings
Technical Specifications:
| Fuel Type: | Propane or Natural Gas |
| Maximum BTU Output: | 40,000 |
| Overall Head Size: | W:26 3/4" H:20 1/2" D:18 3/4" |
| Color: | Black |
| Item Weight: | 77 lbs. |
| Cooking Area: | 695 sq. in |
| Main Burner Configuration: | Conventional |
| Number of Main Burners: | 1 Burner |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Burner Material: | Stainless Steel |
| Grill Exterior Material: | Cast-Aluminum |
P3XF Built-In includes:
- Two stainless Steel Rod Cooking Grids 3-Level Adjustable (695 Sq. In. Of total cooking area)
- Stainless Steel Folding Retrack-A-Rack
- Stainless Steel Bowtie Burner (40,000 Btu)
- Electronic Ignition
- Tall lid for smoking Turkey or Roast
- Stainless Steel Lid Prop
- Flare Buster Flavor Enhancer

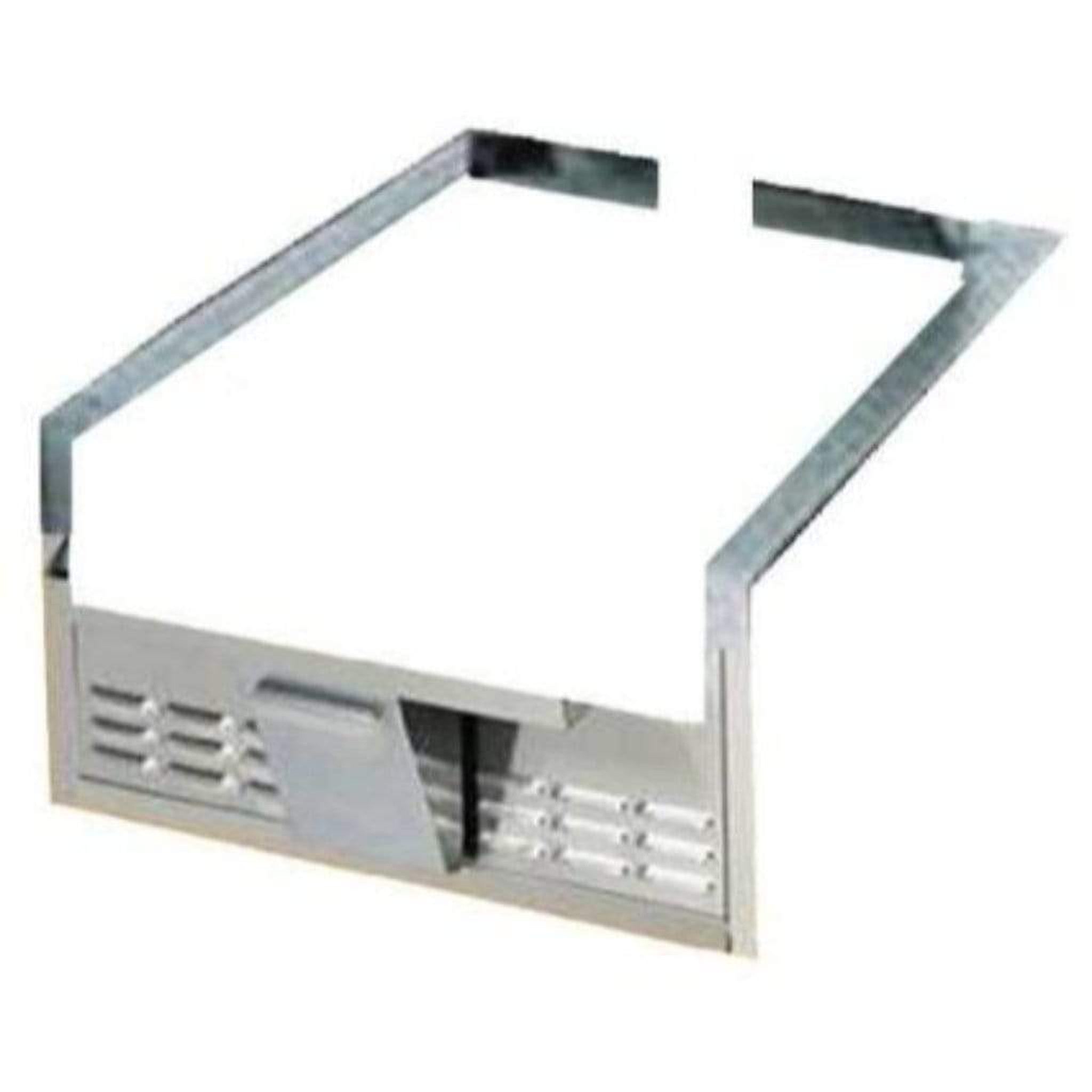

- Stainless Steel Built-In Kit
BROILMASTER WARRANTY |
|
| LIMITED LIFETIME Against Rust-through | Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
| 10 YEARS Against Rust-through | Stainless Steel Burners for H-Series and R3B |
| 5 YEARS Against Rust-through | Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
| 2 YEARS Against Rust-through | Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
| 1 YEAR Against Rust-through | Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Downloads:
- P3XF Owners Manual
- Built-In Owner's Manual
- Broilmaster Brochure
- Flare Buster Flavor Enhancer Owner's Manual
- Infrared Side Burner Owner's Manual
- Blue Flame Side Burner Owner's Manual
Broilmaster Assembly Video:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
