Description

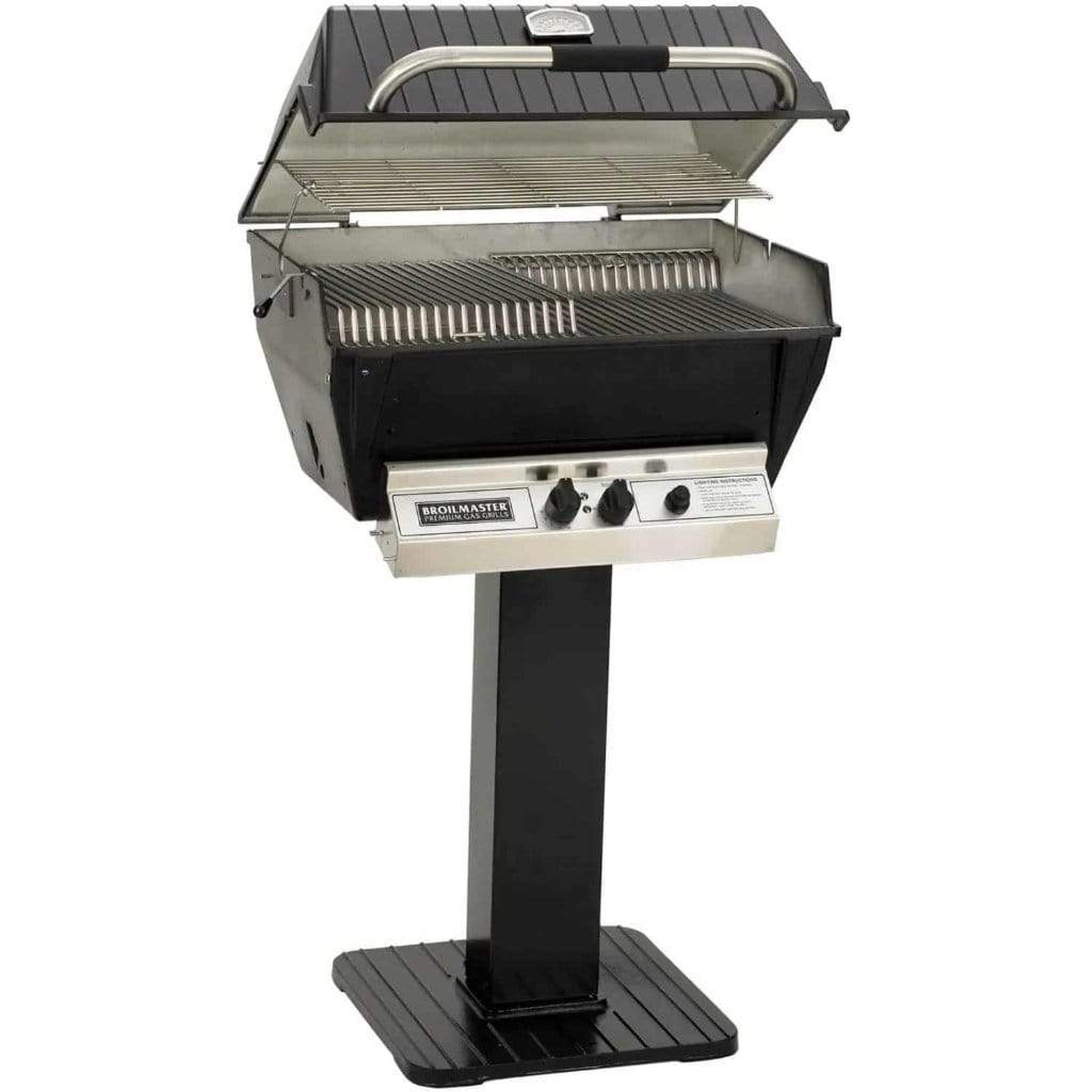

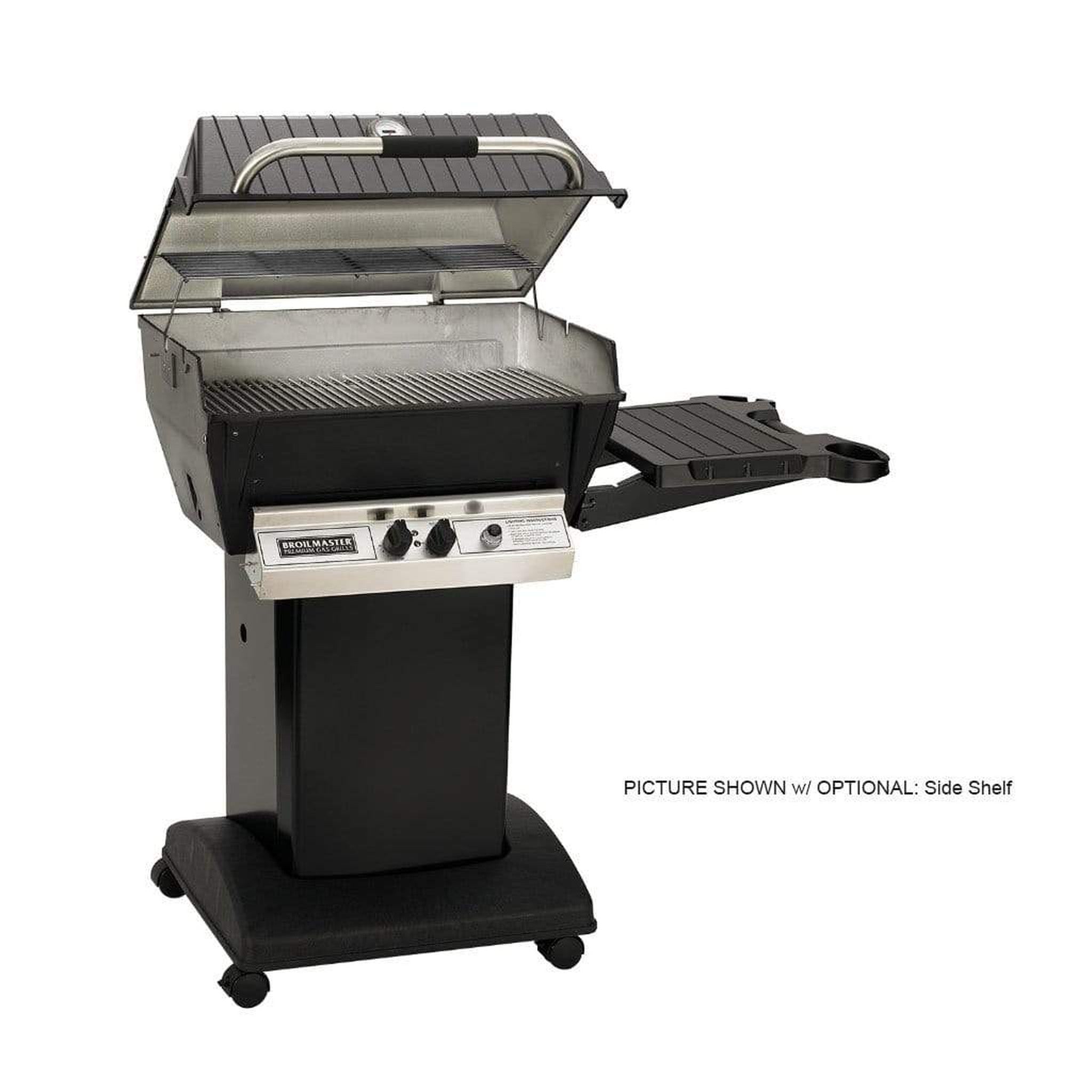

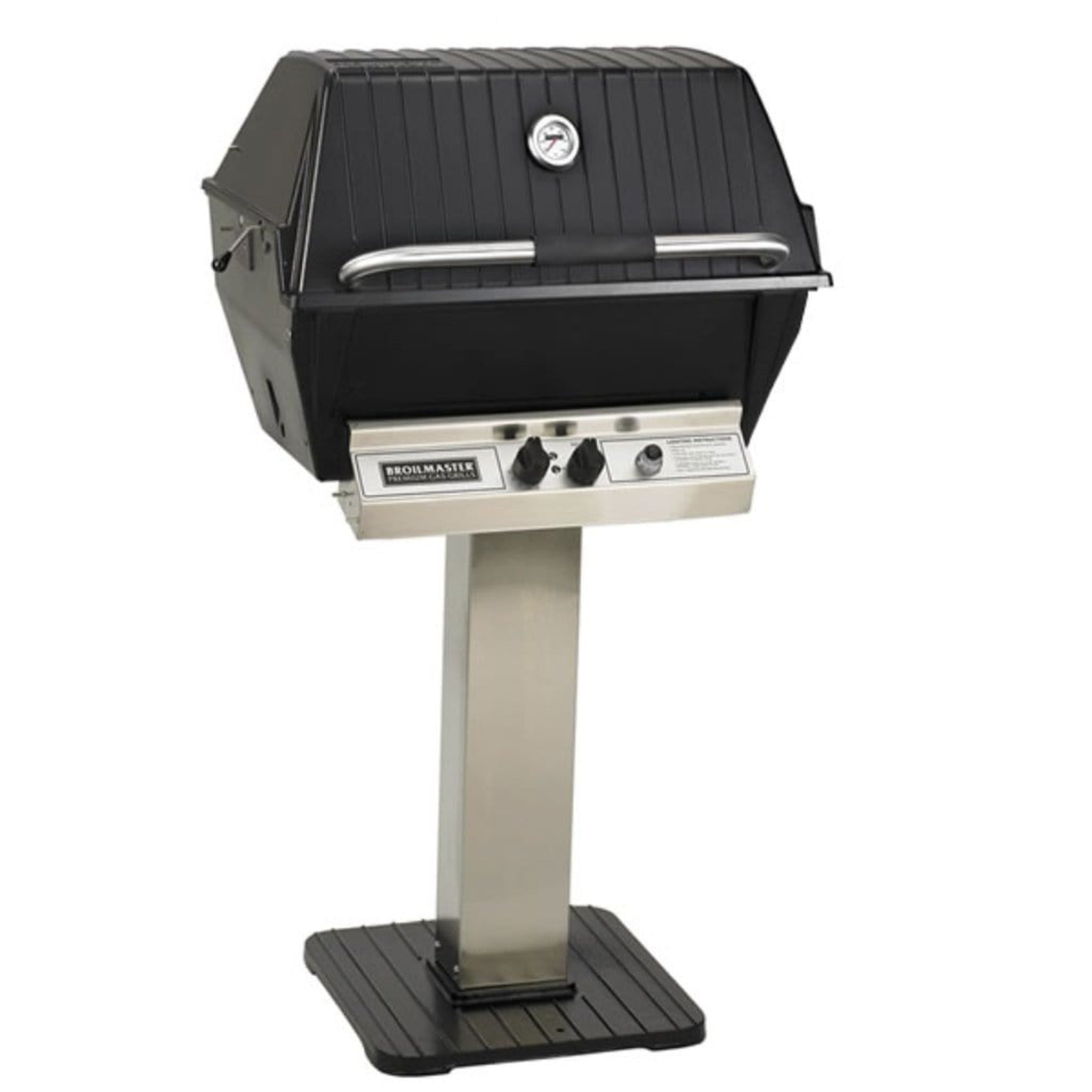

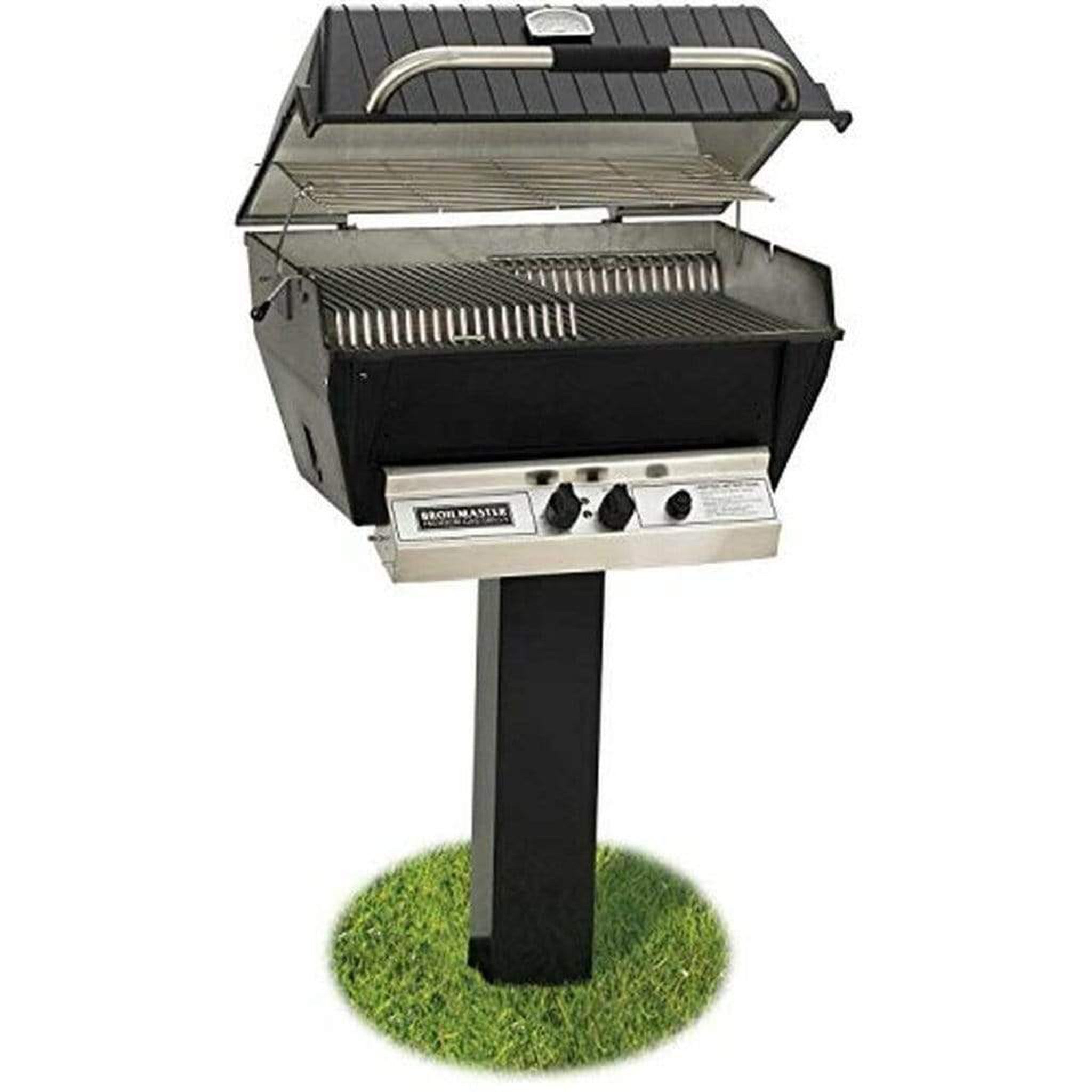

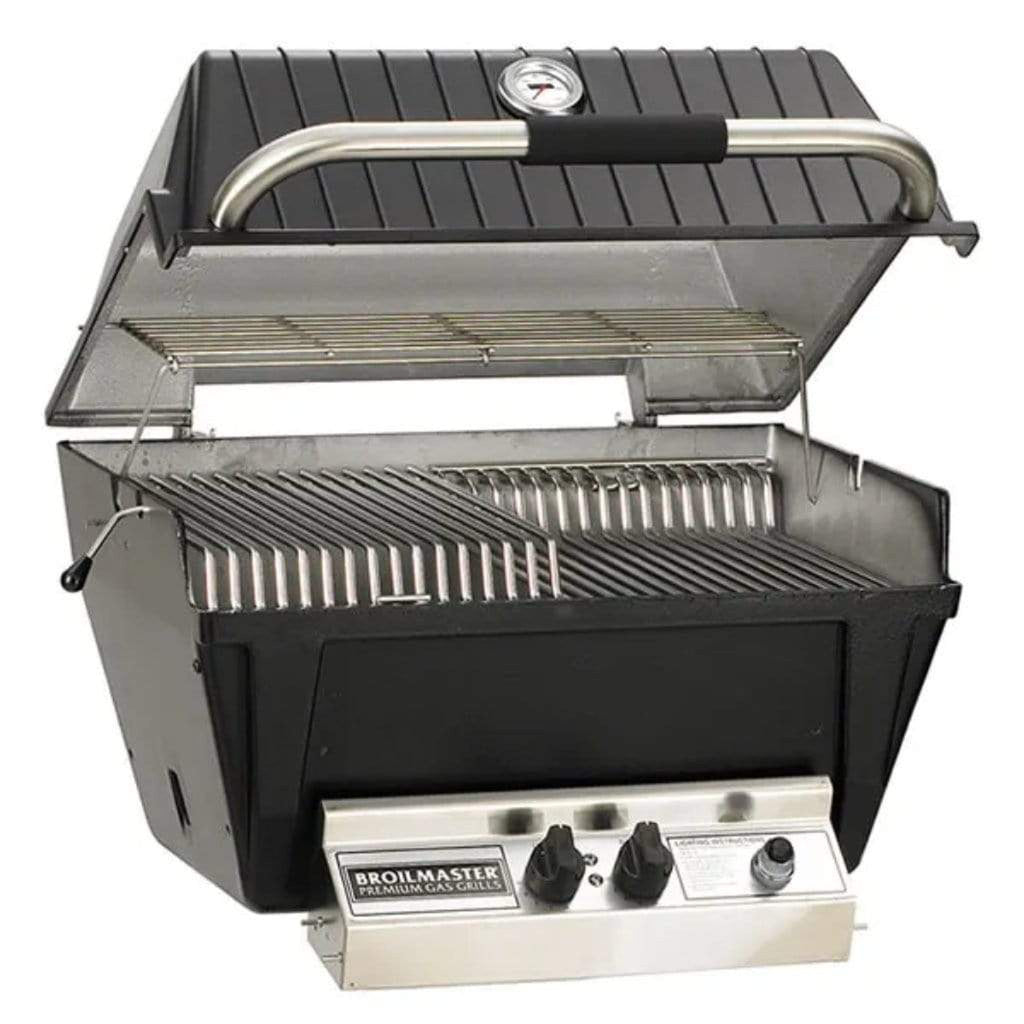

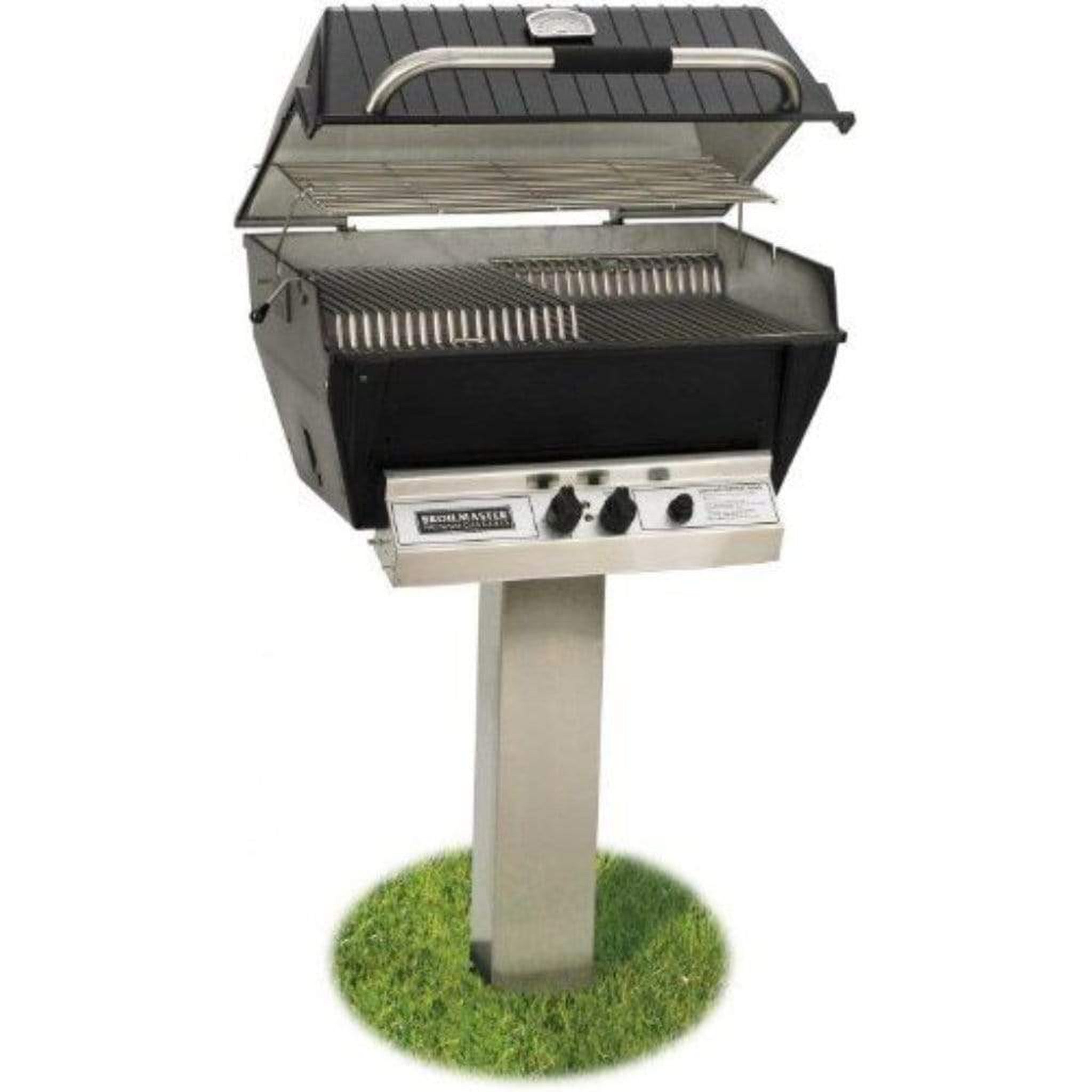

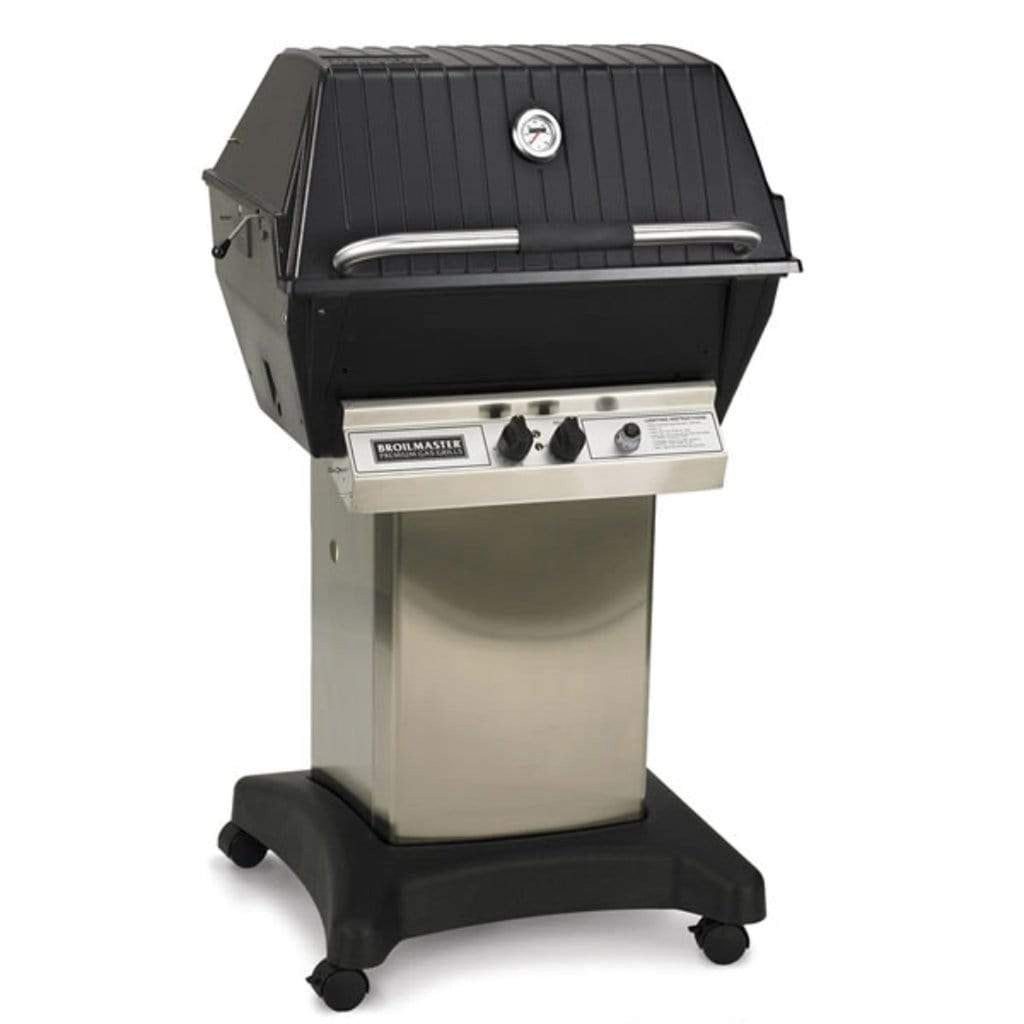

The Broilmaster P4X Premium Gas Grill blends traditional craftsmanship with modern grilling technology in a compact and versatile design. Ideal for smaller spaces, it features a 24-inch cast aluminum grill head that resists rust and retains heat efficiently for consistent cooking performance.
A stainless steel bowtie burner delivers 40,000 BTUs of power, evenly heating the 473 square inches of total cooking area. The stainless steel folding Retract-A-Rack and warming rack add flexibility for preparing multiple dishes at once.
Designed to fit all Broilmaster mounting options, the P4X includes a stainless steel control panel, electronic ignition for easy startups, and stainless steel cooking grids that ensure durability and flavor-enhancing performance. Perfect for propane or natural gas setups, this grill offers premium quality in a streamlined package.
Standard Features:
 |
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
 |
Stainless Steel Bow Tie Burner Evenly Distributes Heat Across the Cooking Area |
 |
Multi-Level Stainless Steel Cooking Grids Provide Control Over Food Distance To The Flame |
 |
Stainless Steel Folding Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
 |
Char-master Briquets Converts Your Broilmaster Grill to an Indirect Cooking System |
 |
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Other Features:
- Propane or Natural Gas
- Size: 24 Inches(P4XN, P4X)
- Color: Black(P4XN, P4X)
- Cast aluminum grill head
- Stainless steel control panel
- Stainless steel bow tie burner
- Fits all Broilmaster mountings
- Stainless steel folding retract-a-rack
- Main Burner BTUs: 40,000
Technical Specifications:
| Fuel Type: | Propane or Natural Gas |
| Maximum BTU Output: | 40,000 |
| Total Grilling Area |
473 Sq. Inches |
| Color: | Black |
| Item Weight: | 63 lbs. |
| Overall Dimension: | W 24" x H 19" x D 16.25" |
| Main Burner Configuration: | Conventional |
| Number of Main Burners: | 1 Burner |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Burner Material: | Stainless Steel |
| Grill Exterior Material: | Cast-Aluminum |
P4X Series Includes:
- Two stainless Steel Rod Cooking Grids- 2-Level Adjustable (473 Sq. In. Of total cooking area)
- Stainless Steel Folding Retrack-A-Rack
- Stainless Steel Bowtie Burner (40,000 Btu)
- Electronic Ignition
- Char-master Briquets
Requires:
- Cart or Post
BROILMASTER WARRANTY |
|
|
LIMITED LIFETIME Against Rust-through |
Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
|
10 YEARS Against Rust-through |
Stainless Steel Burners for H-Series and R3B |
|
5 YEARS Against Rust-through |
Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
|
2 YEARS Against Rust-through |
Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
|
1 YEAR Against Rust-through |
Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Downloads:
- P4X Owners Manual
- Broilmaster Brochure
- Post Owner's Manual
- Cart With Door Owner's Manual
- Cart With Base Owner's Manual
- Solid Surface Front Shelf Kit Owner's Manual
- Solid Surface Drop-Down Shelf Kit Owner's Manual
- Flare Buster Flavor Enhancer Owner's Manual
Broilmaster Assembly Video:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
