Description

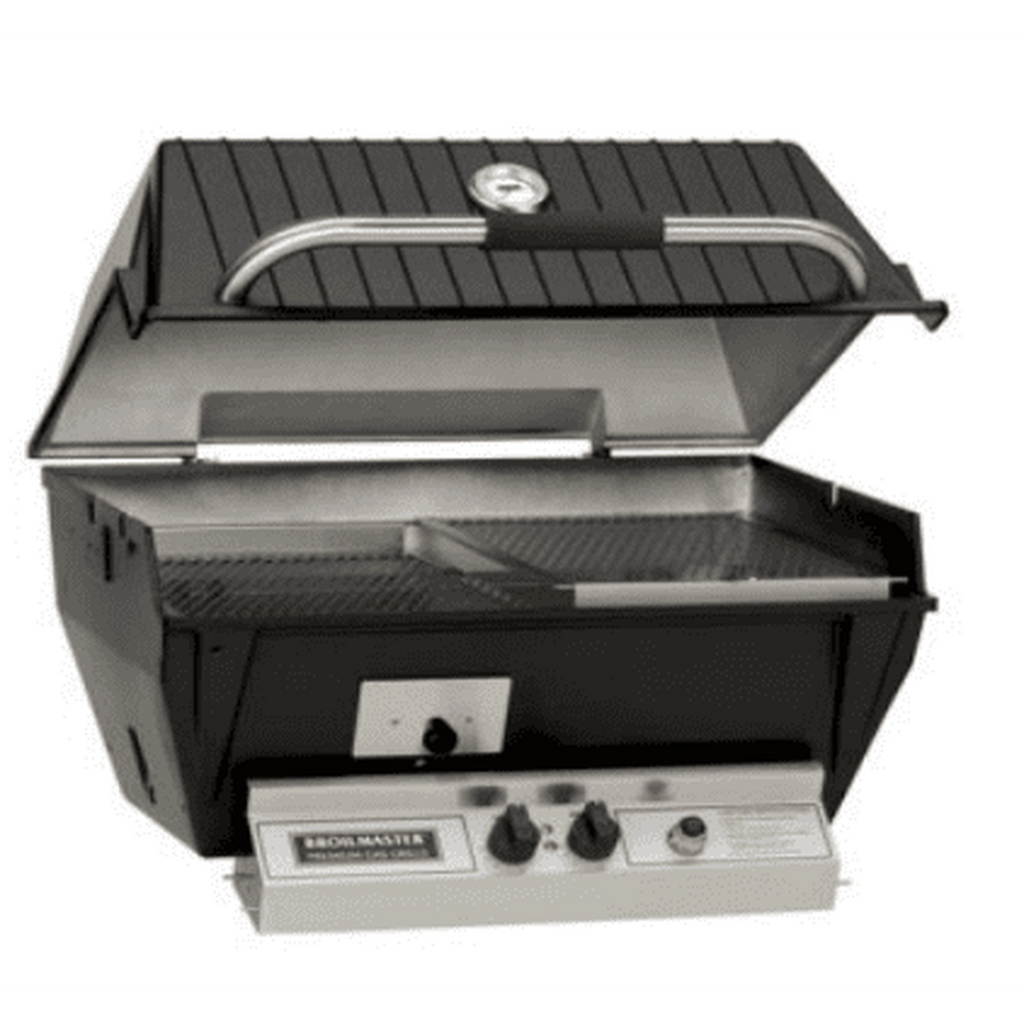

The Broilmaster Q3X Built-In Slow Cooker Grill is designed for low-and-slow barbecue lovers who want precise control over their cooking. With a unique stainless steel oval burner, this grill offers an adjustable heat range from 7,500 to 26,500 BTUs, ideal for slow roasting, smoking, or traditional grilling.
Featuring a built-in smoker tray for wood chips or pellets, it allows you to infuse authentic smoky flavor into your food. A full-area stainless steel drip pan with a drain valve and an external drip bucket ensure easy cleanup, while the heavy-duty cast aluminum construction offers lasting performance in any outdoor setting.
Inside, the multi-level stainless steel cooking grids provide versatility for both direct and indirect heat setups. Compatible with both natural gas and propane, the Q3X offers a generous cooking area and advanced features to make every cookout a flavorful success.
Standard Features:
|
|
Heavy-Duty Cast Aluminum Construction |
|
|
Multi Level Stainless Steel Cooking Grids |
|
|
Stainless Steel Oval BurnerCooks More Than 50 Hours On One Tank On Low |
|
|
Smoker Tray
|
|
|
Full Are Drip Pan with Drain Valve
|
|
|
External Drip Bucket
|
Other Features:
- 26,500 BTU to 7,500 BTU
- 420-695 Sq. In. of Total Cooking Area
- Built-in Smoker Tray for Wood Chips or Pellets
- External Drip Bucket
- Full-area, Stainless Steel Drip Pan with Drain Valve
- Heavy Duty Cast Aluminum Construction
- Multi-level Stainless Steel Cooking Grids
- Stainless Steel Oval Burner
Technical Specifications:
| Fuel Type: | Propane or Natural Gas |
| Maximum BTU Output: | 26,000 |
| Minimum BTU Output: | 7,500 |
| Total Grilling Area | 420-695 Sq. Inches |
| Color: | Black |
| Item Weight: | 87 lbs. |
| Overall Dimension: | W 26 3/4" x D 18 3/4" x H 20 1/2" |
| Main Burner Configuration: | Conventional |
| Number of Main Burners: | 1 Burner |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Burner Material: | Stainless Steel |
| Material: | Cast Aluminum |
Q3X Built-In Includes:
- Two Stainless Steel Diamond Cooking Grids - 2-Level Adjustable (420-695 Sq. In. of Total Cooking Area)
- Stainless Steel Drip Pan with Drain Valve and Bucket
- Stainless Steel Slide-In Smoker Tral for Wood Chips or Pellets
- Stainless Steel Oval Burner - 26,500 to 7,500 Btu for low, slow cooking
- Electronic Ignition
- Stainless Steel Lid Prop

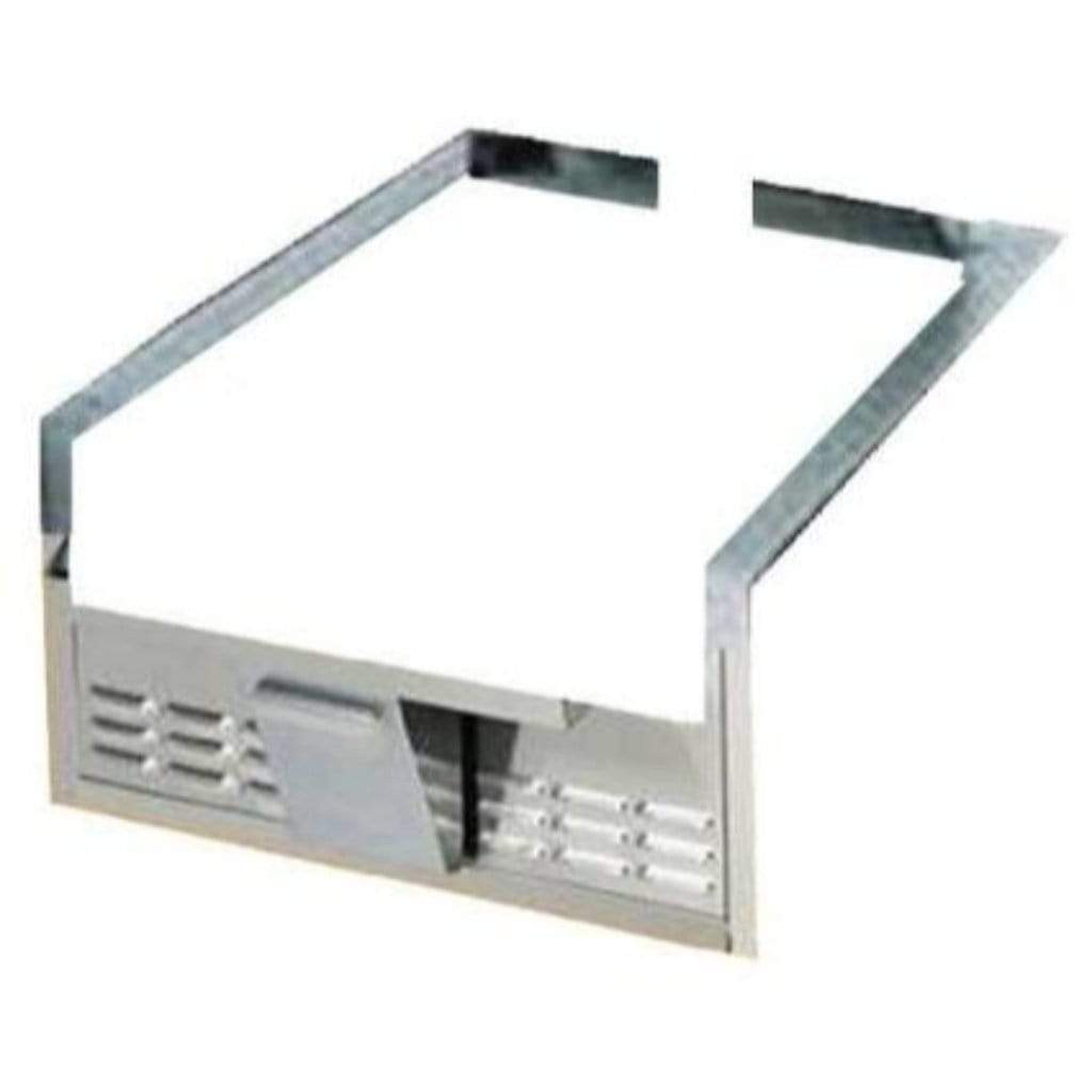

- Stainless Steel Built-In Kit
BROILMASTER WARRANTY |
|
| LIMITED LIFETIME Against Rust-through | Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
| 10 YEARS Against Rust-through | Stainless Steel Burners for H-Series and R3B |
| 5 YEARS Against Rust-through | Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
| 2 YEARS Against Rust-through | Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
| 1 YEAR Against Rust-through | Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Downloads:
- Q3X Slow Cooker Grill Manual
- Built-In Owner's Manual
- Broilmaster Brochure
- Flare Buster Flavor Enhancer Owner's Manual
- Infrared Side Burner Owner's Manual
- Blue Flame Side Burner Owner's Manual
Broilmaster Assembly Video:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
