Description

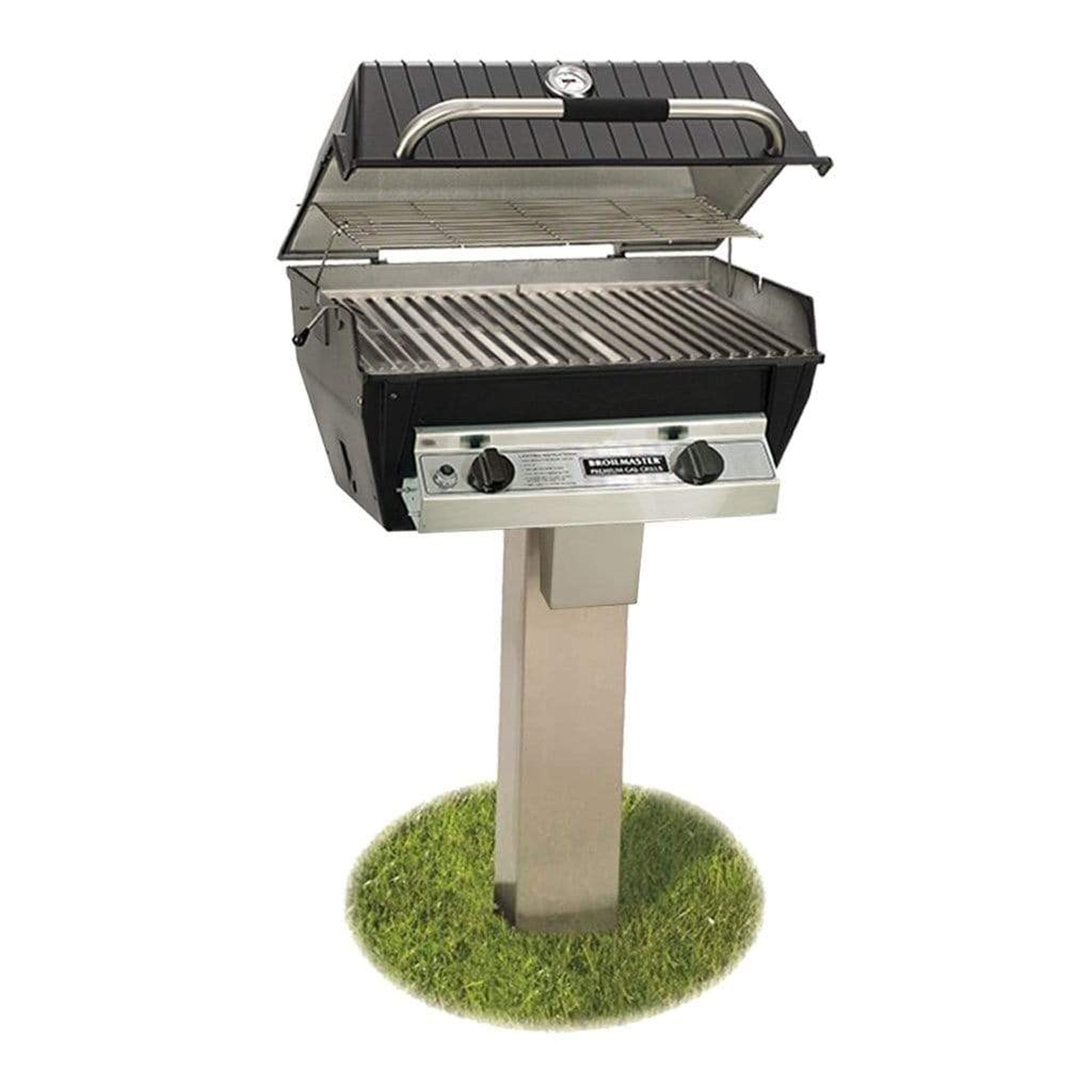

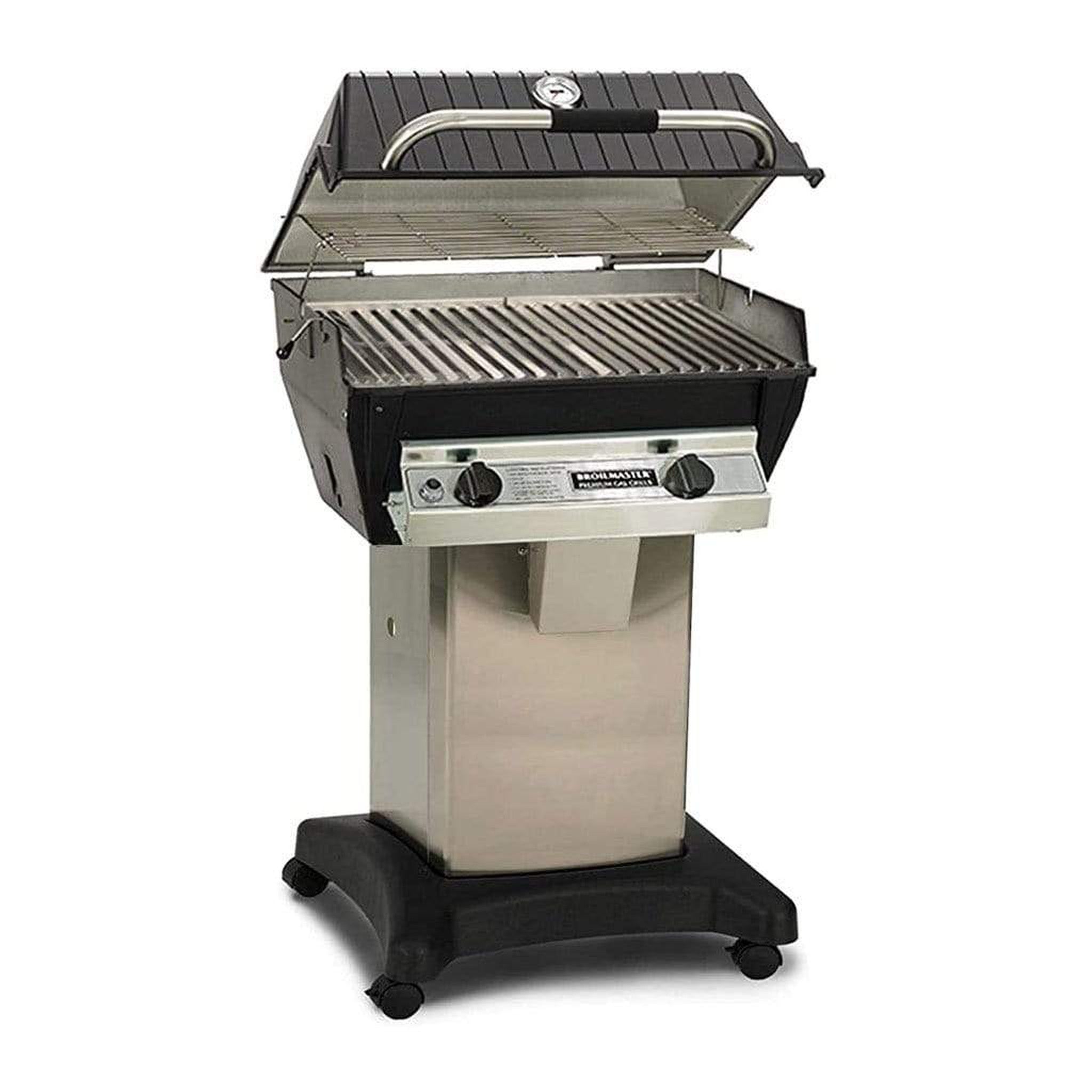

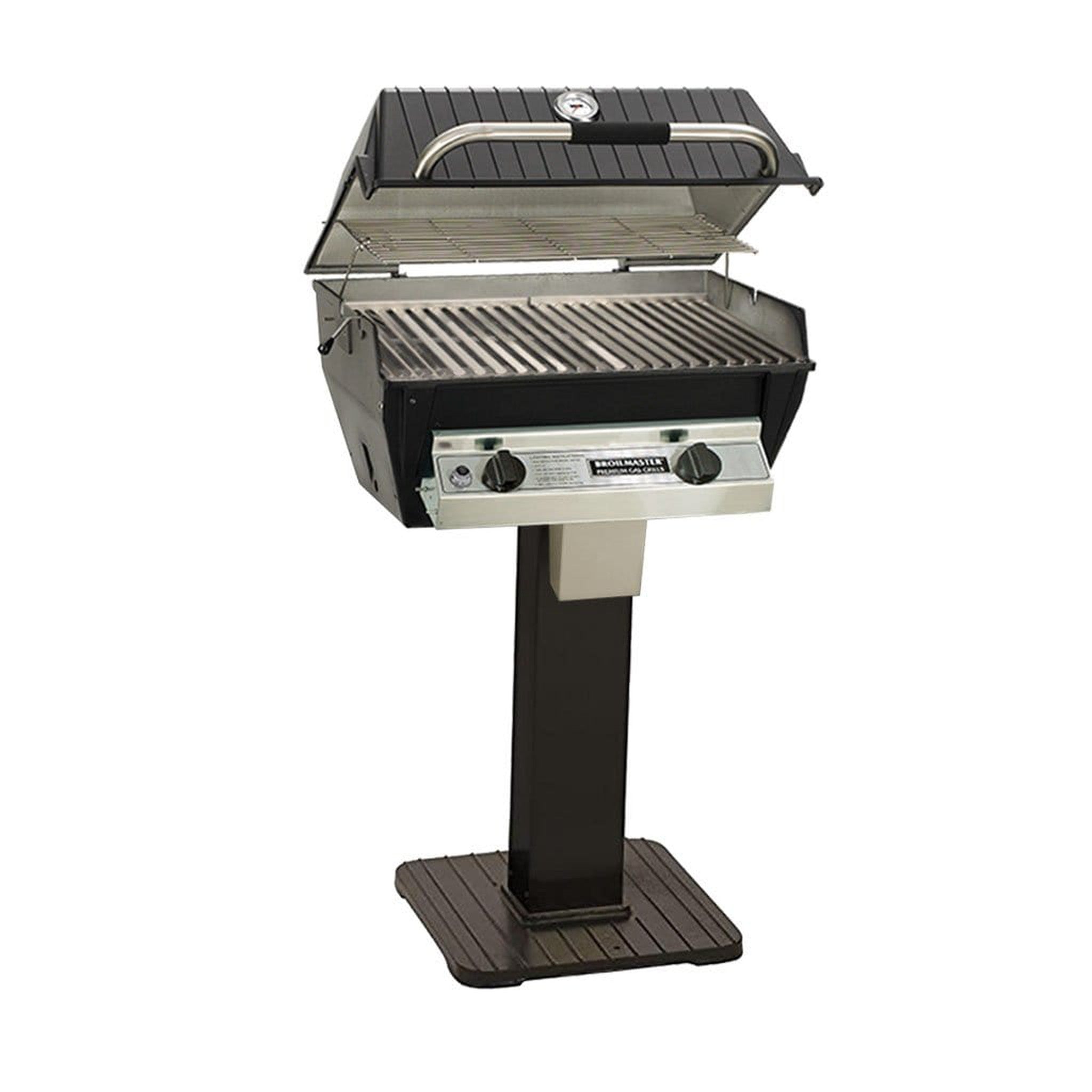

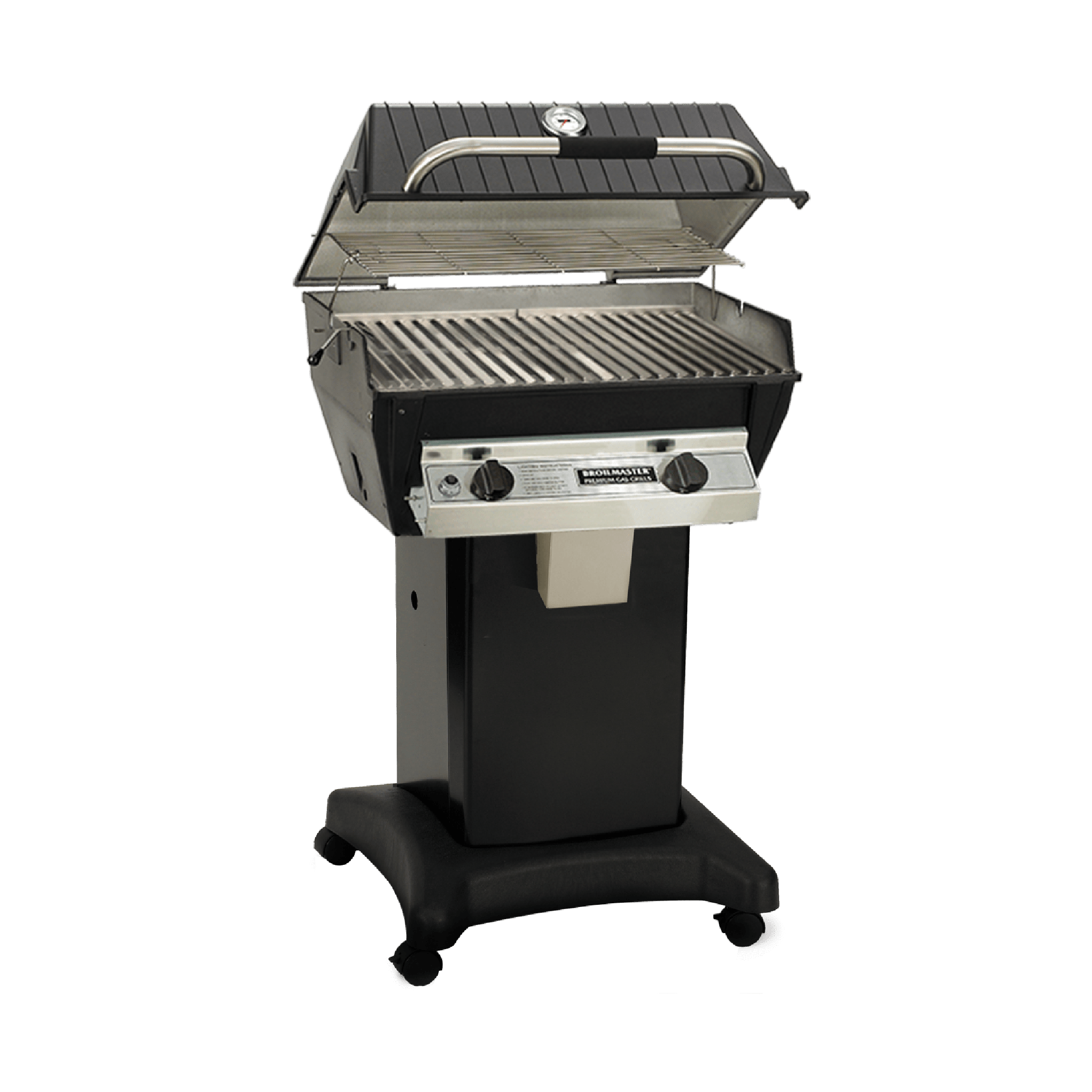

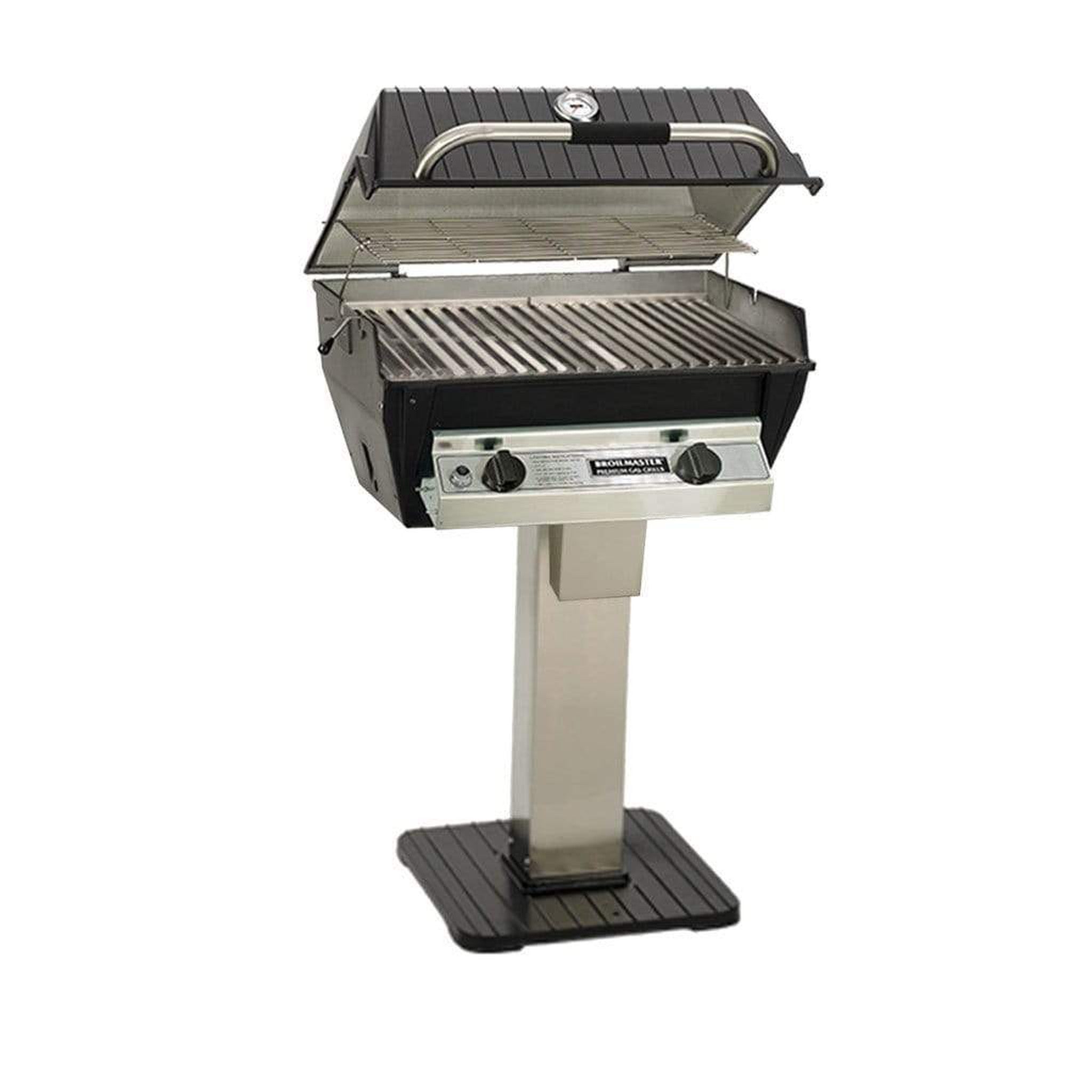

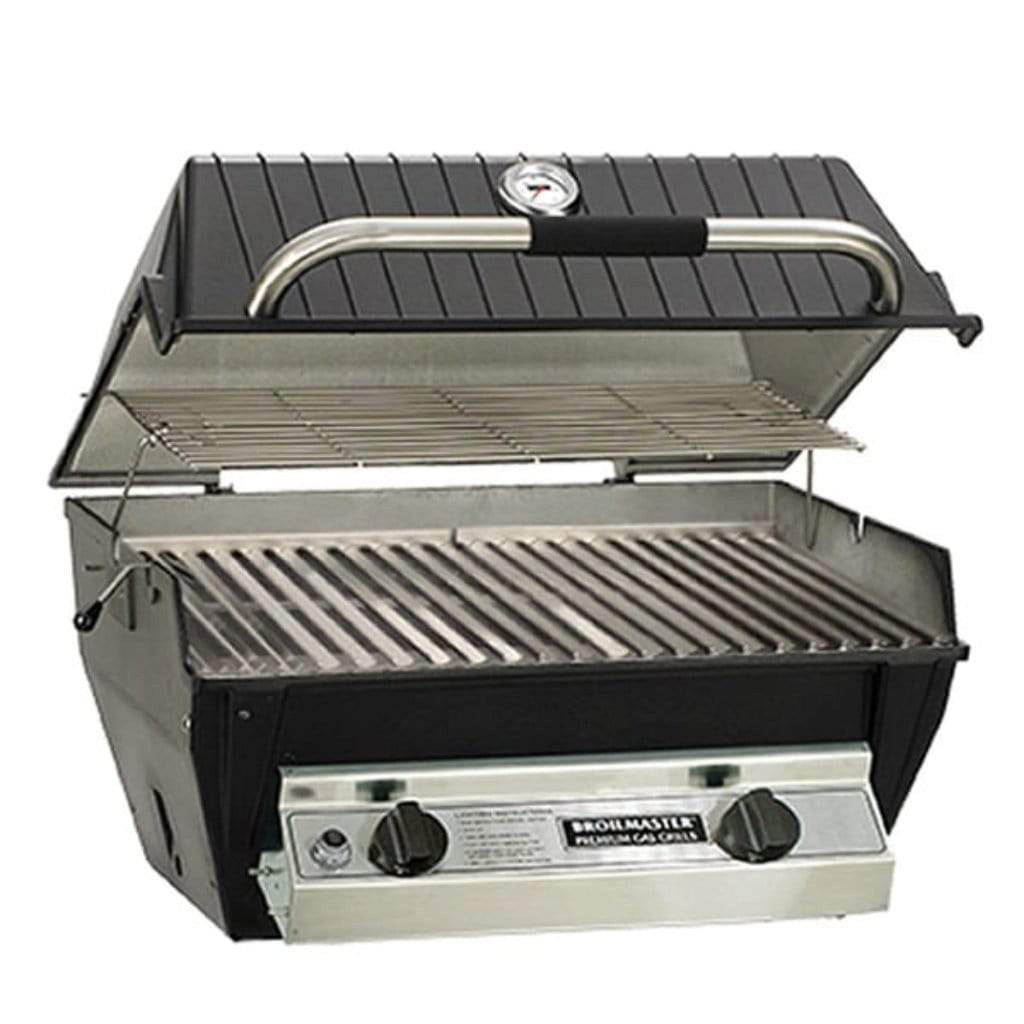

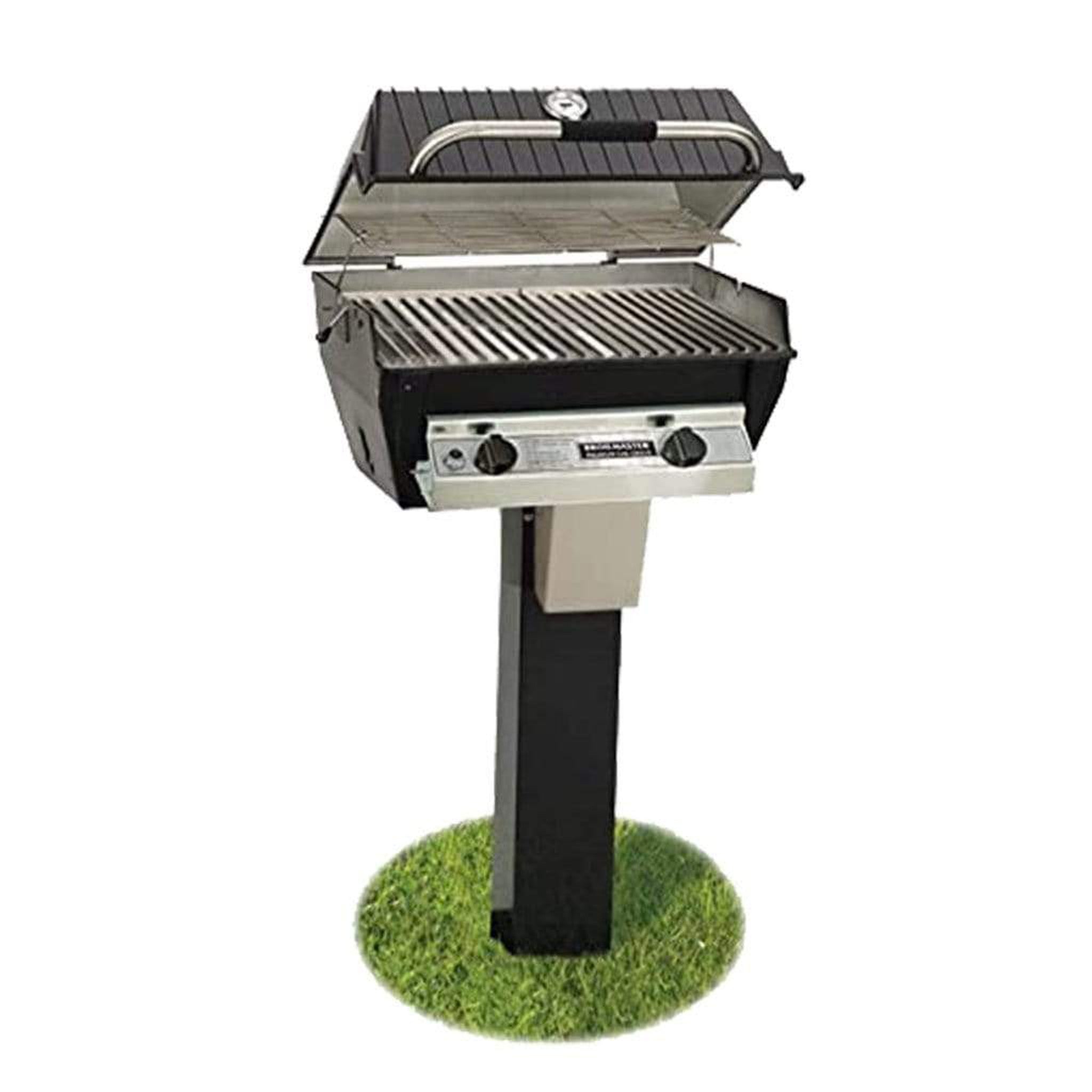

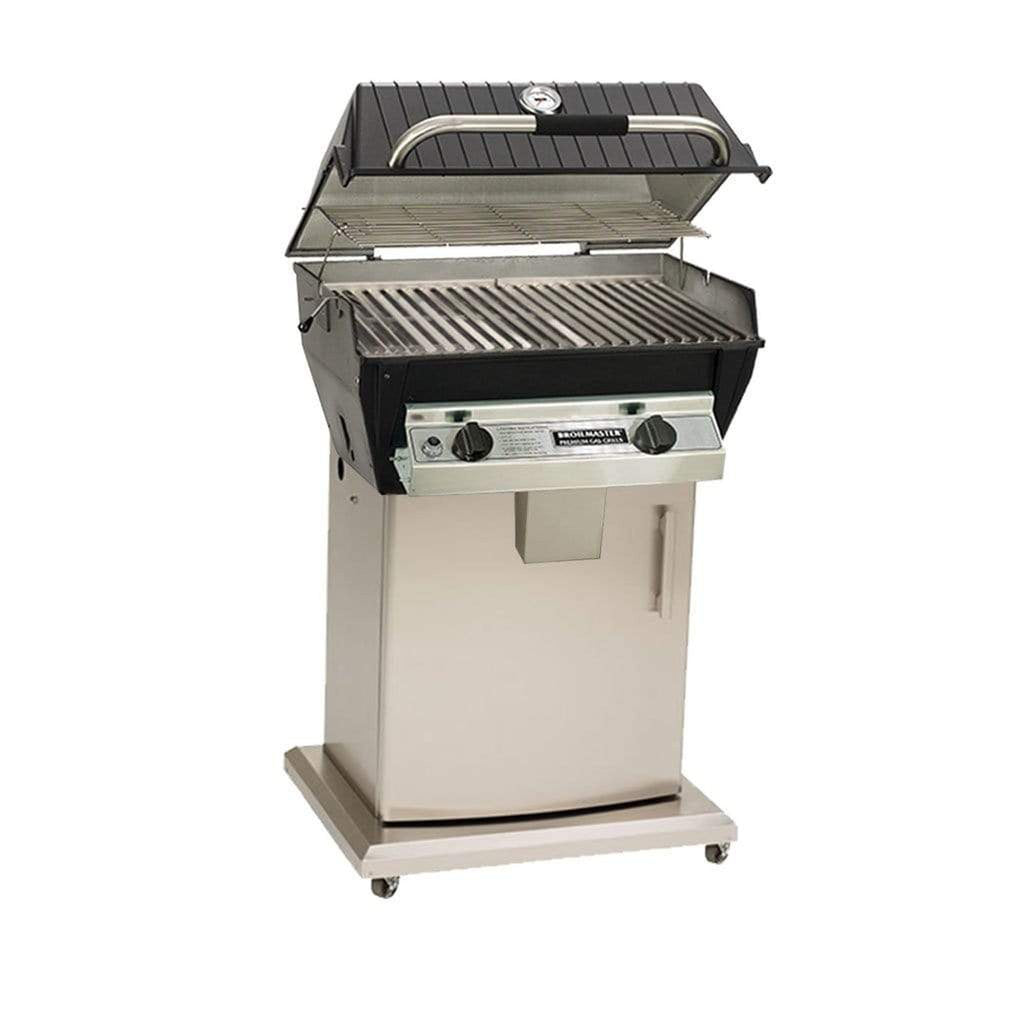

The Broilmaster R3 Infrared Grill offers high-performance cooking with the precision and power of dual ceramic infrared burners. With a total of 40,000 BTUs and 695 square inches of cooking area, this grill is built for serious searing and consistent, radiant heat across every inch of the surface.
Its heavy-duty cast aluminum body ensures durability, while the stainless steel V-channel cooking grids efficiently manage grease runoff to reduce flare-ups. The integrated retract-a-rack and control panel, both in stainless steel, enhance functionality and add a polished finish to the grill’s design.
Whether fueled by propane or natural gas, the R3’s infrared technology delivers fast, even heating and exceptional temperature control. Ideal for those who demand steakhouse-quality results at home, this grill brings performance and longevity to any outdoor cooking space.
Standard Features:
|
|
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
 |
Stainless Steel V-Chanel Cooking Grids |
|
 |
Two Infrared Burners Provide Intense Heat For Perfect Searing |
 |
Stainless Steel Folding Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
 |
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Other Features:
- 40,000 BTU
- 695 Sq. In. of Total Cooking Area
- Heavy-Duty Cast Aluminum Construction
- Stainless Steel Control Panel
- Stainless Steel Retract-A-Rack
- Stainless Steel V-Channel Cooking Grids
- Two Infrared Burners
Technical Specifications:
| Fuel Type: | Propane or Natural Gas |
| Maximum BTU Output: | 40,000 |
| Total Grilling Area |
695 Sq. Inches |
| Color: | Black |
| Item Weight: | 81 lbs. |
| Overall Head Dimension: | W 26 3/4" x H 19" x D 18 3/4" |
| Main Burner Configuration: | Infrared |
| Number of Main Burners: | 2 Burner |
| Burner Material: | Ceramic |
| Ignition: | Electronic |
| Cooking Grid Material: | Stainless Steel |
| Warming Rack Material: | Stainless Steel |
| Grill Exterior Material: | Cast Aluminum |
R3 Includes:
- Two Stainless Steel V-Channel Cooking Grids (695 Sq. In. Of total cooking area)
- Electronic Ignition
- Stainless Steel Lip Prop
- (40,000 Btu)
- 2x Infrared Burner (R3)
- Propane and Natural
Requires:
- Cart or Post
BROILMASTER WARRANTY |
|
| LIMITED LIFETIME Against Rust-through | Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
| 10 YEARS Against Rust-through | Stainless Steel Burners for H-Series and R3B |
| 5 YEARS Against Rust-through | Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
| 2 YEARS Against Rust-through | Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
| 1 YEAR Against Rust-through | Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Downloads:
- R3 Infrared Grill Manual
- Broilmaster Brochure
- Post Owner's Manual
- Cart With Door Owner's Manual
- Cart With Base Owner's Manual
- Solid Surface Front Shelf Kit Owner's Manual
- Solid Surface Drop-Down Shelf Kit Owner's Manual
Broilmaster Assembly Video:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
