Description
Elevate your chimney's performance and safeguard your home with the DuraVent DuraPlus 30° Stainless Steel Elbow Kit. Crafted to meet the highest standards of quality and safety, this kit is a vital addition to any stove or fireplace setup.
With DuraPlus, you're investing in a chimney solution that prioritizes not only functionality but also safety. Its triple-wall construction ensures that the exterior remains cool to the touch, while the interior efficiently directs hot drafts, boosting stove efficiency. This innovative design not only protects your chimney but also safeguards your home against potential fire hazards.
Constructed with precision, DuraPlus features two insulating layers: a refractory blanket and an air space. Say goodbye to concerns about hot spots often associated with loose-fill insulation. In the unfortunate event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly, minimizing damage and ensuring your safety.
Benefits:
- Efficient Offset Solution: Use this kit for offsets around obstacles such as rafters, ridgepoles, or joists, ensuring a smooth and safe chimney installation.
- Flexible Configuration: You have the option to use two pairs of elbows when needed, offering versatility in your chimney design.
- Safety First: DuraPlus adheres to UL 103 standards, ensuring that offsets greater than 30° are not permitted, prioritizing safety in every application.
- 360° Swivel: Elbows at the base provide a full 360° swivel, allowing for easy installation without the need for adjustable angles.
- Complete Kit: The package includes (2) elbows and one Elbow Strap, giving you everything you need for a secure chimney installation.
- Durable Build: Available in stainless steel (KSS) or galvalume (K) outer wall options, this kit is built to last.
- Precision Connection: DuraPlus locks tightly with a precision twist-lock connection, guaranteeing a secure fit.
Features:
- Use for offsets around obstructions such as rafters, ridgepoles, or joists.
- May have two pairs of elbows, if needed.
- Offsets greater than 30° are not permitted in accordance with UL 103 standards.
- Elbows swivel 360° at the base (angles are not adjustable).
- A pair of elbows is required to return an offset chimney back to vertical.
- Available in stainless steel (KSS) or galvalume (K) outer wall.

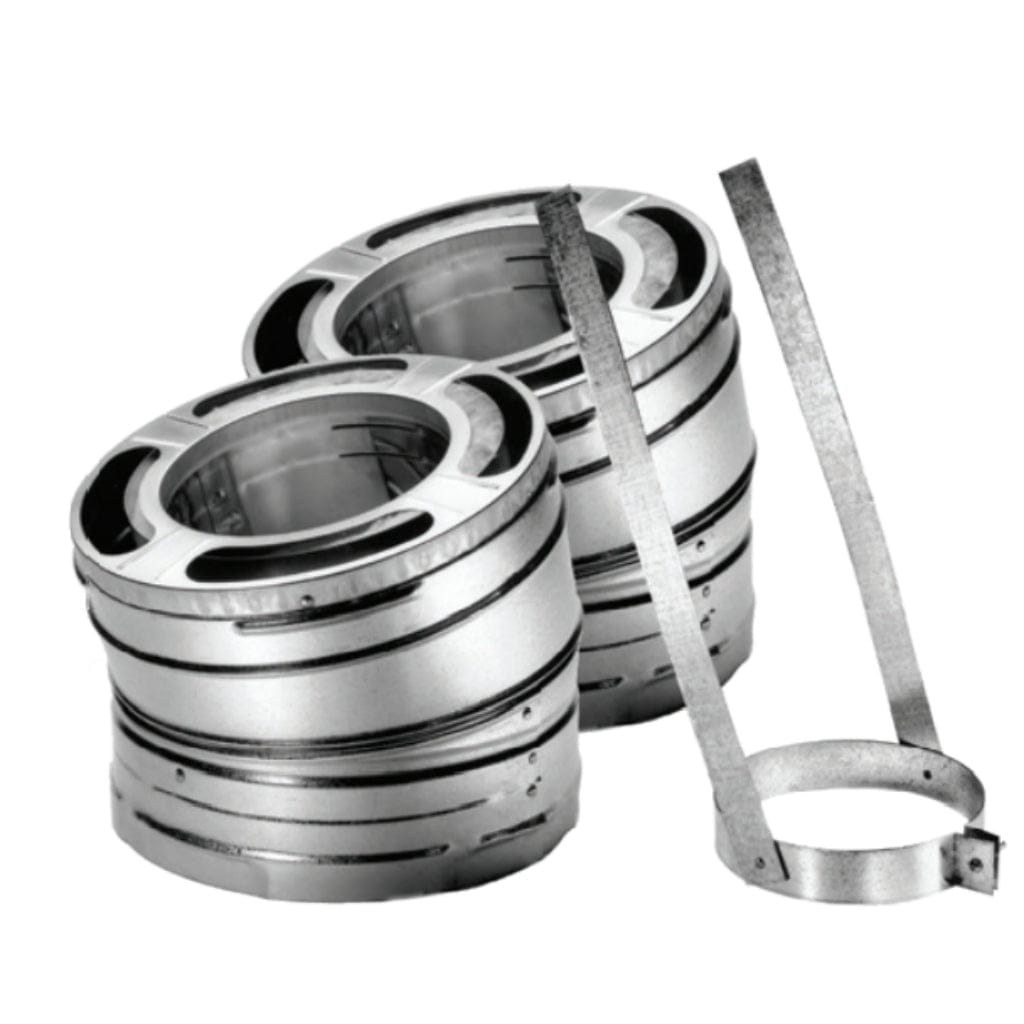

- Kit includes (2) elbows and one Elbow Strap.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | 6DP-E30KSS | 7DP-E30KSS | 8DP-E30KSS |
| Diameter | 6" | 7" | 8" |
| Dimensions | 4.5" (A) x 4.75" (B) | 4.625" (A) x 4.75" (B) | 5" (A) x 4.75" (B) |
| Clearances | 2" clearance to combustible. | ||
| Listings | UL Listed to UL 103HT (MH7399). | ||
| Warranty | Limited-lifetime warranty | ||
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
