Description

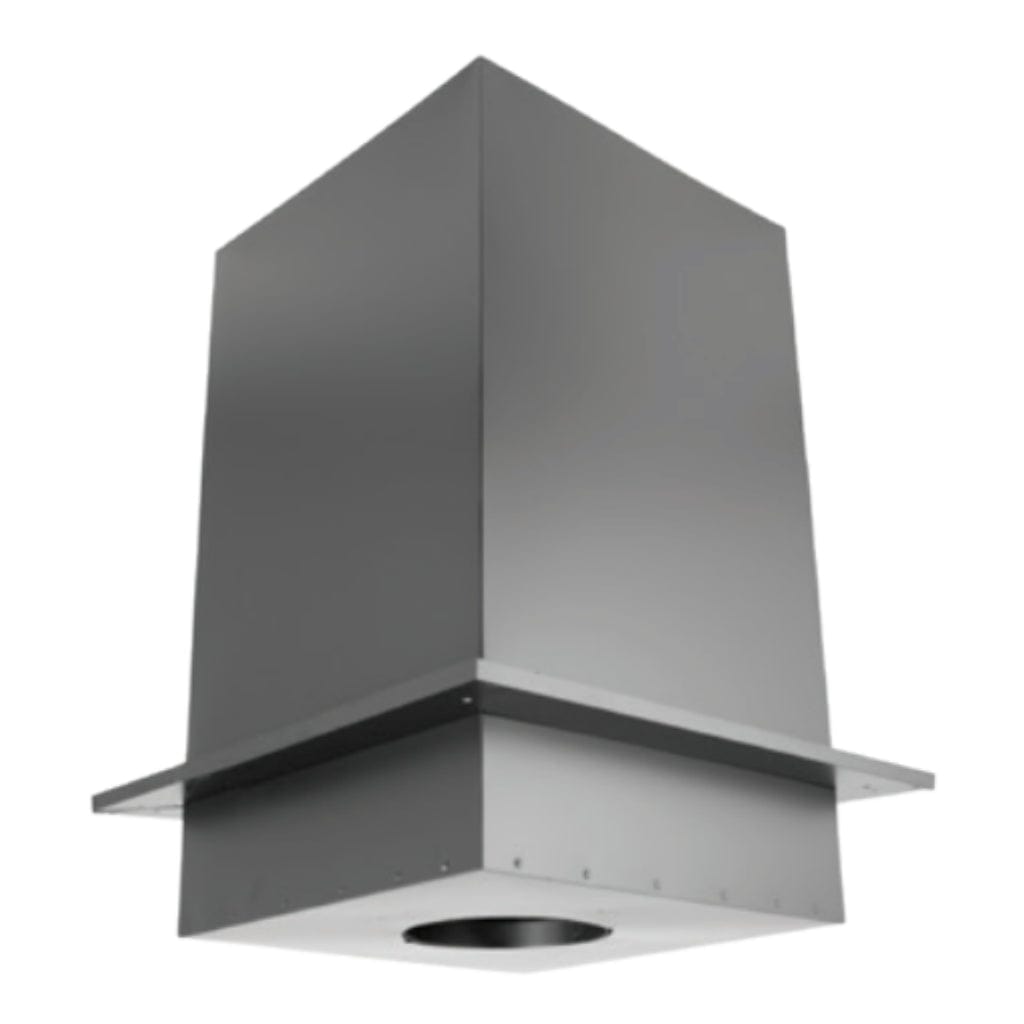

Upgrade your chimney system with the DuraVent DuraPlus 7" Square Ceiling Support Box. This essential component is meticulously engineered to elevate safety and performance. Say goodbye to worries about overheating and creosote fires, and step into a world of superior chimney efficiency.
DuraPlus is your trusted solution for maintaining a cool exterior while generating a hot draft within. Its innovative design includes two insulating layers – a refractory blanket and an airspace – ensuring consistent heat distribution and eliminating those troublesome hot spots common in traditional insulation. Even in the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand safely, preventing damage to your chimney and your home.
Crafted to endure continuous operation at temperatures of up to 1000°F, DuraPlus surpasses the stringent HT requirements of the UL standard. It has been rigorously tested, enduring one hour at 1400°F and three ten-minute chimney fire tests at a blistering 2100°F. With DuraPlus, you can trust in its exceptional fire-safe design, safeguarding both your chimney and your home.
Benefits:
- Enhanced Stove Efficiency
- Superior Insulation for Heat Retention
- Fire-Safe Design Protects Your Home
- Versatile Design for Various Ceiling Types
- Built-In Starter Section for Easy Installation
- Supports up to 35 Feet of DuraPlus Chimney
- Precision Twist-Lock Connection for Security
Features:
- Use with flat, vaulted, or cathedral ceilings.
- The Square Ceiling Support Box is painted black.
- Starter Section built-in.
- Supports up to 35’ of DuraPlus Chimney.
- For adapters, see DVL and DuraBlack section.
- Trim included.
- Refer to the Ceiling Pitch table to determine the size of the support box needed.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | 7DP-CS11 | 7DP-CS24 | 7DP-CS36 |
| Diameter | 7" (inner) | 7" (inner) |
7" (inner) |
| Dimension | 11" (A) x 18.25" (W) | 24" (A) x 18.25" (W) | 36" (A) x 18.25" (W) |
| Clearances | 2" clearance to combustible. | ||
| Listings | UL Listed to UL 103HT (MH7399). | ||
| Warranty | Limited-lifetime warranty | ||
|
Ceiling Pitch Table
|
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
