Description

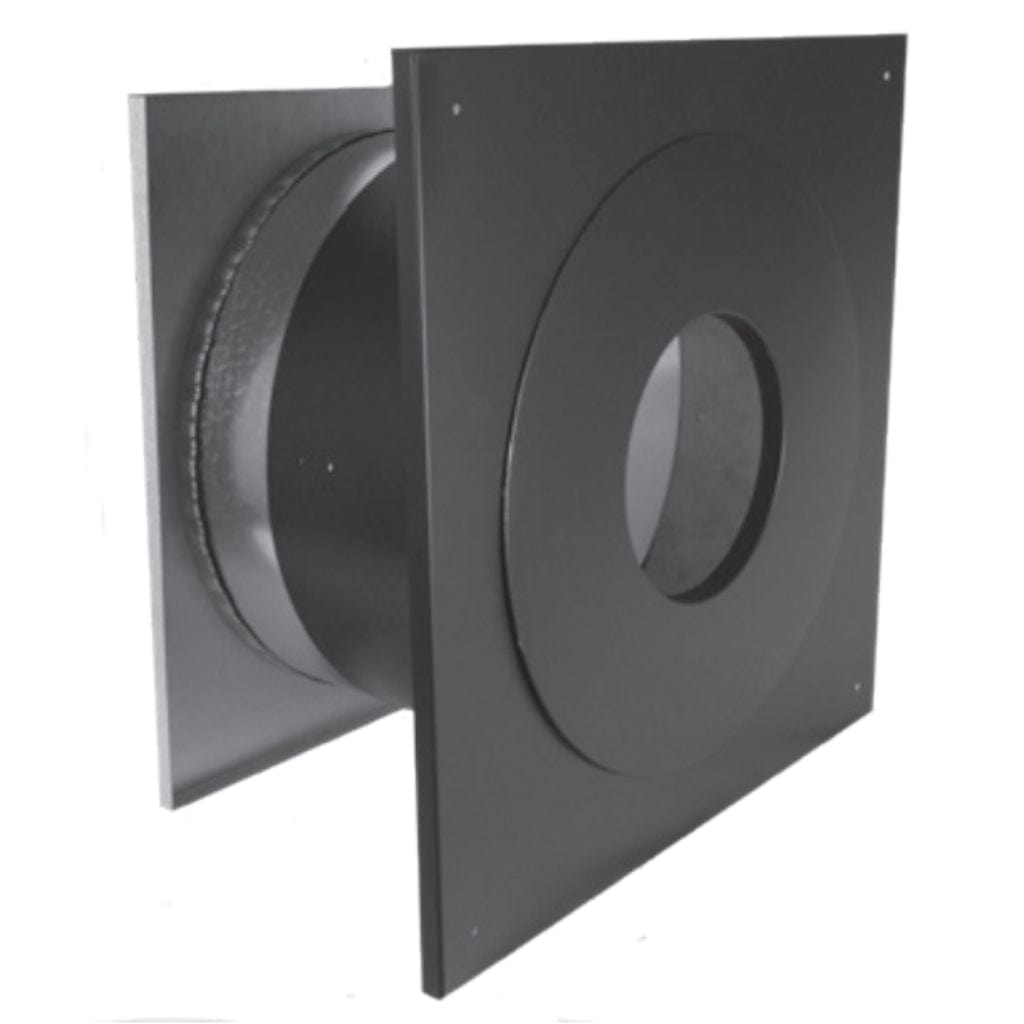

When it comes to safeguarding your home and optimizing your stove's performance, look no further than the DuraVent DuraPlus Galvanized Wall Thimble. Crafted with precision engineering and built to last, this innovative chimney accessory takes your fireplace experience to a whole new level.
DuraPlus is more than just a wall thimble; it's a commitment to safety and efficiency. The triple-wall construction is designed to remain cool on the outside while creating a hot draft within, enhancing your stove's effectiveness. It's all about boosting efficiency and ensuring a fire-safe environment for your home, protecting both your chimney and your precious abode.
Our thimble boasts two insulating layers, including a refractory blanket and an air space, keeping your chimney operating at its peak. Worried about hot spots? Fear not. DuraPlus eliminates them, thanks to its secure insulation placement. Even in the unlikely event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly, ensuring your safety.
Benefits:
- Enhanced Safety: DuraPlus's triple-wall design keeps the exterior cool while maintaining a hot draft inside, ensuring safety during operation.
- Superior Efficiency: Boost your stove's efficiency and enjoy a more effective heating experience.
- Versatile Fit: Adapts to wall thicknesses ranging from 4 1⁄4" to 7 1⁄4", with the option to extend for thicker walls.
- Easy Installation: Effortless installation between standard wall studs, with a sleek black interior trim ring.
- Durability Assured: Crafted from high-quality stainless steel and galvanized steel for long-lasting performance.
- Precision Construction: The twist-lock connection ensures a secure and airtight fit.
- Peace of Mind: Backed by a limited-lifetime warranty for worry-free enjoyment.
Features:
- Adjusts from a minimum of 4 1⁄4” to a maximum of 7 1⁄4” wall thickness, and fits between standard wall studs.
- To accommodate thicker walls, the telescoping pieces can be extended up to 16” with a field-fabricated extension installed.
- Must be installed with DuraPlus chimney pipe horizontally through the wall and extend a minimum of 2” into the room beyond the interior wall.
- Interior trim ring painted black.
- For adapters, see DVL and DuraBlack section.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | 6DP-WT | 7DP-WT | 8DP-WT |
| Diameter | 6" (inner) / 14" (outer) | 7" (inner) / 14" (outer) | 8" (inner) / 14" (outer) |
| Dimensions | 17" x 17" | 17" x 17" | 17" x 17" |
| Wall Thickness | 4.75" to 7.75" | ||
| Clearances | 2" clearance to combustible | ||
| Listings | UL Listed to UL 103HT (MH7399). | ||
| Warranty | Limited-lifetime warranty | ||
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
