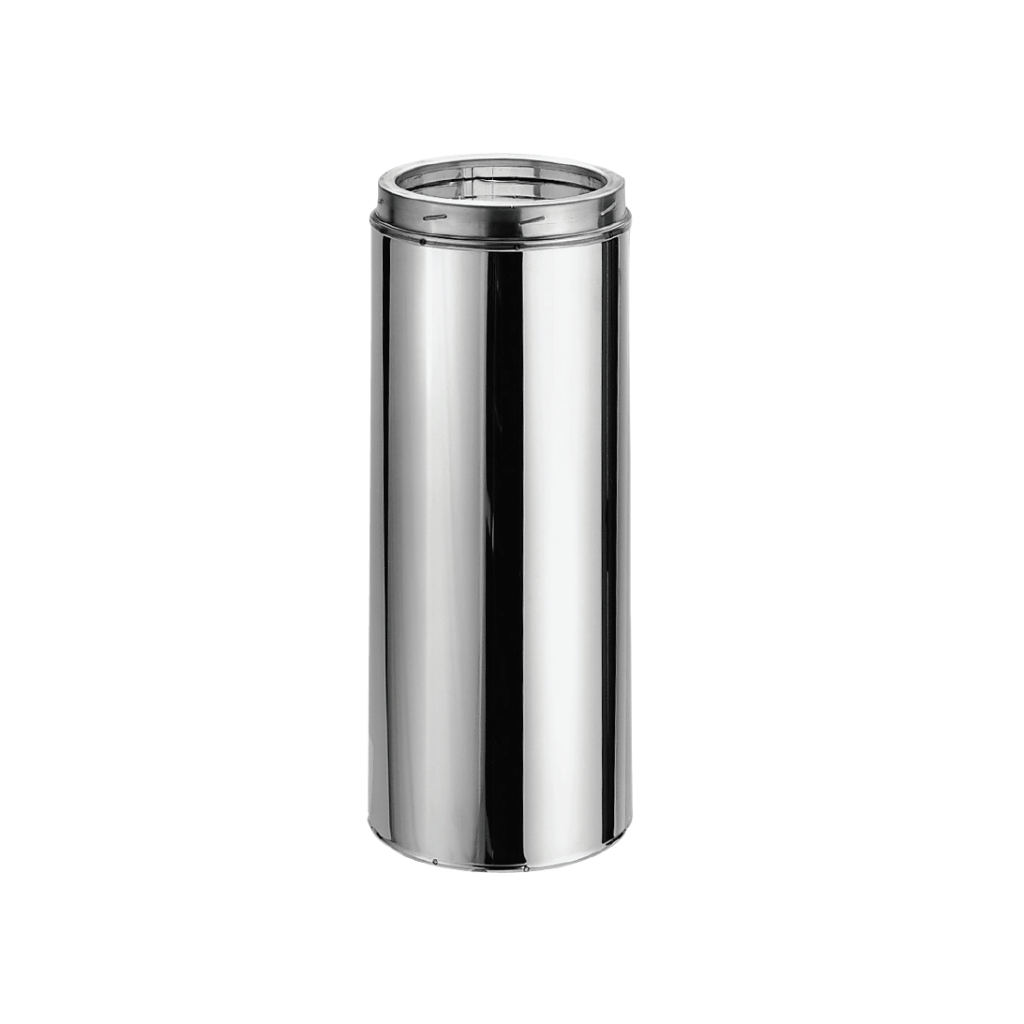

Description
When it comes to your home's safety and the performance of your heating system, there's no room for compromise. That's why we proudly present the DuraVent DuraTech 8" Stainless Steel Chimney Pipe, a double-wall, all-fuel chimney system that sets a new standard in the industry. With a Thermal Tech blanket insulation encased between its dual walls, this chimney pipe ensures that safety and efficiency are at the forefront of your heating system.
DuraTech is designed to keep the outer wall of the chimney cool while maintaining high flue gas temperatures, ensuring optimum draft performance. The inner wall is a remarkable 25% thicker than most competitive chimneys, providing an extra layer of safety without the need for locking bands or mechanical fasteners. Its sleek 1" wall design simplifies installations even in tight spaces. Plus, for those challenging installations, you can opt for the Reduced Clearance Square Ceiling Support Box, available for 6" diameter DuraTech.
Engineered for normal, continuous operation at flue gas temperatures of up to 1000°F, DuraTech undergoes rigorous testing, including one hour at a scorching 1400°F and three ten-minute chimney fire tests at a blistering 2100°F. This chimney pipe's commitment to safety and performance is unmatched.
Benefits:
- Optimal Safety: DuraTech's double-wall design and exceptional insulation guarantee safety by keeping the outer wall cool even at high flue gas temperatures.
- Simplified Installation: The 1" wall design and optional Reduced Clearance Square Ceiling Support Box make installations a breeze.
- Versatile Application: Suitable for wood stoves, fireplaces, furnaces, boilers, and more, fueled by wood, oil, coal, or gas.
- Quality Materials: Featuring stainless steel inner and outer walls and refractory insulation for maximum durability.
- Convenient Features: Twist-lock fittings, adjustable pipe lengths, and swivel base elbows save time and money during installation.
- Flexible Sizing: With various diameters and lengths available, find the perfect fit for your chimney.
- Unmatched Warranty: DuraTech comes with a limited lifetime warranty, offering 15 years of 100% coverage and an additional 15 years of up to 50%, ensuring peace of mind for installers and homeowners.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-48SS |
| Part no. | 8DT-48SSCF |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 48 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
