Description

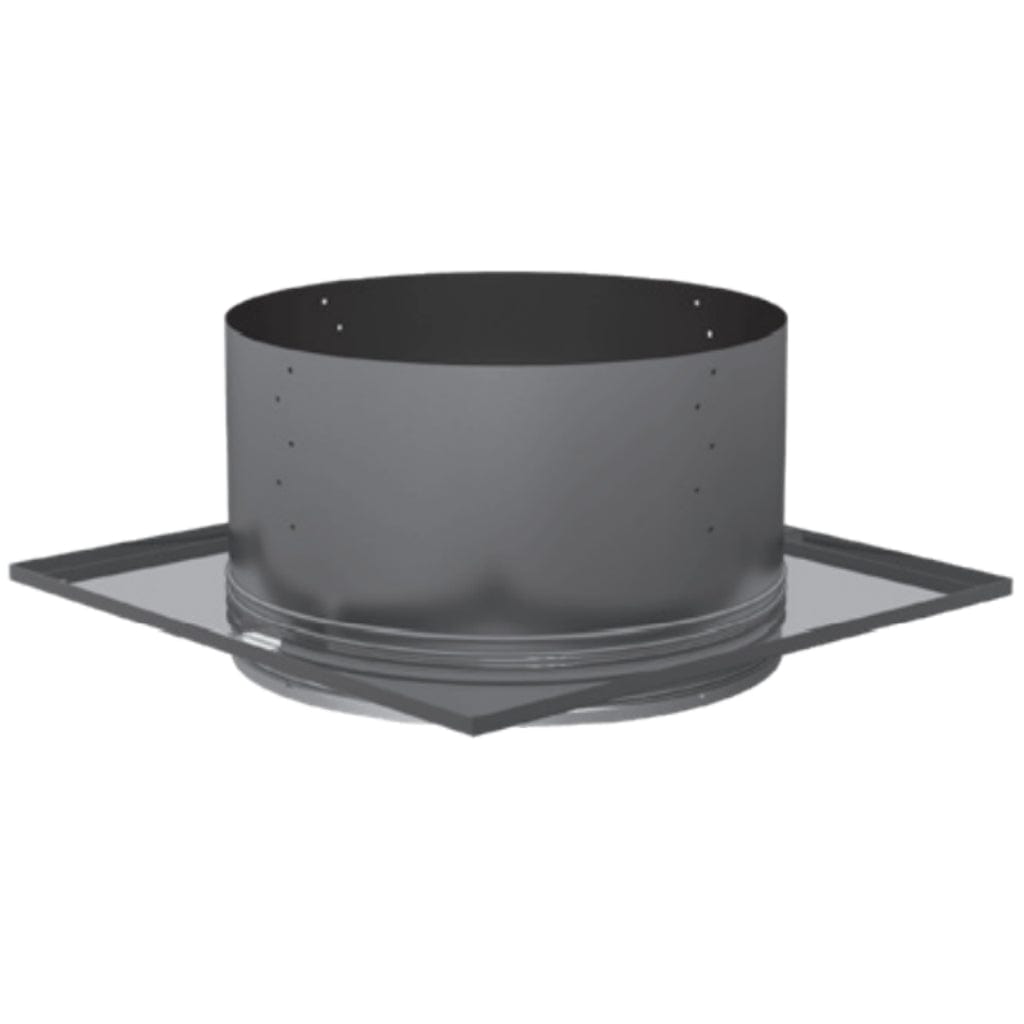

When it comes to your home's safety and the performance of your stove, there's no room for compromise. That's why we proudly introduce the DuraVent DuraPlus Round Ceiling Support - a marvel of engineering and safety that will transform your chimney system. Say goodbye to worries and hello to peace of mind.
DuraPlus is not just another chimney accessory; it's the fortress protecting your home from the unpredictable nature of creosote fires. Crafted with precision and designed for excellence, DuraPlus combines functionality with style, ensuring your chimney remains cool on the outside while delivering a hot draft within.
The secret to its prowess lies in its triple-wall construction, featuring not one, but two insulating layers. A refractory blanket, snugly held in place, eliminates those dreaded hot spots often associated with loose-fill insulation. And in the unlikely event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outward, averting potential disaster. Your safety is our top priority.
Benefits:
- Unmatched Safety: DuraPlus ensures your chimney stays cool on the outside while delivering a hot draft inside, protecting your home from creosote fires.
- Exceptional Insulation: Two insulating layers and ventilated air space guarantee efficient stove performance.
- Built to Last: Crafted with precision from high-quality materials, DuraPlus is designed for a lifetime of service.
- Easy Installation: A built-in twist-lock connection simplifies setup, and it supports up to 35 feet of DuraPlus Chimney.
- Stylish Design: Painted in sleek black, DuraPlus adds a touch of elegance to your chimney system.
- Versatile Compatibility: Use an adapter to attach DVL or DuraBlack to the support box.
- Precise Fit: The included trim collar ensures a seamless connection. (For adapters, see DVL and DuraBlack section.)
Features:
- Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock.
- Supports up to 35’ of DuraPlus Chimney.
- Use an adapter to attach DVL or DuraBlack to the support box.
- Painted black.
- Trim collar included. (For adapters see DVL and DuraBlack section.)
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | 6DP-RCS | 7DP-RCS | 8DP-RCS |
| Size | 6" | 7" | 8" |
| Dimension | 13.94" (Dia.) x 8.50 (H) | 13.94" (Dia.) x 8.50 (H) | 13.94" (Dia.) x 8.50 (H) |
| Clearances | 2" clearance to combustible. | ||
| Listings | UL Listed to UL 103HT (MH7399). | ||
| Warranty | Limited-lifetime warranty | ||
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
