Description

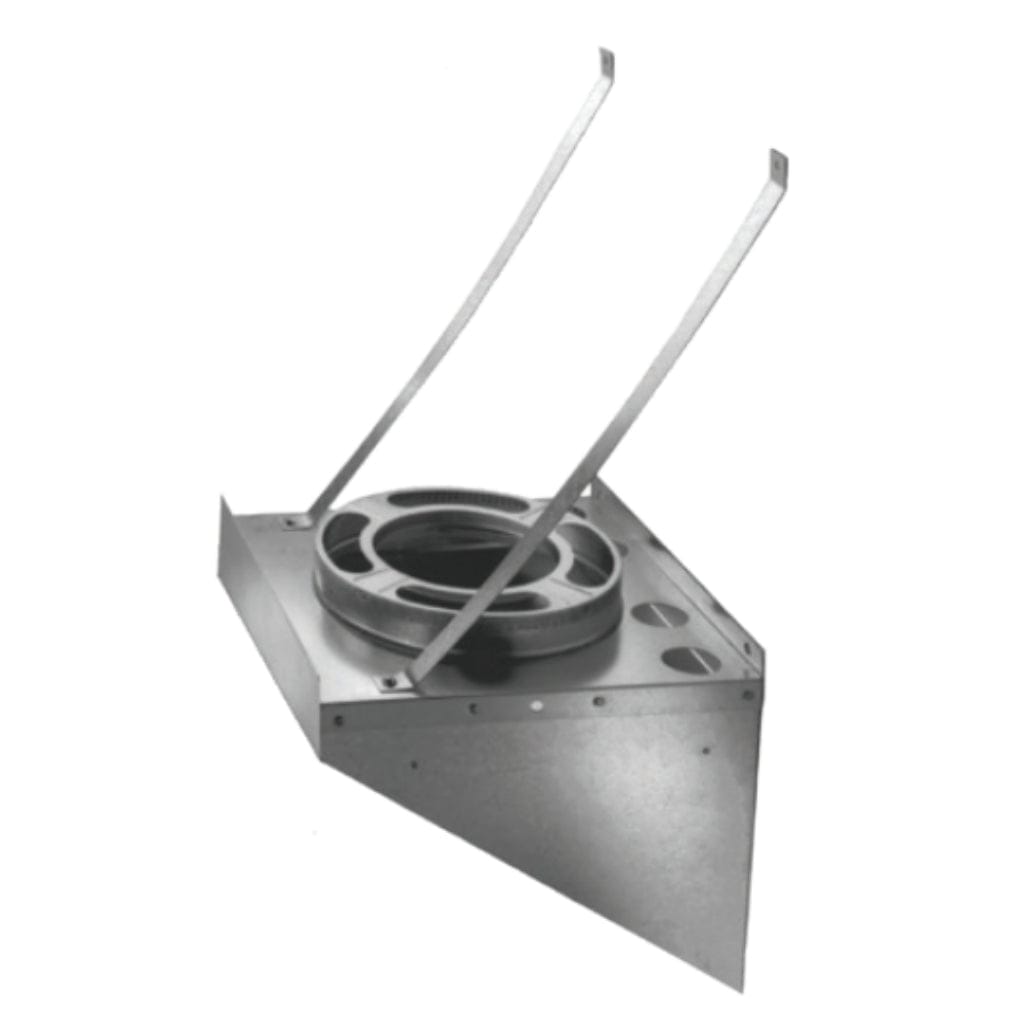

Elevate your chimney system's performance and safety with the DuraVent DuraPlus Galvanized Tee Support Bracket. Crafted to meet the highest standards in chimney technology, this support bracket is a vital component of your fireplace or stove installation.
Designed for excellence, the DuraPlus Galvanized Tee Support Bracket is part of the DuraPlus chimney system, renowned for its ability to stay cool on the outside while providing a blazing hot draft on the inside. This unique construction enhances stove efficiency, keeping your home cozy and warm. Moreover, it boasts a fire-safe design that shields both your chimney and your cherished building from potential hazards.
One of its standout features is the triple-wall chimney design, which includes two insulating layers—an efficient refractory blanket and an essential air space. Unlike traditional loose-fill insulation, this setup eliminates troublesome hot spots. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand safely, providing peace of mind to homeowners.
Benefits:
-
Enhanced Safety: Protect your home from chimney fires and other hazards with the DuraVent DuraPlus Galvanized Tee Support Bracket's top-tier construction.
-
Efficiency Boost: Experience a hotter draft and improved stove efficiency, keeping your space warm and comfortable.
-
Triple-Wall Design: Benefit from two insulating layers and an air space that eliminate hot spots and enhance safety.
-
Rigorous Testing: This support bracket is built to withstand extreme conditions, exceeding UL standards with flying colors.
-
Easy Installation: The precision twist-lock connection ensures a secure and hassle-free setup.
-
Versatile Sizing: Available in 6", 7", and 8" diameter sizes to suit various chimney systems.
-
Peace of Mind: Backed by a limited-lifetime warranty, so you can enjoy your fireplace worry-free.
Features:
- Use to support the Tee; suspended from a wall.
- Supports up to 35' of DuraPlus Chimney.
- Starter Section built-in.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | Diameter Size | Dimension |
| 6DP-TSB | 6" (inner) | 10" (A) x 14" (B) x 12" (C) |
| 7DP-TSB | 7" (inner) | 11" (A) x 15" (B) x 13" (C) |
| 8DP-TSB | 8" (inner) | 12" (A) x 16" (B) x 14" (C) |
| Finish | Galvanized Steel | |
| Clearances | 2" clearance to combustible. | |
| Listings | UL Listed to UL 103HT (MH7399). | |
| Warranty | Limited-lifetime warranty | |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
