Description
When it comes to safeguarding your home and ensuring the efficient operation of your heating appliances, the DuraVent DuraTech 10" Galvalume Chimney Pipe stands as the pinnacle of excellence. Designed for all-fuel applications, this double-wall chimney system has been engineered to meet and exceed the highest standards. Whether you have a wood fireplace, furnace, boiler, water heater, range, or any other residential-type appliance powered by oil, gas, coal, or wood, this chimney pipe is your trusted guardian.
The 10"-24" DuraTech chimney is rigorously tested and certified for continuous operation at extreme temperatures – it can handle 1000°F flue gas temperatures, endure one hour at 1400°F, and withstand ten minutes at a scorching 1700°F. This pipe is not just a component; it's your assurance of safety and efficiency. With an inner wall made of 0.027” 430 stainless steel and an outer wall crafted from 0.029” Galvalume Steel, it's a fusion of strength and resilience. The Thermal Tech (ceramic refractory) blanket insulation between the walls ensures your safety without compromising performance.
Benefits:
-
Unrivaled Safety: With a 2" clearance to combustibles, you can rest easy knowing your home is protected.
-
Adaptability: Available in various diameters and lengths, this pipe caters to your specific needs.
-
Effortless Installation: Twist-lock fittings eliminate the need for locking bands or mechanical fasteners.
-
Industry Leader: Manufactured by an industry leader with over 50 years of experience, ensuring top-notch quality.
-
Optimal Draft Performance: The Thermal Tech blanket insulation maintains high flue gas temperatures.
-
Stainless or Galvalume: Choose between stainless or galvalume outer walls based on your preference.
-
Unbeatable Warranty: Enjoy peace of mind with a Limited Lifetime Warranty, the best in the industry. 15 years 100%, 15 years up to 50%.

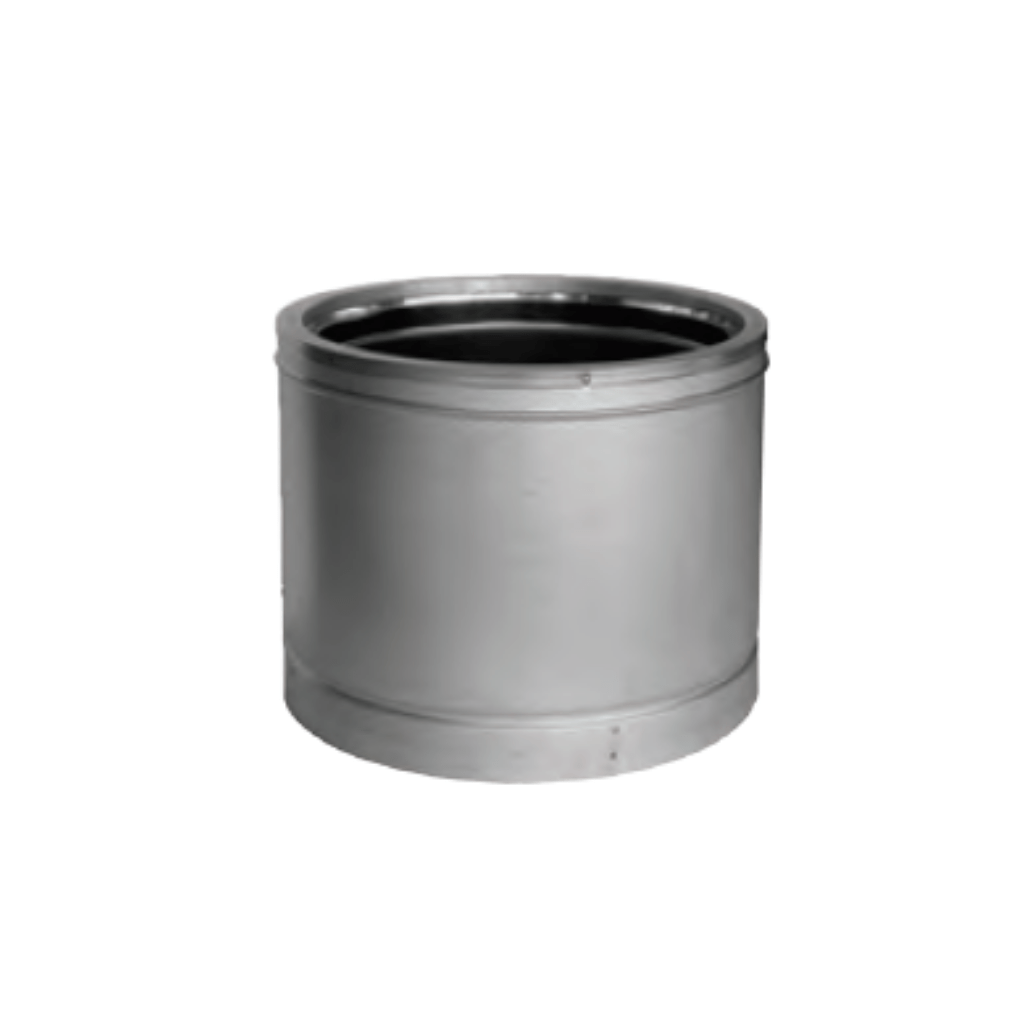

Product Details:
| Model | DuraTech 10" |
| Part no. | 10DT-06 |
| Inner Diameter, A | 10 inch |
| Outer Diameter, B | 12 inch |
| Pipe Length | 6 inch |
| Inner Wall Material |
0.027” 430 Stainless Steel |
| Outer Wall Material | 0.029” Galvalume Steel |
Applications:
In the United States, DuraTech Chimney can be used with wood fireplaces, furnaces, boilers, water heaters, ranges, or other residential-type appliances fueled by oil, gas, coal, or wood, that have been tested and listed for use with a UL103 chimney system.
In Canada, DuraTech can be used with oil & gas-fired appliances listed for use with a Type A Chimney, in accordance with ULC S604.
Materials and Construction: 10″-24″ diameter pipe feature .027″ 430 stainless steel inner wall and outer wall of .029″ galvalume or .027″ 430 stainless steel. A Thermal Tech (ceramic refractory) blanket insulation is encased between walls. Refractory insulation is encased between walls. Only stainless pipes use stainless end rings. Regular galvalume pipe uses galvalume end rings.
Clearances: 2″ clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
