Description

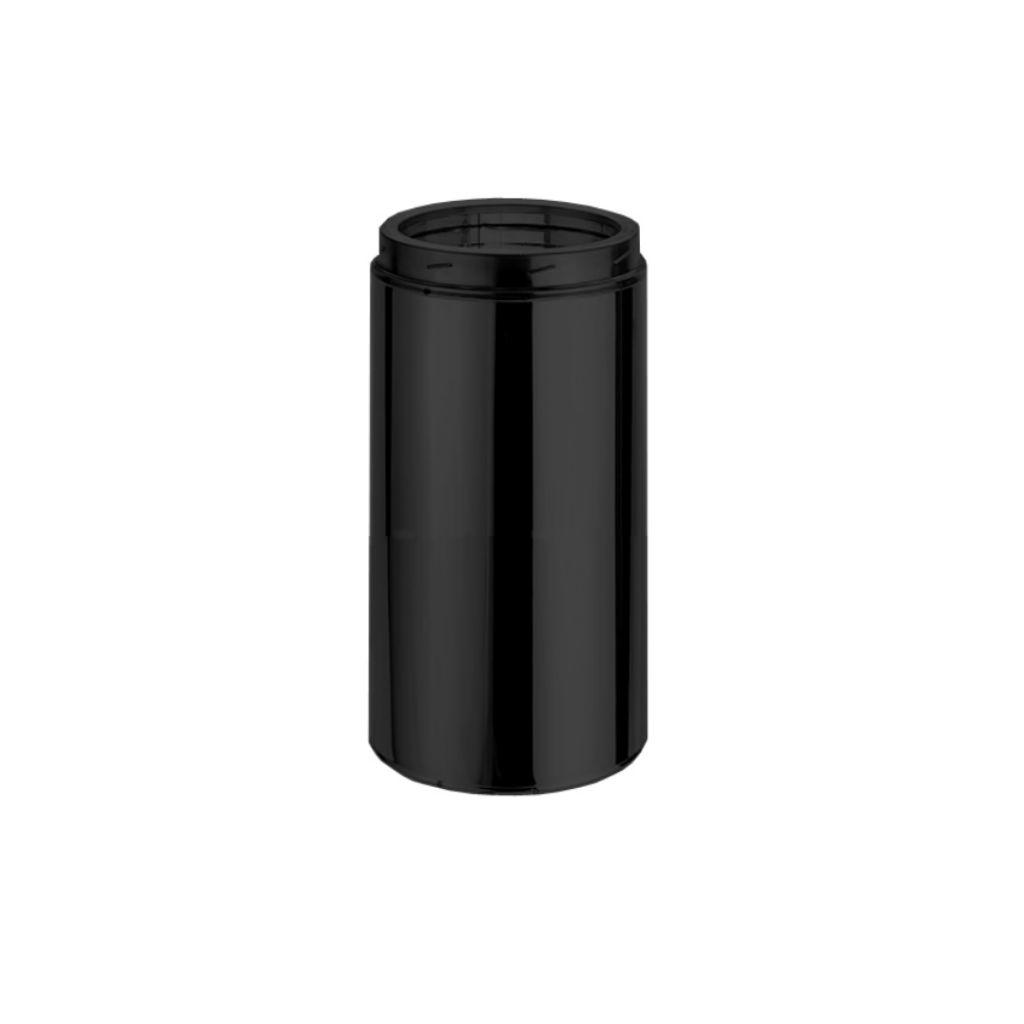

Experience Peace of Mind with DuraVent DuraTech 5" Black 12" Chimney Pipe. When it comes to ensuring the safety and performance of your chimney system, there's no room for compromise. That's where DuraTech steps in, offering you a reliable and durable solution that's engineered to perfection.
DuraTech is the result of over 50 years of manufacturing excellence, making it the industry leader you can trust. This double-wall, all-fuel chimney system is designed to meet your needs, whether you have a wood stove, fireplace, furnace, boiler, range, water heater, or any other wood, oil, coal, or gas-fueled appliances. It's also compatible with zero-clearance fireplaces that are factory-built.
What sets DuraTech apart is its cutting-edge construction. The inner wall is made of 0.020” 430 Stainless Steel, ensuring longevity and safety. The outer wall comes in two options: 0.016” 430 stainless steel or 0.021” galvalume steel, providing you with choices that suit your preferences. Between these walls lies refractory insulation, sealing the pipe for optimum performance.
One of the standout features of DuraTech is the Thermal Tech blanket insulation encased between its walls. This innovative technology keeps the outer wall cool while maintaining high flue gas temperatures, ensuring optimal draft performance. Plus, with twist-lock fittings, you won't need locking bands or mechanical fasteners, making installation a breeze.
Benefits:
- Optimal Safety: DuraTech's double-wall design and extra-thick inner wall provide unmatched safety and peace of mind.
- Sleek Installation: The 1" wall design allows for easy installation, even through 16" on-center framing.
- High-Temperature Endurance: Designed for operation at 1000°F flue gas temperatures and tested rigorously at 1400°F and even 2100°F during chimney fire tests.
- Versatile Compatibility: Suitable for various fuel types and appliances, making it a versatile chimney solution.
- Customization Options: Choose between stainless or galvalume outer walls and a range of diameters.
- UL-Listed Shroud: Create a concealed, UL-listed shroud for a polished and safe chimney termination.
- Peace of Mind: Enjoy the industry's best Limited Lifetime Warranty, covering you for 15 years at 100% and an additional 15 years up to 50%.
Product Details:

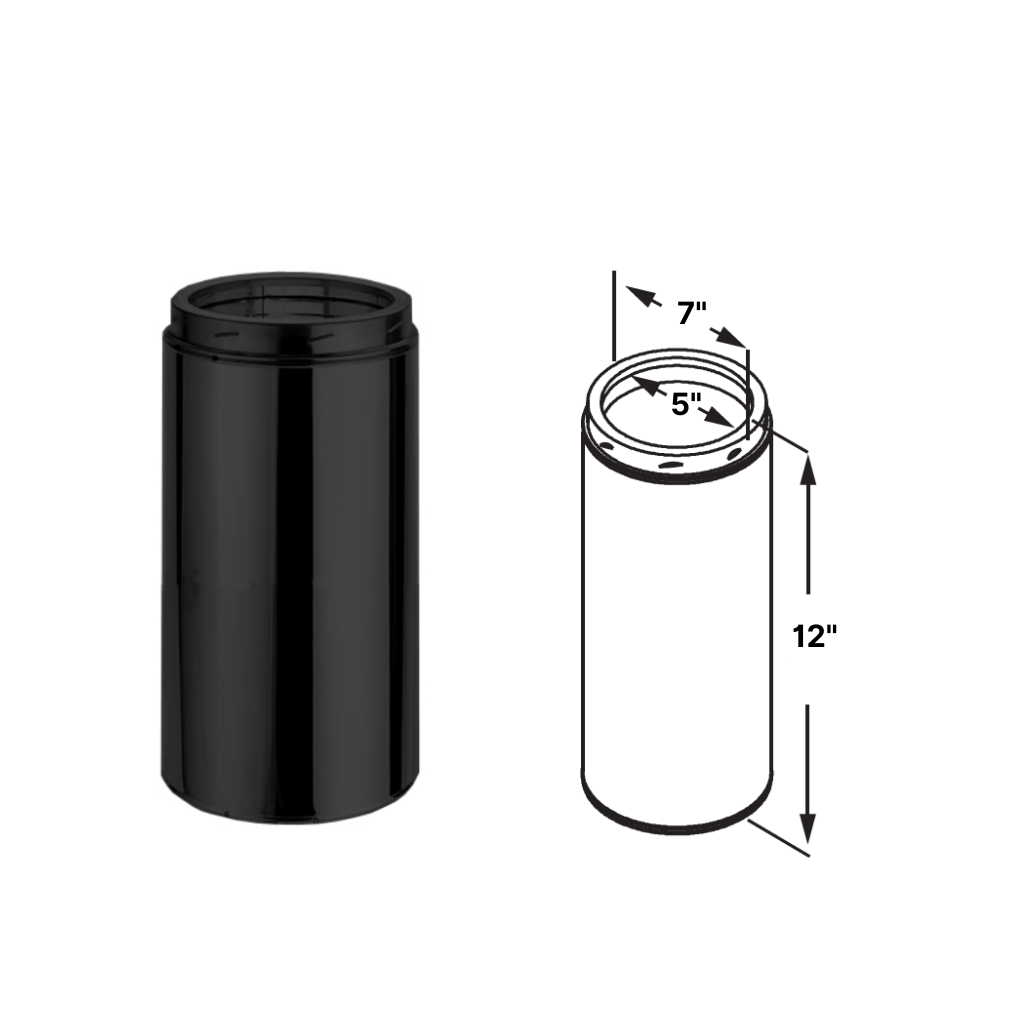

| Model | DuraTech 5" |
| Part no. | 5DT-12B |
| Inner Diameter, A | 5 inch |
| Outer Diameter, B | 7 inch |
| Pipe Length | 12 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Finish Material | Black |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
