Description
Elevate your home's heating system to a new level of efficiency and safety with the DuraVent DuraTech 5" Stainless Steel Elbow Kit. As winter's chill approaches, it's time to ensure that your chimney and flue system are in top-notch condition. This elbow kit provides a solution that not only meets industry standards but also surpasses expectations.
Designed to facilitate offsets around various obstructions like rafters, ridgepoles, or joists, the DuraTech Elbow Kit is a remarkable asset for any heating system. With the flexibility to swivel 360 degrees at the base, it simplifies installation, ensuring your chimney aligns perfectly with your needs.
DuraTech offers two angle options, 15° and 30°, allowing you to tailor the kit to your specific requirements. And with a UL 103 standards-compliant design, you can trust that your safety and satisfaction are our top priorities.
Benefit:
- Optimized Safety: Offset your chimney with precision, knowing that you're meeting industry standards and ensuring the safest operation.
- 360° Swivel: Easy installation with the flexibility to position your chimney just right for your setup.
- Tailored Angles: Choose from 15° or 30° angles, providing versatility for a variety of applications.
- All-Fuel Compatibility: Use with wood stoves, fireplaces, furnaces, boilers, and more, whether fueled by wood, oil, coal, or gas.
- Superior Materials: Crafted with durable 430 stainless steel, ensuring longevity and reliability.
- UL-Listed Shroud: Create a shroud for a sleek and safe chimney termination with our specifications.
- Peace of Mind: Backed by a Limited Lifetime Warranty, our product assures quality, durability, and your peace of mind.
Product Details:
- Part no. 5DT-E15KSS 15° Elbow Kit
- Part no. 5DT-E30KSS 30° Elbow Kit

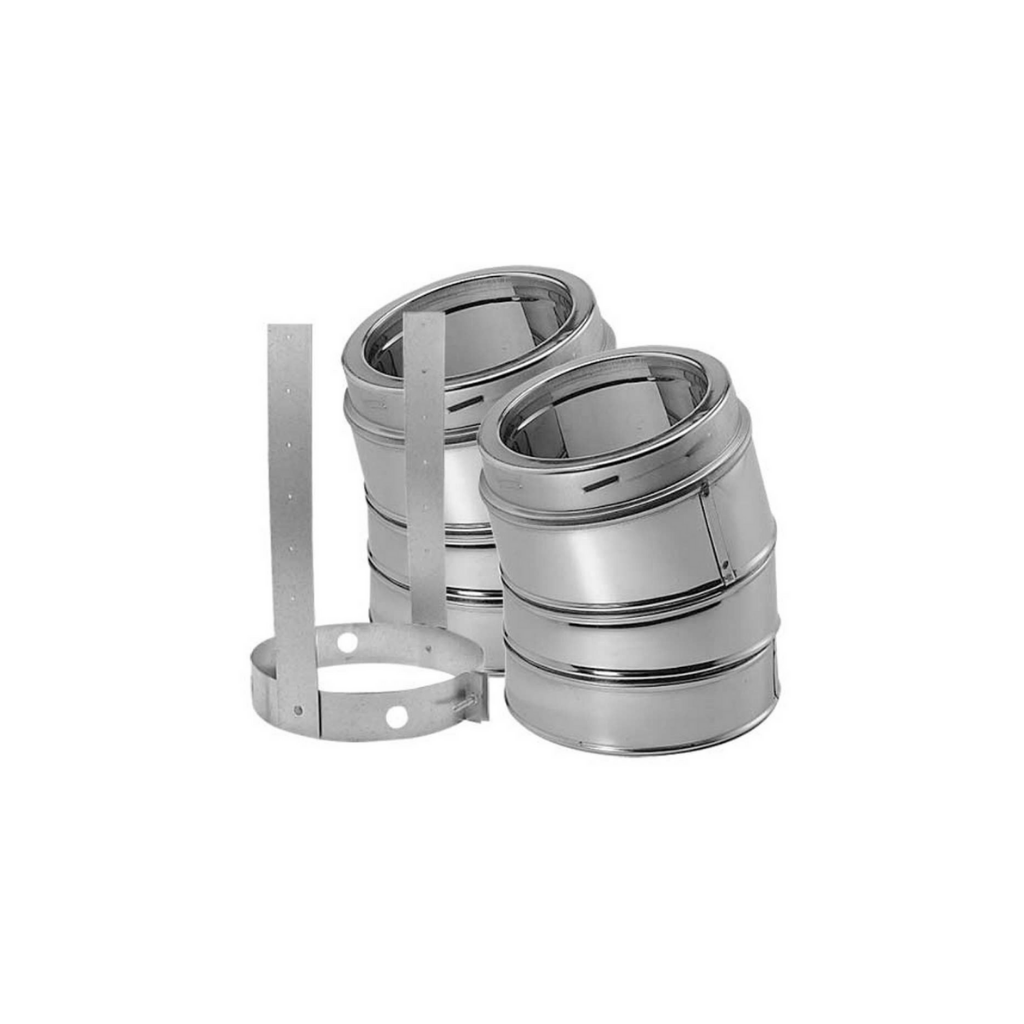

- Elbow Kit includes: 2 Elbows and 1 Elbow Strap
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
