Description

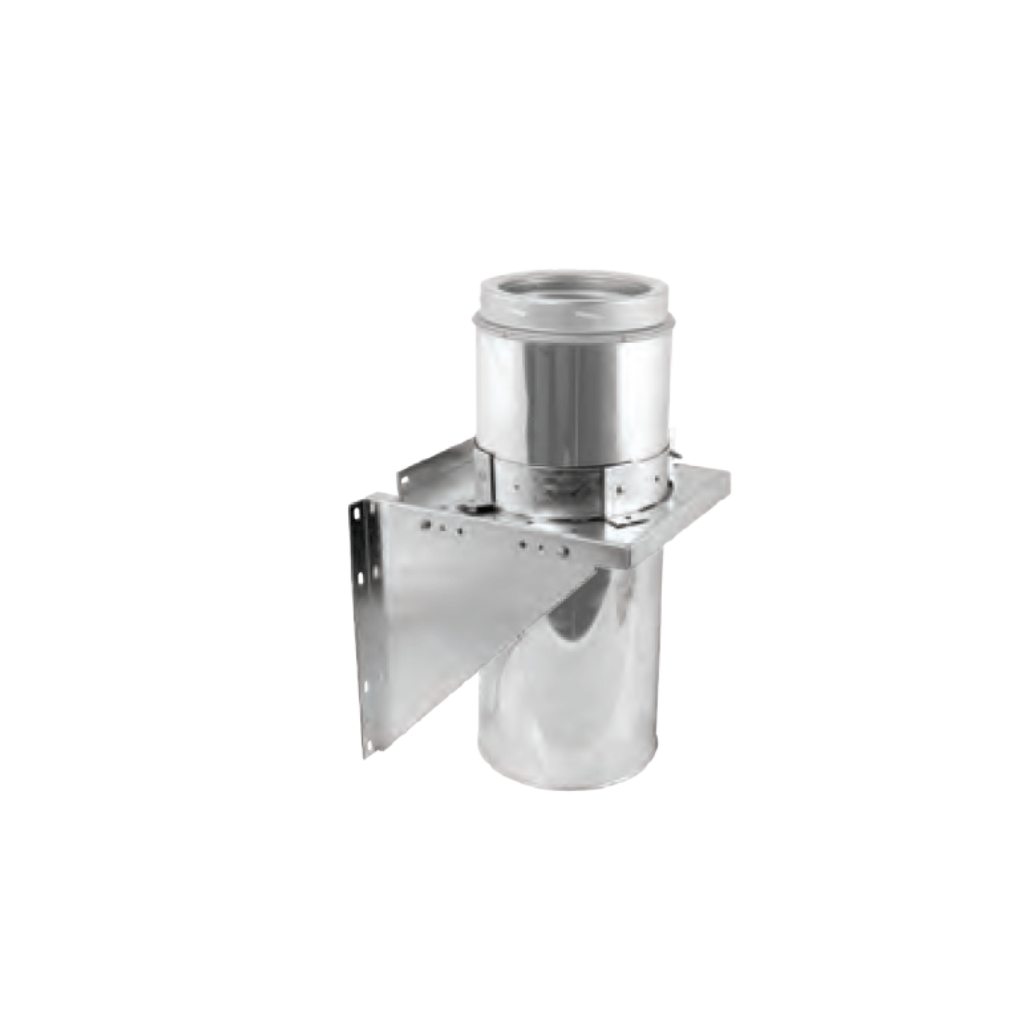

When it comes to chimney systems, safety and stability are paramount. The DuraVent DuraTech 5" Diameter 5DT-TSBSS Stainless Steel Adjustable Tee Support Bracket is your ideal companion for a secure and worry-free installation. With this meticulously engineered bracket, you can elevate your chimney system to new heights – quite literally.
Crafted for perfection, the DuraTech Adjustable Tee Support Bracket is designed to be your chimney's reliable backbone. It can support up to 50 feet of DuraTech Chimney without the need for additional straps. If you opt for added security, it will even support a whopping 70 feet with straps. Now, you can enjoy a warm, cozy fire with peace of mind, knowing your chimney is in good hands.
But the benefits don't stop there. This adjustable tee support bracket attaches seamlessly to your chimney pipe, allowing for easy installation above or below the tee. If you decide to place it below the tee, a short section of pipe is all that's required, thanks to its smart design. The adjustable base provides 2 to 6 inches of clearance from the wall, ensuring a safe and efficient chimney system that meets all your needs.
Benefits:
- Stability First: Ensure your chimney system's stability with this sturdy stainless steel support bracket. You can trust it to securely hold up to 50 feet of DuraTech Chimney without straps.
- Versatile Installation: With the flexibility to install above or below the tee, this bracket adapts to your unique chimney setup, making installation a breeze.
- Clearance Control: The adjustable base provides 2 to 6 inches of clearance from the wall, so you can customize your chimney system's layout with ease.
- Multi-Fuel Compatibility: Designed for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more – it's your all-in-one chimney solution.
- Top-Notch Materials: Crafted with a .020” 430 stainless steel inner wall and the choice of .016” 430 stainless steel or .021” galvalume steel outer wall, this bracket ensures durability and safety.
- Peace of Mind Warranty: Backed by a Limited Lifetime Warranty, the best in the industry, it offers 15 years at 100% coverage and up to 50% for the next 15 years, providing unmatched assurance for a quality installation.
- Trusted Expertise: Manufactured by the industry leader with over 50 years of experience, you're investing in a product with a rich history of quality.
Product Details and Dimensions:
| Size | 5" Diameter SS Adjustable Tee Support |
| A | 7" |
| B | 10" |
| C | 11" |
| D | 11 3⁄4” |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
