Description

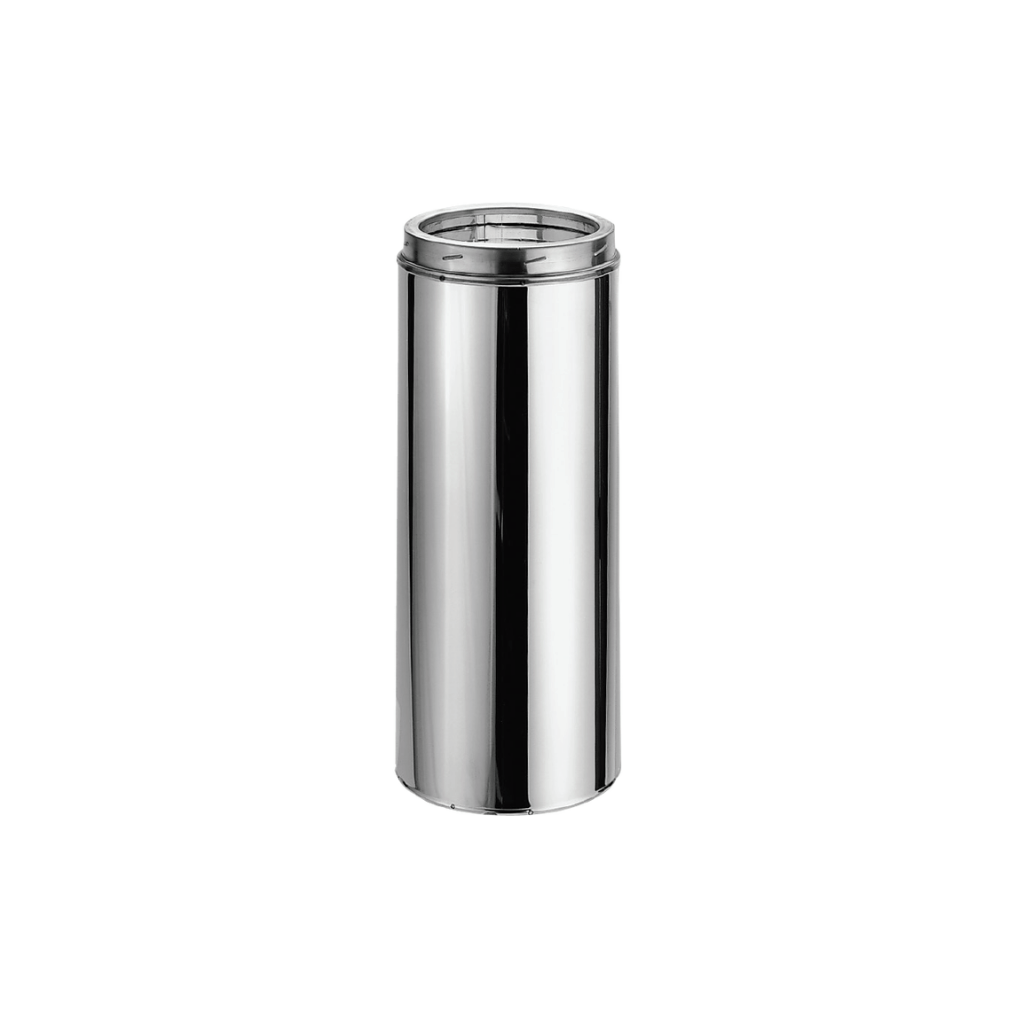

Ensure the safety and performance of your chimney system with the DuraVent DuraTech 6" Diameter Galvalume Steel 60" Pipe Length. Whether you rely on a wood stove, fireplace, furnace, boiler, range, water heater, or any other wood, oil, coal, or gas-fueled appliance, DuraTech is your trusted companion for worry-free venting. With its innovative design and stringent quality standards, DuraTech is more than just a chimney pipe; it's your assurance of a safer and more efficient home heating experience.
DuraTech's secret lies within its dual-wall construction, featuring a Thermal Tech blanket insulation that ensures the outer wall remains cool while maintaining high flue gas temperatures for optimal draft performance. The inner wall is 25% thicker than many other chimneys on the market, providing an extra layer of safety without the need for cumbersome locking bands or mechanical fasteners. This sleek, 1" wall design facilitates easy installation through 16" on-center framing, and for those tight spaces, a Reduced Clearance Square Ceiling Support Box is available (6" diameter DuraTech only).
Benefits:
-
Superior Safety: DuraTech is designed for normal, continuous operation at 1000°F flue gas temperatures and is subjected to rigorous high-temperature testing, including one hour at 1400°F and three ten-minute chimney fire tests at 2100°F. Your safety is our top priority.
-
Easy Installation: With its sleek 1" wall design, DuraTech simplifies installation through 16" on-center framing, saving you time and effort. No locking bands or mechanical fasteners required.
-
Versatile Application: DuraTech is compatible with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and other appliances fueled by wood, oil, coal, or gas. It's also suitable for zero-clearance fireplaces that are factory-built.
-
Durable Construction: The inner wall of DuraTech is made of 0.020” 430 Stainless Steel, while the outer wall boasts 0.021” Galvalume Steel. Refractory insulation is encased between walls, and stainless steel end rings ensure a secure seal.
-
Flexible Design: DuraTech offers a wide variety of diameters and lengths, featuring twist-lock fittings for a hassle-free assembly, and it's backed by over 50 years of manufacturing expertise.
-
Superior Insulation: The Thermal Tech blanket insulation keeps the outer wall cool, ensuring high flue gas temperatures for optimal draft performance, allowing you to get the most out of your heating system.
-
Unmatched Warranty: Enjoy peace of mind with the industry-leading Limited Lifetime Warranty, with 15 years at 100% coverage and an additional 15 years at 50%. We stand behind our product's quality.
Product Details:
| Model | DuraTech 6" |
| Part no. | 6DT-60CF |
| Inner Diameter, A | 6 inch |
| Outer Diameter, B | 8 inch |
| Pipe Length | 60 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.021” Galvalume Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
