Description
When it comes to ensuring the safety and performance of your home's heating system, you deserve nothing but the best. DuraVent's DuraTech 6" All-Fuel Chimney Pipe is the epitome of excellence in chimney systems. Engineered to provide you with unparalleled safety and efficiency, this double-wall chimney system is your gateway to worry-free warmth. With a focus on quality, convenience, and durability, DuraTech stands as a beacon of reliability.
Benefits:
-
Exceptional Insulation: DuraTech boasts Thermal Tech blanket insulation, creating a protective barrier that keeps the outer wall of the chimney cool, all while ensuring optimal flue gas temperatures. This insulation is the cornerstone of safety in your home.
-
Built to Last: Crafted with an inner wall that's 25% thicker than most chimneys on the market, DuraTech offers an extra layer of safety that you can depend on. You won't need any locking bands or mechanical fasteners, simplifying your installation process.
-
Effortless Installation: Thanks to its sleek 1" wall design, DuraTech allows for easy installations through 16" on-center framing, making it ideal for even the tightest spaces. And if you're working in a confined area, our Reduced Clearance Square Ceiling Support Box is here to help (compatible with 6" diameter DuraTech only).
-
Resilient Performance: Designed for continuous operation at 1000°F flue gas temperatures, DuraTech goes through rigorous testing, including exposure to 1400°F for an hour and three ten-minute chimney fire tests at 2100°F. This chimney won't back down in the face of extreme conditions.
-
Versatile Applications: DuraTech isn't limited to one type of appliance. It's compatible with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more, regardless of whether they're fueled by wood, oil, coal, or gas. It's also suitable for zero-clearance fireplaces that are factory-built.
-
Top-Notch Materials: The inner wall of DuraTech is made from 0.020” 430 stainless steel, while the outer wall options include 0.016” 430 stainless steel or 0.021” galvalume steel. A refractory insulation layer adds an extra layer of protection, and stainless steel end rings seal the deal.
-
Peace of Mind: With DuraTech, you're backed by a Limited Lifetime Warranty – one of the most robust in the industry. We offer 15 years of 100% coverage and 15 additional years with 50% coverage. This means you, as an installer or homeowner, can trust in a quality installation that stands the test of time.
Product Details:

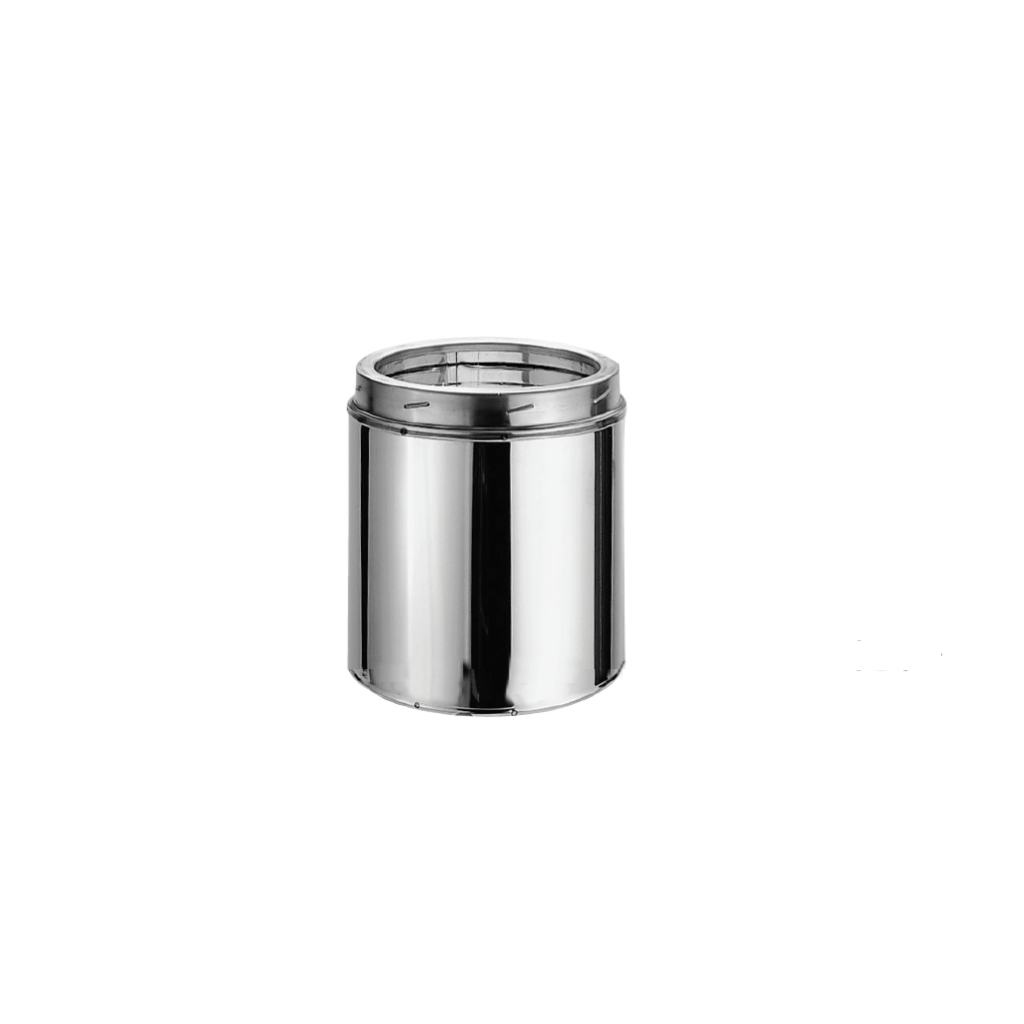

| Model | DuraTech 6" |
| Part no. | 6DT-09 |
| Inner Diameter, A | 6 inch |
| Outer Diameter, B | 8 inch |
| Pipe Length | 9 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.021” Galvalume Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
