Description

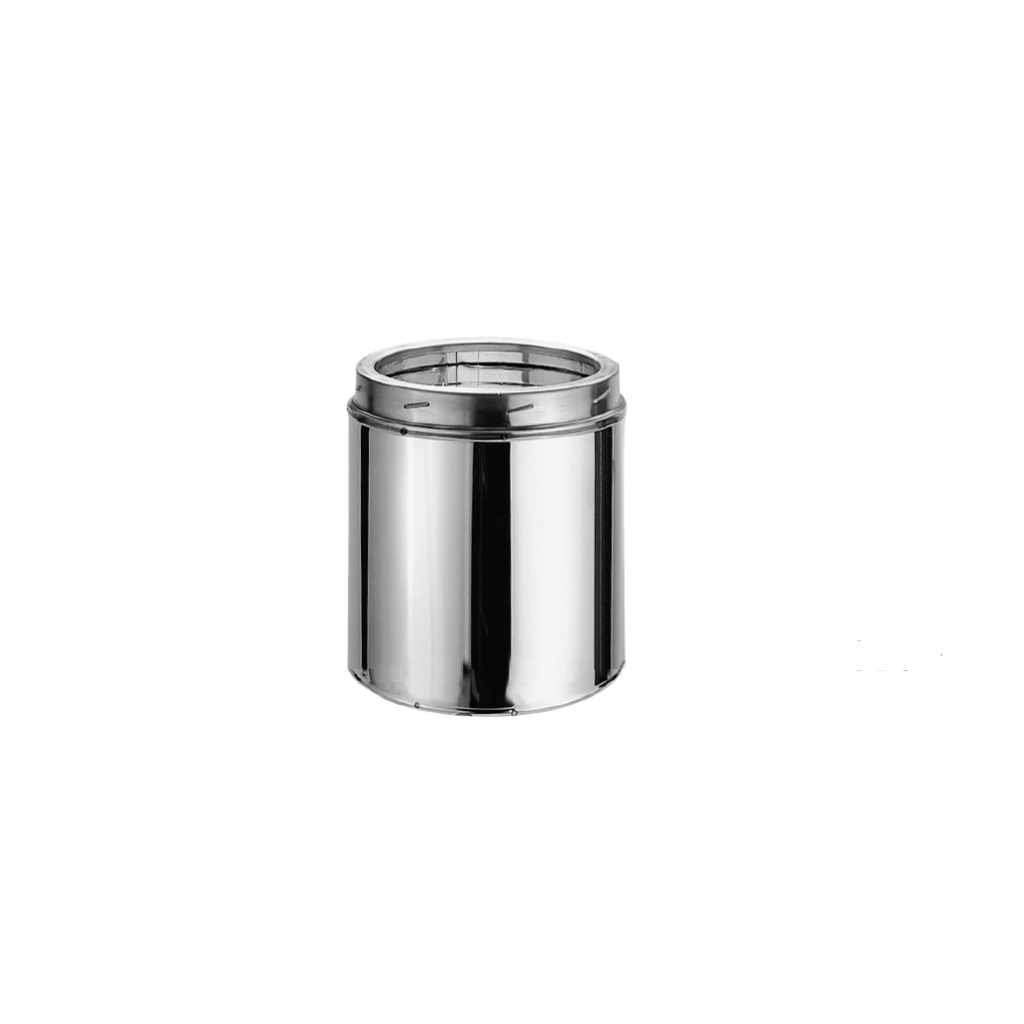

Elevate your home's safety and performance with the DuraVent DuraTech 6" Stainless Steel Chimney Pipe. Designed with precision, this all-fuel, double-wall chimney system offers the ultimate peace of mind for your heating needs. Engineered to meet UL 103 HT and ULC S604 standards, DuraTech combines innovation and efficiency to create a safer and more efficient environment in your home.
The secret behind DuraTech's excellence lies in its unique construction. A Thermal Tech blanket insulation rests snugly between double walls, ensuring the outer chimney remains cool while facilitating high flue gas temperatures for an optimal draft performance. What's more, the inner wall is 25% thicker than competitor chimneys, providing an additional layer of safety without the need for cumbersome locking bands or mechanical fasteners.
Installing this chimney system is a breeze, thanks to its sleek 1" wall design that accommodates 16" on-center framing. For those tight spaces, our Reduced Clearance Square Ceiling Support Box (specifically designed for 6" diameter DuraTech) is the perfect solution. You can rest easy knowing that DuraTech is built for normal, continuous operation at 1000°F flue gas temperatures, passing rigorous tests, including enduring one hour at 1400°F and three ten-minute chimney fire tests at a scorching 2100°F.
Benefits:
- Safety First: DuraTech's thicker inner wall and Thermal Tech insulation ensure a safer and more secure chimney system.
- Easy Installation: The sleek 1" wall design and reduced clearance options simplify installation.
- Wide Compatibility: Ideal for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more.
- Diverse Sizing: A variety of diameters and lengths available to suit your specific needs.
- Quality Assurance: Crafted by an industry leader with over 50 years of manufacturing experience.
- Optimal Performance: Keep the outer chimney cool while maintaining high flue gas temperatures for draft efficiency.
- Peace of Mind: Benefit from a Limited Lifetime Warranty that surpasses industry standards, offering 15 years at 100% and up to 50% coverage for 15 years, ensuring a quality installation you can rely on.
Product Details:
| Model | DuraTech 6" |
| Part no. | 6DT-06SS |
| Inner Diameter, A | 6 inch |
| Outer Diameter, B | 8 inch |
| Pipe Length | 6 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction:
5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
