Description

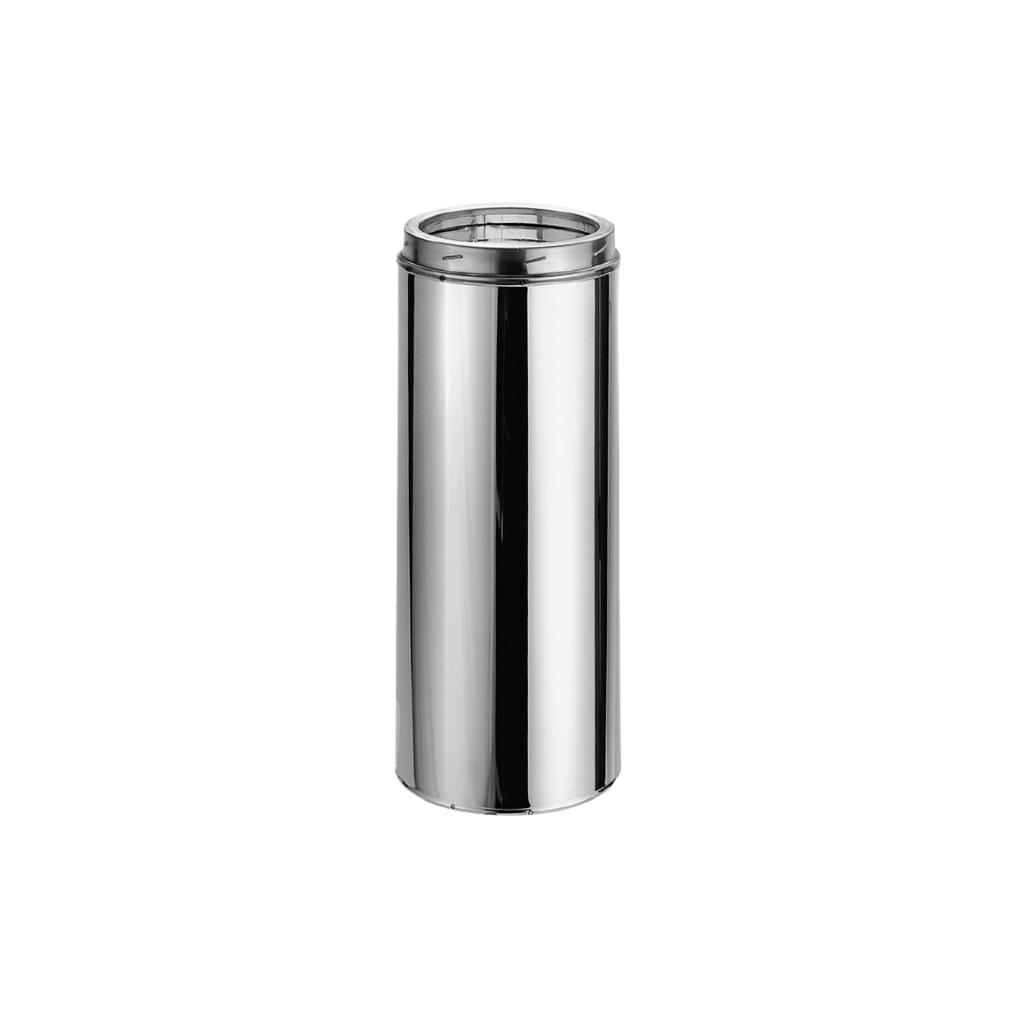

Discover the pinnacle of chimney technology with DuraVent's DuraTech 6" Stainless Steel Chimney Pipe. Engineered for excellence and designed for your peace of mind, this all-fuel, double-wall chimney system is your solution to optimal safety and performance.
Inside DuraTech's sleek 1" wall design lies a world of innovation. With a Thermal Tech blanket insulation encased between dual walls, it maintains a cool exterior while ensuring high flue gas temperatures for superior draft performance. Safety is paramount, and that's why the inner wall of this chimney is 25% thicker than its competitors, eliminating the need for locking bands or mechanical fasteners.
This 24" pipe length ensures a secure installation while minimizing clearance requirements, making it perfect for 16" on-center framing. And for those tight spaces, a Reduced Clearance Square Ceiling Support Box is available exclusively for the 6" diameter DuraTech. Rest assured, DuraTech stands strong against the harshest tests, including an hour at 1400°F and three ten-minute chimney fire tests at 2100°F, surpassing UL standards.
Benefits:
- Superior Safety: 25% thicker inner wall, no locking bands or fasteners required.
- Easy Installation: Sleek 1" wall design fits 16" on-center framing.
- Wide Application: Suitable for wood stoves, fireplaces, furnaces, boilers, and more.
- Thermal Tech Insulation: Maintains cool exterior while ensuring high flue gas temperatures.
- Durable Build: Made with 430 Stainless Steel for lasting quality.
- Variety of Options: Choose stainless or galvalume outer walls to match your preferences.
- Peace of Mind: Industry-leading limited lifetime warranty for ultimate assurance.
Product Details:
| Model | DuraTech 6" |
| Part no. | 6DT-24SS |
| Part no. | 6DT-24SSCF |
| Inner Diameter, A | 6 inch |
| Outer Diameter, B | 8 inch |
| Pipe Length | 24 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
