Description

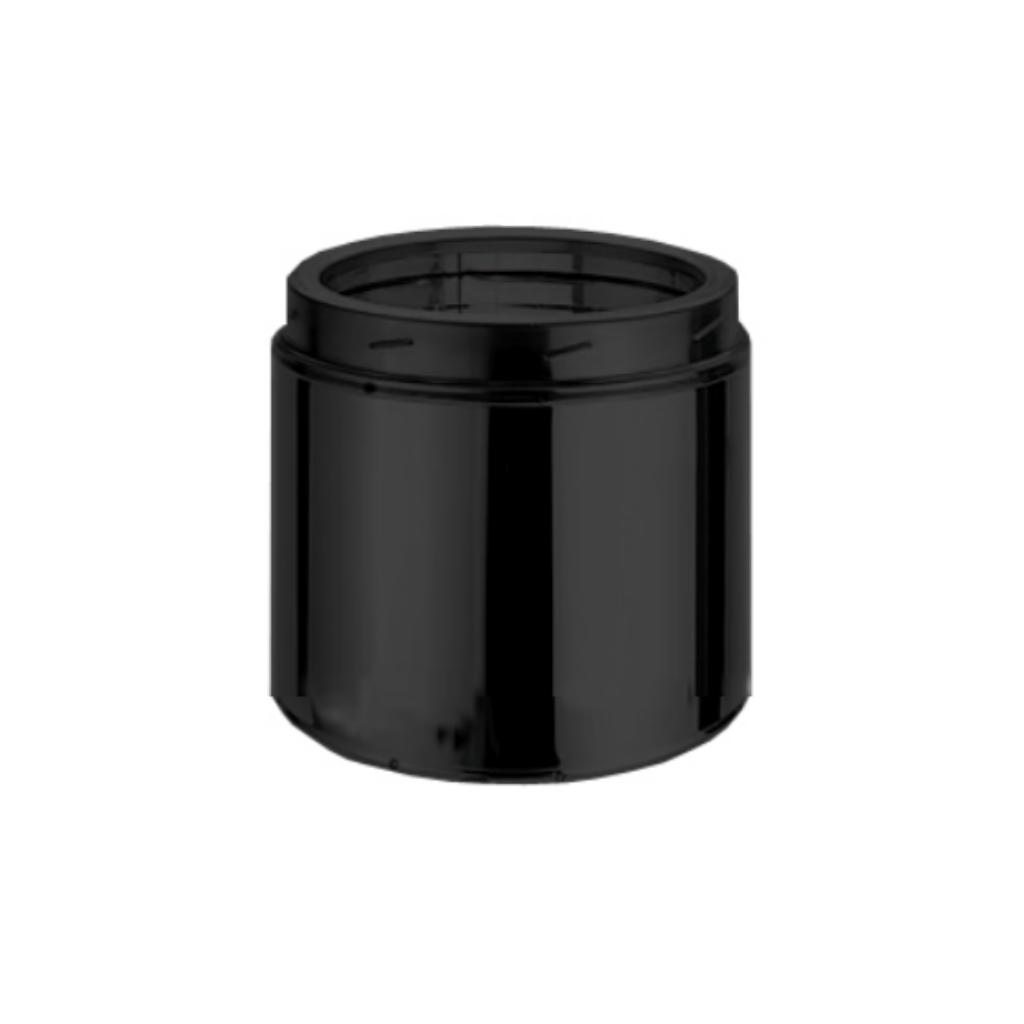

Elevate your chimney system with the DuraVent DuraTech 6" Black Chimney Pipe. Unrivaled in safety and performance, this all-fuel, double-wall chimney system is the cornerstone of secure, efficient, and enduring fireplace and stove installations. Crafted to the highest standards, DuraTech sets the industry benchmark, assuring the utmost in fireplace safety and energy efficiency.
Wrapped in a Thermal Tech blanket insulation, DuraTech features double walls that maintain a cool exterior while ensuring optimal flue gas temperatures for top-notch draft performance. The inner wall, a substantial 25% thicker than its competitors, adds an extra layer of protection, eliminating the need for locking bands or mechanical fasteners. Say goodbye to complicated installations; DuraTech's sleek 1" wall design makes it easy to fit even through 16" on-center framing. For tight spaces, we've got you covered with the Reduced Clearance Square Ceiling Support Box (for 6" diameter DuraTech only).
Engineered to withstand continuous operation at 1000°F flue gas temperatures, DuraTech surpasses UL standards with an impressive one-hour endurance at 1400°F and three ten-minute chimney fire tests at a scorching 2100°F. Your safety is our priority, and DuraTech doesn't compromise.
Benefits:
- Exceptional Safety: DuraTech boasts a 25% thicker inner wall, ensuring your peace of mind.
- Versatile Application: Ideal for wood stoves, fireplaces, boilers, and more, fueled by wood, oil, coal, or gas.
- Easy Installation: The sleek 1" wall design and twist-lock fittings simplify setup, saving you time and effort.
- Diverse Sizing: Choose from various diameters and lengths to meet your specific needs.
- Innovative Swivel Base: No need to reposition the elbow; DuraTech's swivel base streamlines installation.
- UL-Listed Shrouds: Customize your termination for a sleek, safe finish.
- Lifetime Warranty: Benefit from the best warranty in the industry, offering you peace of mind.
Product Details:
| Model | DuraTech 6" |
| Part no. | 6DT-09B |
| Inner Diameter, A | 6 inch |
| Outer Diameter, B | 8 inch |
| Pipe Length | 9 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Finish Material | Black |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot-long pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
