Description

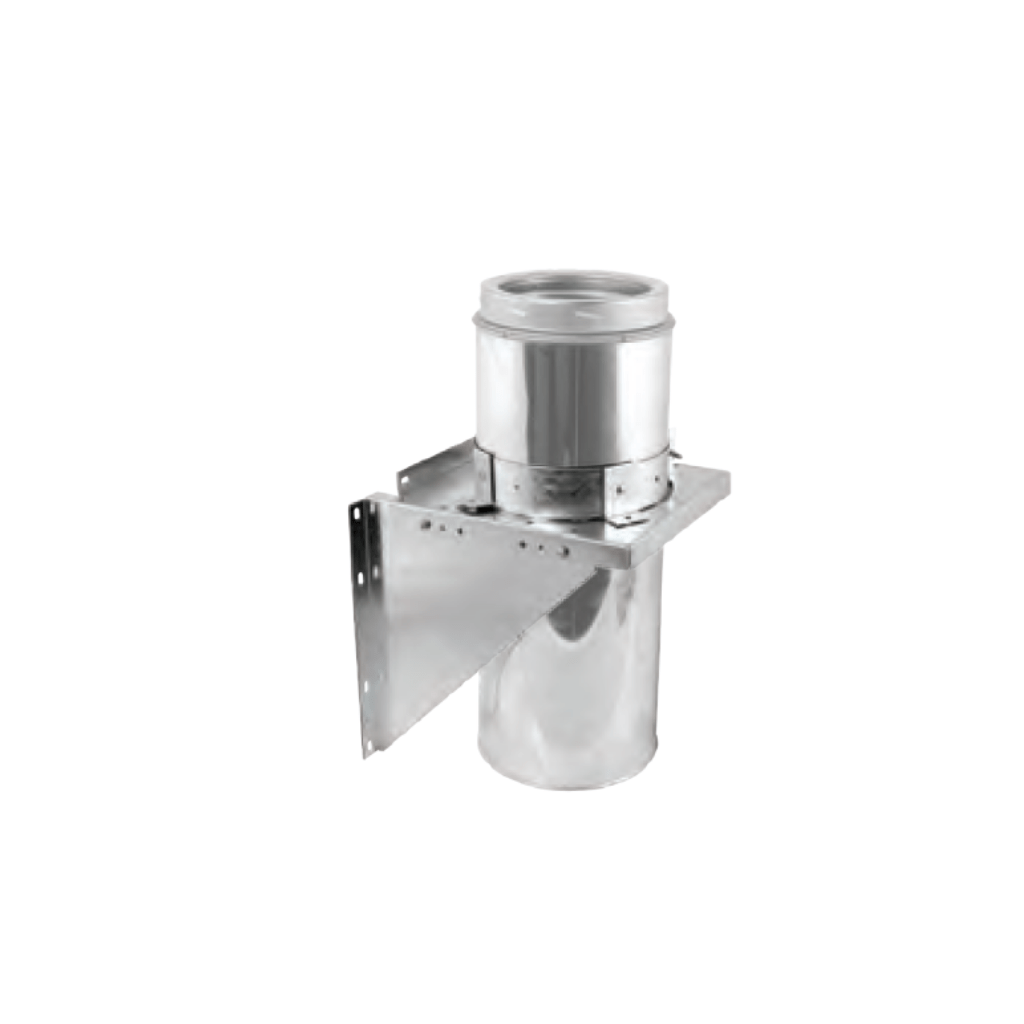

When it comes to the safety and stability of your chimney system, there's no room for compromise. Introducing the DuraVent DuraTech 6" Adjustable Tee Support Bracket – the ultimate solution for securing your chimney and ensuring peace of mind.
Crafted with precision and designed for versatility, this support bracket is your trusted companion in the world of chimney systems. Whether you're using it with wood stoves, fireplaces, furnaces, boilers, or other wood, oil, coal, or gas-fueled appliances, the DuraTech Adjustable Tee Support Bracket is here to support you.
Benefits:
- Reliable Stability: Safeguard your chimney with confidence. This support bracket ensures rock-solid stability, allowing you to enjoy the warmth of your fireplace worry-free.
- Flexible Installation: The DuraTech bracket is versatile, accommodating both above and below the Tee installations. When placed below the Tee, it requires only a short section of pipe, thanks to its adjustable base with 2" to 6" clearance to the wall.
- Impressive Capacity: With the option to use straps (though they're optional), this bracket supports up to 70 feet of DuraTech Chimney, providing unparalleled flexibility and peace of mind.
- Quality Materials: Crafted with a double-wall construction, the inner wall features durable 430 stainless steel, while you can choose from 430 stainless steel or galvalume steel for the outer wall. Refractory insulation between the walls and stainless steel end rings provide extra durability.
- Easy Installation: Featuring twist-lock fittings and swivel base elbows, installation is a breeze. Say goodbye to complex locking bands and mechanical fasteners.
- Variety of Options: Choose from a wide range of diameters and lengths to meet your specific needs, all backed by over 50 years of manufacturing expertise.
- UL-Listed Shroud: Create a secure UL-listed shroud to hide the termination at the top of your chase, ensuring the safest installation.
- Peace of Mind: DuraTech stands by its product with a Limited Lifetime Warranty - a testament to its quality and your confidence. Enjoy 100% coverage for the first 15 years, and up to 50% for the subsequent 15 years, ensuring a worry-free installation.
Product Details and Dimensions:
| Size | 6” Diameter SS Adjustable Tee Support |
| A | 8” |
| B | 10” |
| C | 11” |
| D | 11 3⁄4” |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot-long pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
