Description

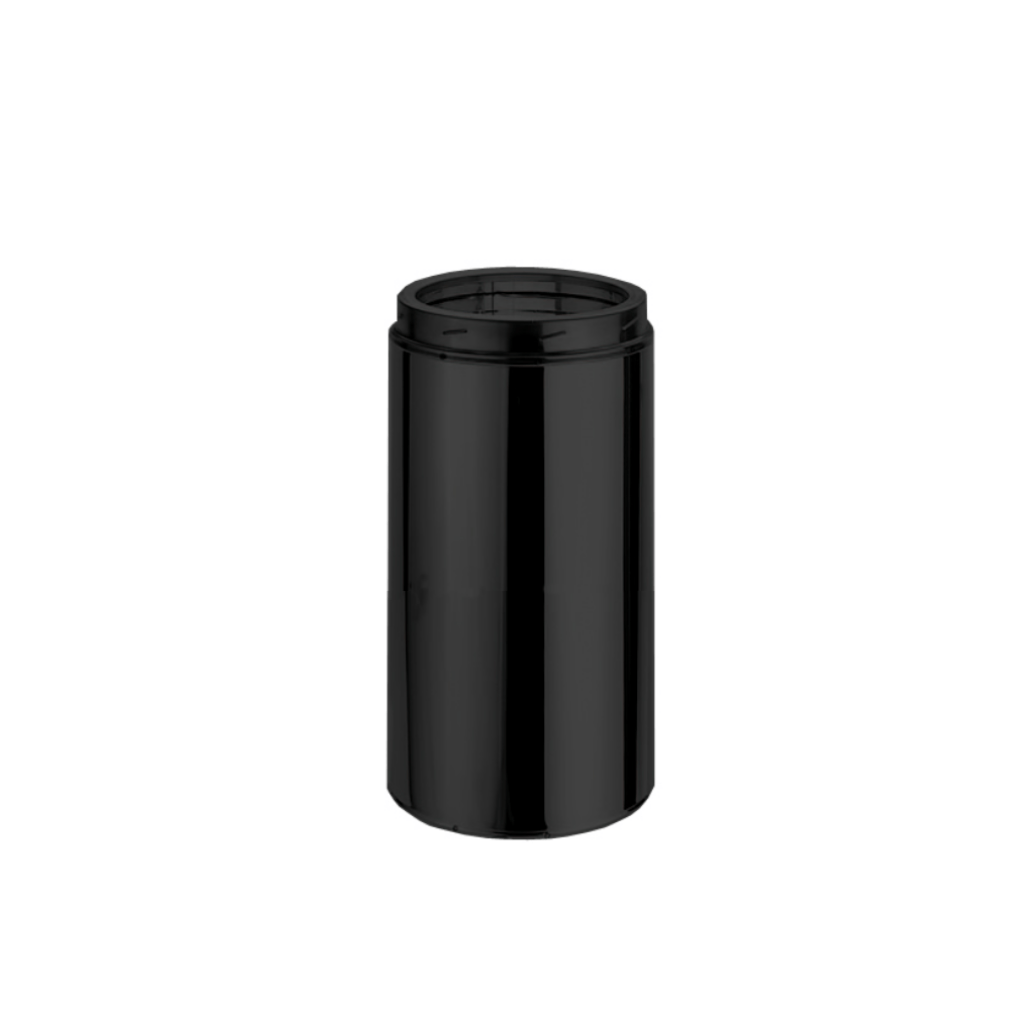

Introducing the DuraVent DuraTech 7" Black Chimney Pipe, a pinnacle of chimney engineering that promises to elevate your safety and heating experience. This chimney system is UL 103 HT and ULC S604 certified, ensuring it meets the highest industry standards for quality and performance.
DuraTech is crafted with innovation in mind. Its unique design features a Thermal Tech blanket insulation nestled between dual walls, delivering unmatched safety by keeping the exterior cool while ensuring your flue gases maintain the perfect temperature for optimal draft performance. The inner wall is 25% thicker than its competitors, providing an extra layer of security without the need for locking bands or mechanical fasteners.
This 7" chimney pipe boasts a sleek 1" wall design that simplifies installations, especially when working with 16" on-center framing. It's built for the long haul, capable of handling 1000°F flue gas temperatures during continuous operation. Plus, it endures the most rigorous tests, including a one-hour trial at a scorching 1400°F and three ten-minute chimney fire tests at a blistering 2100°F.
Benefits:
-
Safety First: With its double-wall construction and impressive insulation, DuraTech ensures the exterior remains cool while maintaining optimal flue gas temperatures. This reduces fire risks and enhances safety.
-
Easy Installation: The 1" wall design and twist-lock fittings make installation a breeze. No need for locking bands or mechanical fasteners, saving you time and effort.
-
Versatile Application: DuraTech suits wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more. It's the ideal solution for various appliances fueled by wood, oil, coal, or gas.
-
Outstanding Durability: Crafted from high-quality materials and featuring a 25% thicker inner wall, DuraTech ensures longevity and peace of mind.
-
Innovative Design: The swivel base simplifies elbow alignment, saving time and money during installation. You get everything you need for a code-approved offset.
-
Variety of Options: DuraTech comes in various diameters and lengths, making it suitable for a wide range of projects.
-
Exceptional Warranty: Enjoy the best warranty in the industry. With a limited lifetime warranty and up to 15 years of coverage, DuraTech provides unmatched peace of mind.
Product Details:
| Model | DuraTech 7" |
| Part no. | 7DT-09B |
| Inner Diameter, A | 7 inch |
| Outer Diameter, B | 9 inch |
| Pipe Length | 9 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Finish Material | Black |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
