Description

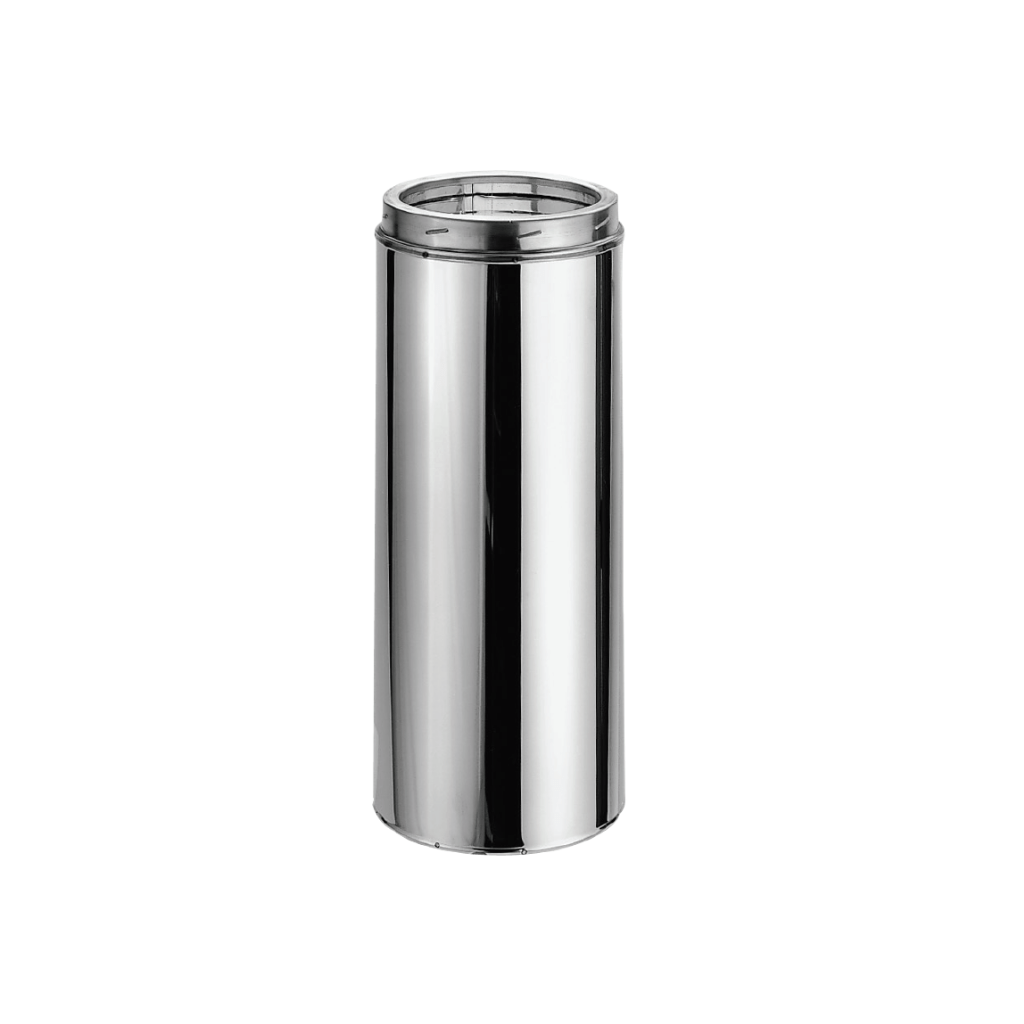

Introducing DuraVent DuraTech - the pinnacle of chimney systems. Designed for those who value safety and performance above all else, this 7" Galvalume Steel Chimney Pipe redefines reliability. It's not just a pipe; it's your gateway to worry-free warmth.
With DuraTech, you're investing in a chimney system that goes above and beyond. Its double-wall construction, meeting the rigorous UL 103 HT and ULC S604 standards, ensures optimum safety. A Thermal Tech blanket insulation, nestled between dual walls, keeps the outer wall cool while guaranteeing high flue gas temperatures, ensuring a smooth and efficient draft.
But that's not all – the inner wall boasts a 25% thickness advantage over competitors, delivering an added layer of protection without the need for locking bands or mechanical fasteners. Installation has never been easier, thanks to the sleek 1" wall design, which allows for hassle-free setups through 16" on-center framing.
Worried about high flue gas temperatures? Fear not, as DuraTech is built to withstand continuous operation at 1000°F, going through the grueling UL tests, including one hour at 1400°F and three ten-minute chimney fire tests at 2100°F. When it comes to safety and performance, DuraTech is second to none.
Benefits:
1. Superior Safety: DuraTech's double-wall design, meeting stringent UL standards, ensures the utmost safety for your chimney system.
2. Easy Installation: With its sleek 1" wall design, DuraTech simplifies installation, even in tight spaces.
3. Wide Compatibility: Perfect for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more.
4. Temperature Resilience: Designed for operation at 1000°F, DuraTech surpasses industry standards for high-temperature performance.
5. No-Fuss Maintenance: Say goodbye to locking bands and fasteners, making your life easier.
6. Versatile Sizing: DuraTech offers a wide range of diameters and lengths, ensuring compatibility with your specific needs.
7. Trusted Quality: Backed by over 50 years of industry leadership, DuraTech is your assurance of quality and reliability.
Product Details:
| Model | DuraTech 7" |
| Part no. | 7DT-06 |
| Inner Diameter, A | 7 inch |
| Outer Diameter, B | 9 inch |
| Pipe Length | 6 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.021” Galvalume Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
