Description
When it comes to chimney installations that defy the ordinary, look no further than the DuraVent DuraTech 7" Stainless Steel Elbow Kit. For those occasions when your chimney needs to maneuver around rafters, ridgepoles, or joists, this kit is your reliable solution. With its 360° swivel base, you'll have the freedom to craft offsets with unparalleled ease and precision.
DuraTech is designed to meet the highest standards, ensuring both safety and efficiency in your venting system. Whether you're working with wood stoves, fireplaces, furnaces, boilers, ranges, or even zero-clearance fireplaces, our kit is your trusted companion. This system is the embodiment of quality, brought to you by the industry leader with over 50 years of manufacturing experience.
Benefits:
1. Flexible Offset Creation: Craft offsets around any obstruction with confidence, thanks to the 360° swivel base. No angle is too challenging for our stainless steel elbow kit.
2. All-Fuel Versatility: This kit works seamlessly with a wide range of appliances, including wood stoves, fireplaces, furnaces, and more. It's compatible with wood, oil, coal, or gas-fueled systems, as well as factory-built zero-clearance fireplaces.
3. Premium Materials: Our 7" diameter pipe boasts a robust inner wall made from .020" 430 stainless steel, providing durability and longevity. The outer wall options include .016" 430 stainless steel or .021" galvalume steel, both designed to withstand the test of time.
4. Hassle-Free Installation: Say goodbye to the complexities of locking bands and mechanical fasteners. DuraTech features twist-lock fittings that make installation a breeze, saving you time and effort.
5. UL-Listed Shroud: Conceal your chimney termination with ease. Our kit's shroud specs allow you to create a UL-listed shroud for a clean and safe installation at the top of your chase.
6. Unmatched Variety: DuraTech offers a wide range of diameters and lengths, ensuring you can find the perfect fit for your project. It's versatile to suit your unique needs.
7. Peace of Mind: Enjoy the industry's best warranty with DuraTech. Our limited lifetime warranty provides 100% coverage for the first 15 years and 50% coverage beyond that. You and your home deserve nothing less than the utmost peace of mind in your quality installation.
Product Details:

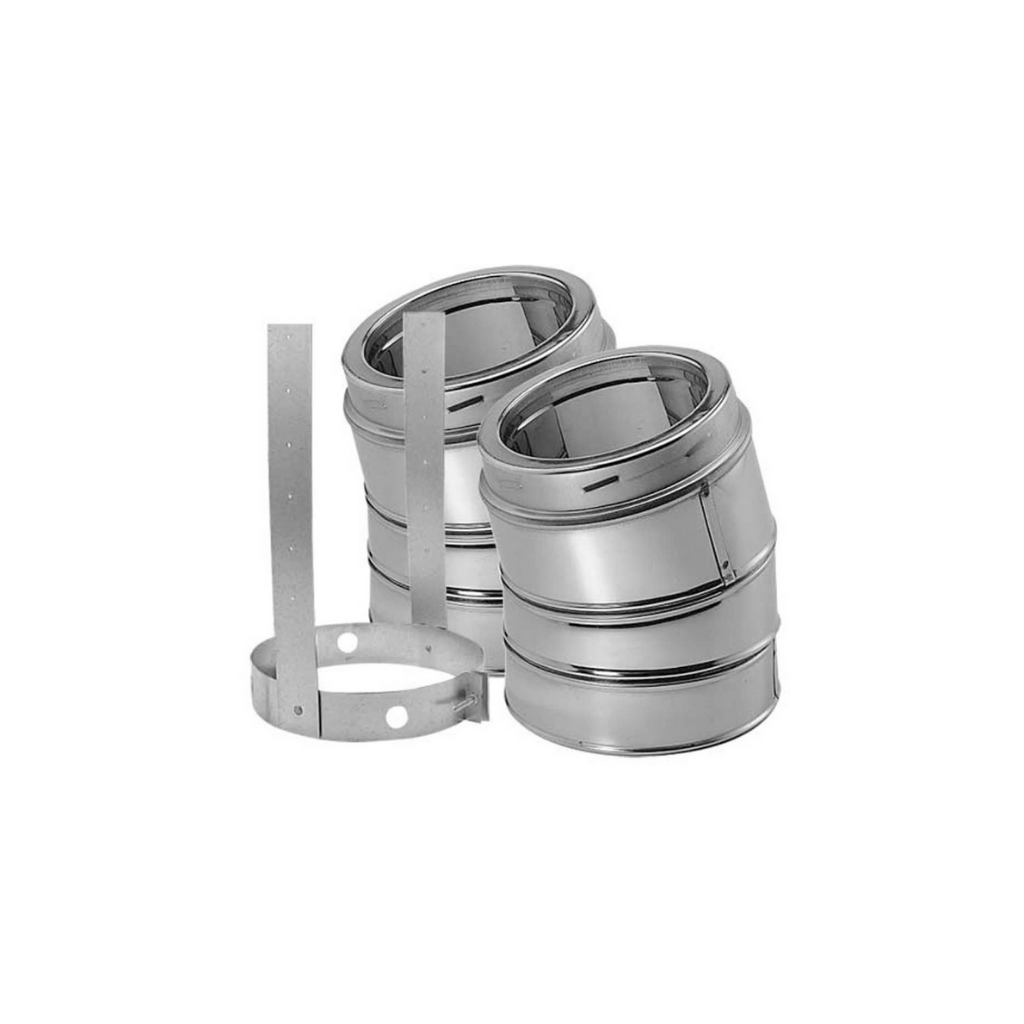

- Part no. 7DT-E15KSS 15° Elbow Kit
- Part no. 7DT-E30KSS 30° Elbow Kit
- Elbow Kit includes: 2 Elbows and 1 Elbow Strap
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
