Description
When it comes to the heart of your home, your chimney system is the unsung hero, ensuring safety and performance. The DuraVent DuraTech 8" All-Fuel Chimney Pipe is here to provide you with the peace of mind you deserve. Crafted to meet the rigorous standards of UL 103 HT and ULC S604, this double-wall chimney system is your gateway to superior safety and optimal performance.
At its core, DuraTech features a Thermal Tech blanket insulation nestled between dual walls. This ingenious design keeps the outer chimney wall cool, even as it maintains high flue gas temperatures, ensuring an impeccable draft performance. You'll find that the inner wall is 25% thicker than its competitors, delivering an extra layer of security. The best part? No more fumbling with locking bands or mechanical fasteners during installation.
With a sleek 1" wall design, DuraTech simplifies the installation process, allowing you to breeze through 16" on-center framing effortlessly. Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraTech goes above and beyond by enduring a series of high-temperature tests, including a one-hour trial at 1400°F and three ten-minute chimney fire tests at a blistering 2100°F. Your safety is our priority.
Benefits:
-
All-Fuel Versatility: Whether you're fueling your home with wood, oil, coal, or gas, DuraTech has you covered. It's compatible with wood stoves, fireplaces, boilers, ranges, water heaters, and more. Plus, it's perfect for zero-clearance fireplaces that come factory-built.
-
Exceptional Construction: The 8" diameter pipe boasts an inner wall made of 0.020” 430 stainless steel, ensuring longevity and robustness. The outer wall options, featuring .016” 430 stainless steel or .021” galvalume steel, offer the utmost protection. Refractory insulation sits snugly between these walls, providing an added layer of safety.
-
Easy Installation: DuraTech simplifies your installation process with twist-lock fittings, support boxes equipped with starter sections, and 360° swivel base elbows. You won't need locking bands or mechanical fasteners, saving you time and money.
-
Swivel Base Convenience: Say goodbye to time-consuming adjustments. DuraTech's swivel base elbows allow for easy alignment without the hassle of unlocking and repositioning. Plus, you get an elbow support bracket to ensure a code-approved offset.
-
Peace of Mind: DuraTech offers the industry's best warranty—a limited lifetime warranty. It's a testament to the quality and durability of this product, with 15 years at 100% and another 15 years at 50%. Your installation is safeguarded, giving both you and your homeowner ultimate peace of mind.
-
Tailored Installation: For a seamless installation experience, refer to our Typical Installation guide to select the right components. The DVL/DuraBlack Chimney Adapter, Wall Thimble, Attic Insulation Shield, and Firestop Radiation Shield ensure a safe and efficient setup.
Product Details:

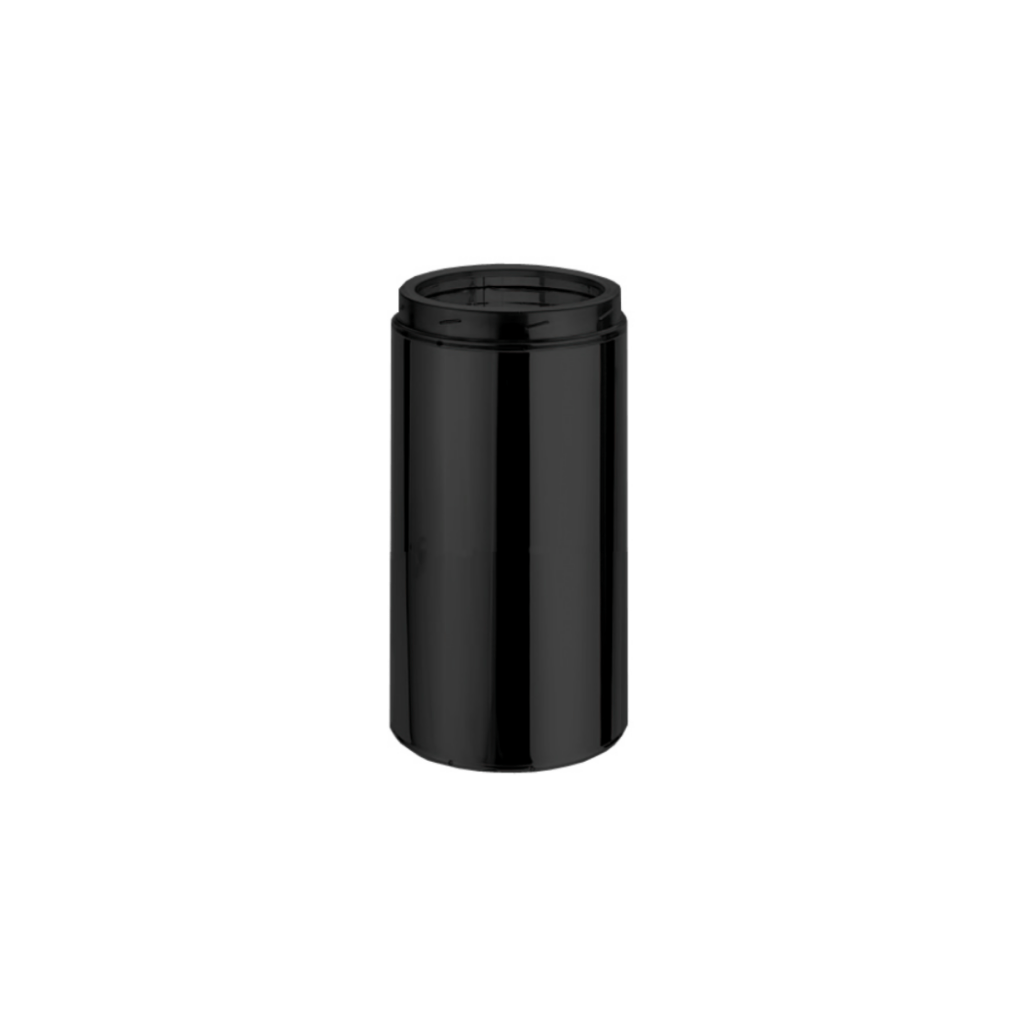

| Model | DuraTech 8" |
| Part no. | 8DT-12B |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 12 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Finish Material | Black |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
