Description

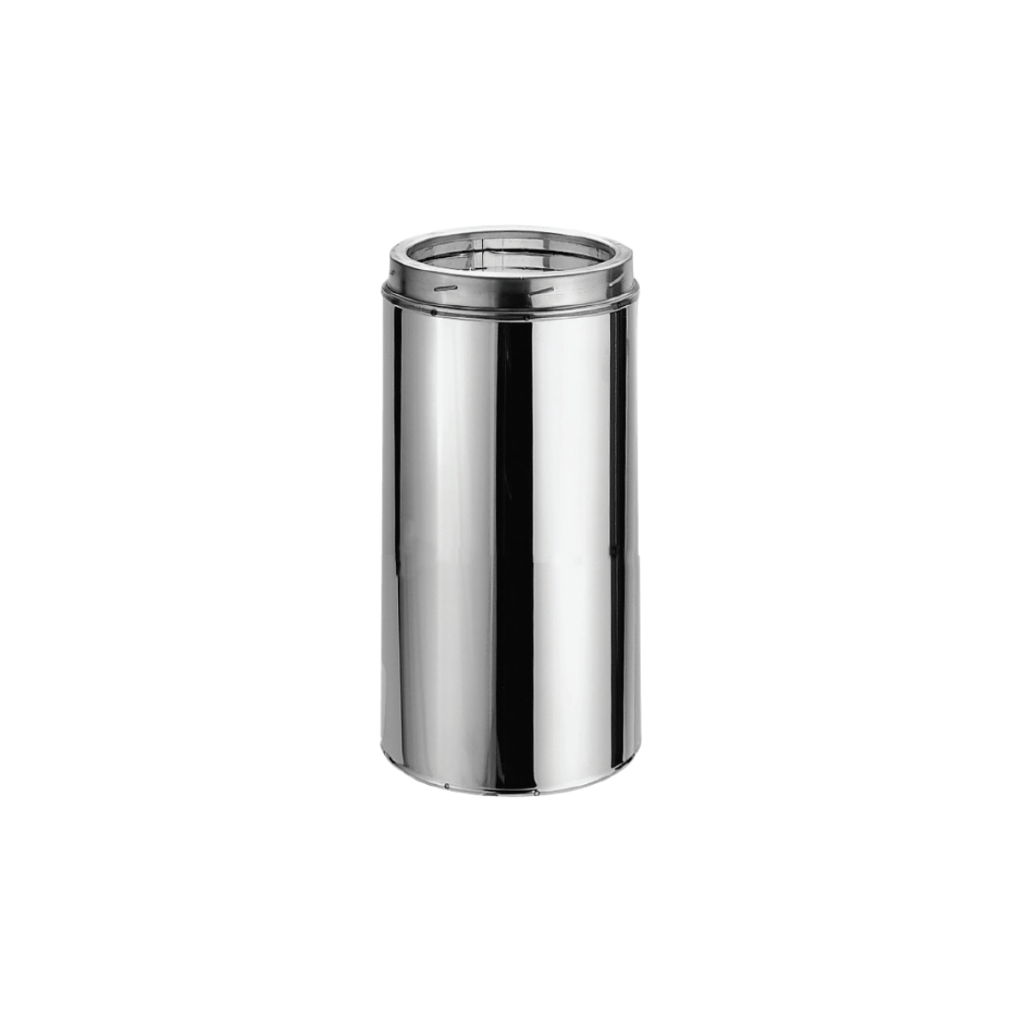

When it comes to safeguarding your home and ensuring optimal heating performance, the DuraVent DuraTech 8" Stainless Steel Chimney Pipe stands as your reliable and trusted partner. This double-wall chimney system is designed to meet and exceed your highest expectations, providing peace of mind and unrivaled performance.
DuraTech boasts a cutting-edge Thermal Tech blanket insulation, discreetly enclosed between its dual walls. This innovative feature ensures the outer surface of your chimney remains cool, all while delivering high flue gas temperatures to maximize draft efficiency. With an inner wall that is 25% thicker than competing chimneys, this system offers an extra layer of protection without the need for cumbersome locking bands or mechanical fasteners.
Ease of installation is a priority with DuraTech. Its sleek 1" wall design makes it a breeze to fit into 16" on-center framing, even in tight spaces. If you face space constraints, a Reduced Clearance Square Ceiling Support Box is available for 6" diameter DuraTech pipes. No matter the challenge, DuraTech's robust design rises to the occasion.
DuraTech is engineered for normal, continuous operation at temperatures up to 1000°F, making it the ideal choice for various heating appliances. It adheres to rigorous UL standards, including withstanding one hour at 1400°F and enduring three ten-minute chimney fire tests at a scorching 2100°F. When it comes to safety, DuraTech leaves no room for compromise.
Benefits:
-
All-Fuel Excellence: DuraTech is a double-wall, all-fuel chimney system suitable for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and appliances fueled by wood, oil, coal, or gas. It's also compatible with zero-clearance fireplaces that are factory-built.
-
Premium Materials: DuraTech's 8" diameter pipe features a robust inner wall made from 0.020" 430 stainless steel, ensuring durability and longevity. You can choose between outer wall options of 0.016" 430 stainless steel or 0.021" galvalume steel. Refractory insulation is securely encased between the walls, enhancing its insulation properties.
-
Easy Installation: Say goodbye to complicated installations. DuraTech comes with twist-lock fittings, support boxes featuring factory-installed starter sections, elbows with a 360° swivel base, and select black finish pipe lengths. The installer-friendly design saves time and effort, making your life easier.
-
Minimal Clearances: Enjoy peace of mind with a 2" clearance to combustibles, ensuring safety in any installation.
-
Customizable Shrouds: DuraTech offers a limited lifetime warranty, an industry leader. With 15 years of 100% coverage and an additional 15 years with 50% coverage, you and your home are guaranteed peace of mind with a quality installation.
-
Versatile Options: Select from a wide range of diameters and pipe lengths to suit your specific needs. The swivel base streamlines elbow alignment without tedious repositioning, saving time and money.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-12SS |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 12 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
