Description

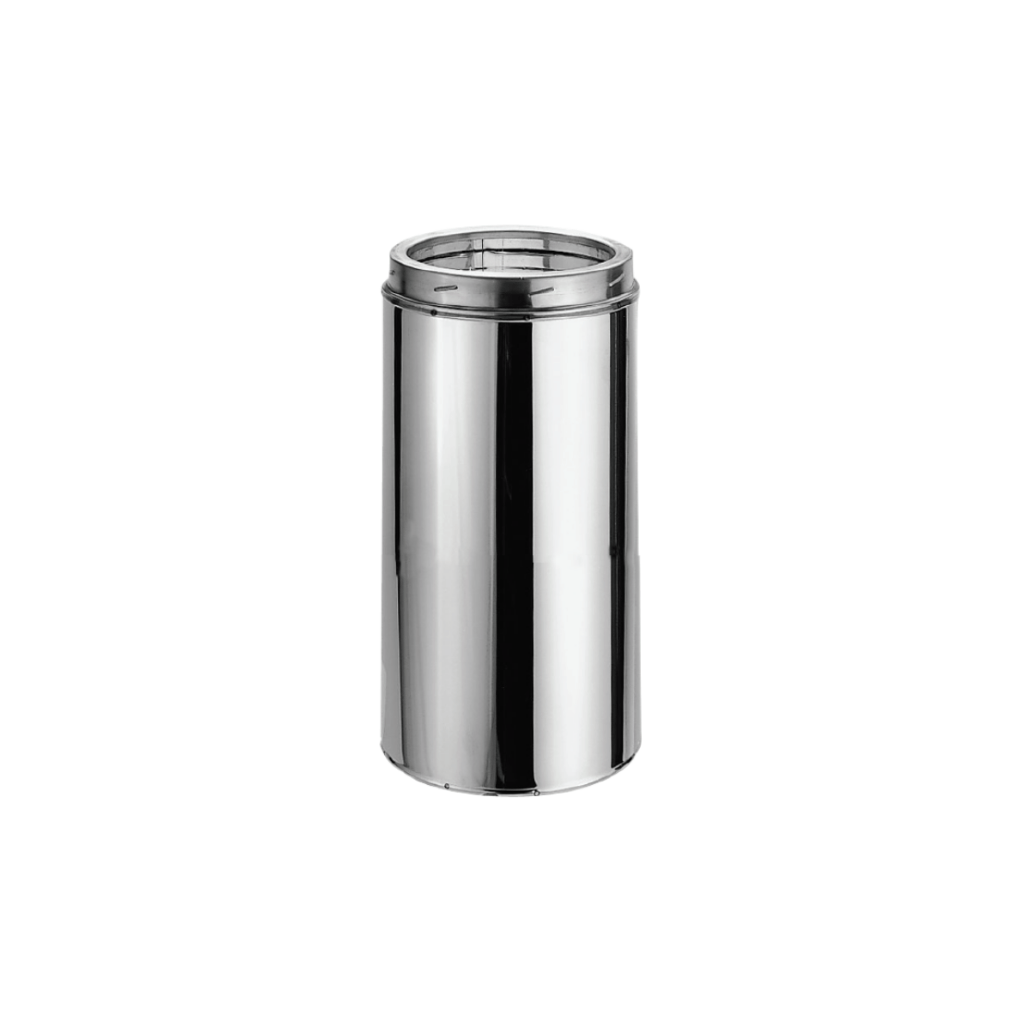

Elevate your chimney experience with the DuraVent DuraTech 8" Galvalume Steel Chimney Pipe. When it comes to safety, performance, and installation ease, this chimney pipe is second to none.
Crafted for Excellence: DuraTech is not just any chimney pipe; it's a masterpiece of engineering. With a Thermal Tech blanket insulation tucked between double walls, it ensures your chimney's outer wall remains cool while delivering high flue gas temperatures for optimal draft performance. In addition to this, the inner wall is a solid 25% thicker than the competition, providing that extra margin of safety that's crucial in any installation. Say goodbye to locking bands and mechanical fasteners; DuraTech simplifies the process with its sleek 1" wall design, making installations through 16" on-center framing a breeze.
Designed for Endurance: DuraTech isn't just about ease; it's about resilience. It's designed for continuous operation at flue gas temperatures of up to 1000°F. But we didn't stop there; it goes through rigorous tests, including an hour at 1400°F and three ten-minute chimney fire tests at 2100°F. Your safety is our priority, and DuraTech proves it.
Effortless Installation: DuraTech's ingenuity extends to its installation process. For tight spots, consider the Reduced Clearance Square Ceiling Support Box designed exclusively for 6" diameter DuraTech. It's a testament to our commitment to making your installation as smooth as possible.
Benefits:
- All-fuel, double-wall chimney system for ultimate versatility.
- Extra safety with a 25% thicker inner wall.
- Simplified installation with the sleek 1" wall design.
- Endurance tested for your peace of mind.
- Reduced Clearance Square Ceiling Support Box for tight installations.
- Suitable for various applications, from wood stoves to zero-clearance fireplaces.
- Backed by a Limited Lifetime Warranty for unmatched confidence.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-09 |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 9 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.021” Galvalume Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot-long pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
