Description

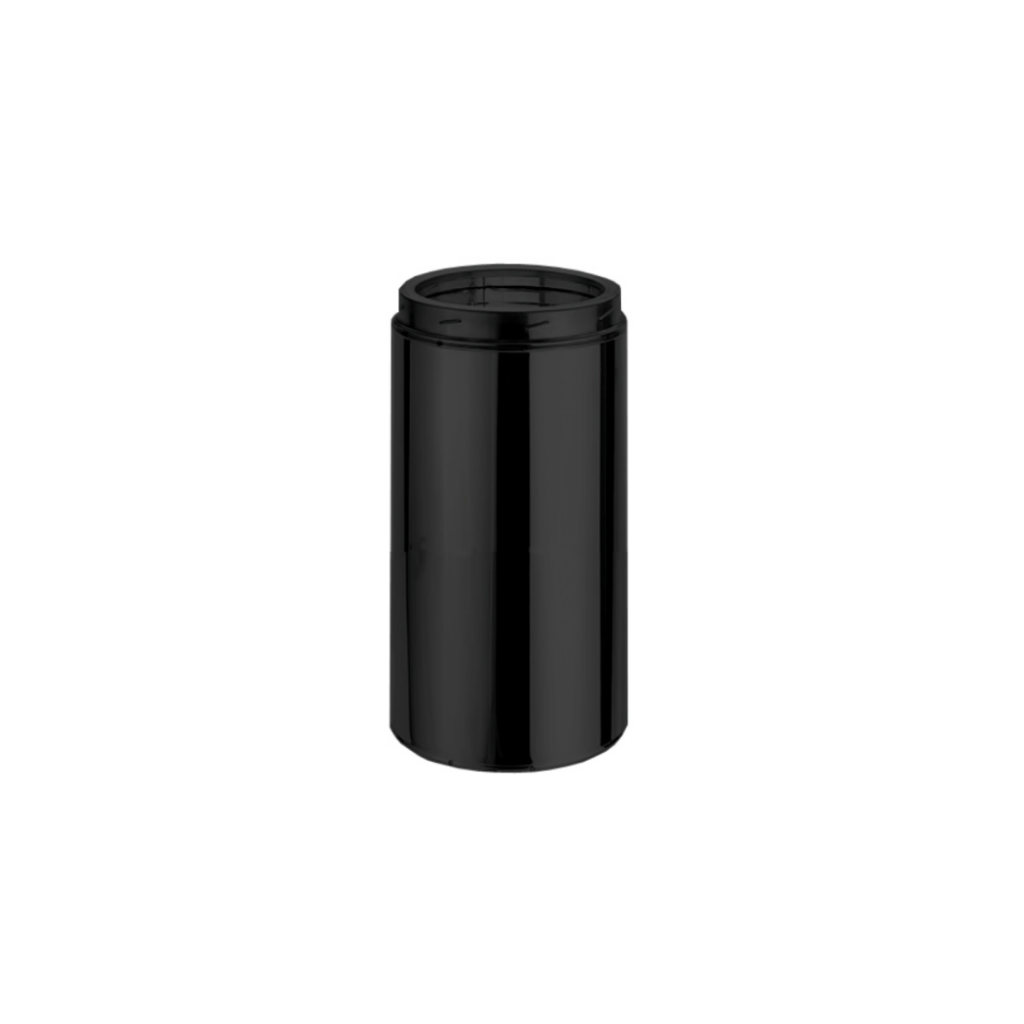

Are you seeking the epitome of safety and performance in your chimney system? Look no further than the DuraVent DuraTech 8" Black Chimney Pipe. This all-fuel, double-wall chimney system sets the gold standard for your heating appliances. Crafted with unwavering commitment to safety, this chimney pipe marries innovation and reliability, making it your go-to choice for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more.
The DuraTech chimney pipe features a unique Thermal Tech blanket insulation that lies snugly between dual walls. This remarkable design ensures that the outer wall of the chimney remains cool, even as it maintains higher flue gas temperatures, offering you exceptional draft performance. What sets DuraTech apart is its 25% thicker inner wall compared to rival chimneys, providing an added layer of security. Say goodbye to the hassle of locking bands or mechanical fasteners – DuraTech simplifies your installation process with its sleek 1" wall design that accommodates 16" on-center framing.
Designed for continuous operation at temperatures up to 1000°F, DuraTech undergoes rigorous testing, including enduring one hour at 1400°F and three ten-minute chimney fire tests at a blistering 2100°F. When you choose DuraTech, you're choosing the highest standards of safety, quality, and peace of mind.
Benefits:
-
Optimal Safety: DuraTech's double-wall construction and Thermal Tech insulation keep the outer wall cool while ensuring high flue gas temperatures for a superior draft.
-
Easy Installation: The sleek 1" wall design simplifies installation, fitting neatly into 16" on-center framing without the need for locking bands or mechanical fasteners.
-
Wide Application: Suitable for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more, this chimney system works with a range of heating appliances.
-
Versatile Sizing: DuraTech offers a variety of diameters and lengths, ensuring you find the perfect fit for your needs.
-
Swivel Base: The 360° swivel base on elbows allows for precise alignment without the hassle of unlocking and repositioning.
-
UL-Listed Shroud: Shroud specs enable you to create a UL-listed shroud, ensuring the safest installation for your chimney.
-
Unmatched Warranty: DuraTech boasts a Limited Lifetime Warranty, with 15 years at 100% and an additional 15 years at 50%, providing you with the utmost peace of mind.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-09B |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 9 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Finish Material | Black |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
