Description

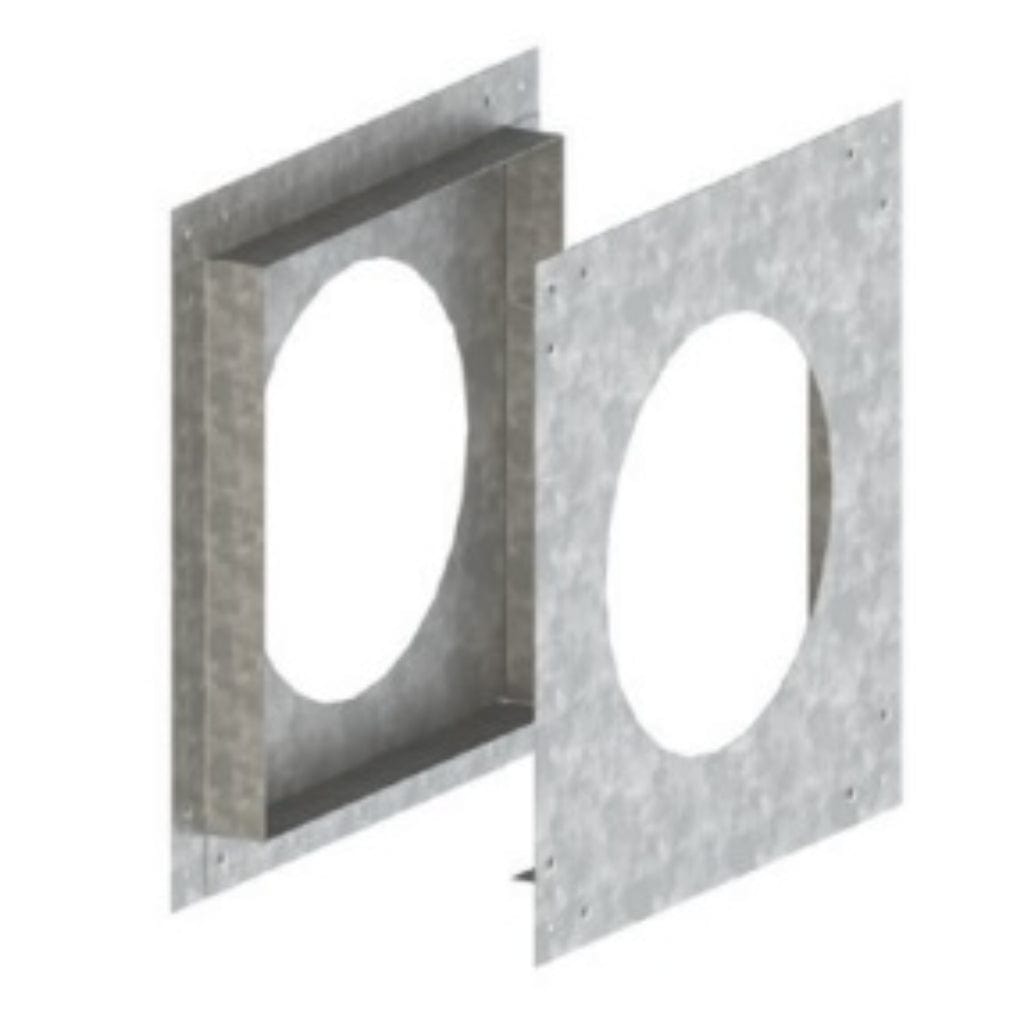

Elevate your ventilation needs with DuraVent, the undisputed leader in the venting industry. Renowned for its innovative, safety-focused solutions, DuraVent continues to revolutionize HVAC and Hearth markets. Our commitment to excellence shines through in every product we create, and the DuraVent DirectVent Pro Wall Firestop is no exception.
Unparalleled Performance
Crafted with precision, our DirectVent Pro Wall Firestop is the preferred choice of major stove and fireplace manufacturers across the United States and Canada. Its unique design features tight inner connections, eliminating the need for messy gaskets or sealants, ensuring top-notch performance while simplifying installation.
Aesthetic Brilliance
Beauty meets functionality with DuraVent's DirectVent Pro. Each black pipe length, extension, and elbow boasts laser-welded outer wall seams, resulting in a seamless, sophisticated finish that enhances any interior. Low-profile locks and an absence of hems or beads further contribute to a stunning, elegant appearance.
Safety Certification
Rest easy knowing that DuraVent's DirectVent Pro meets the highest safety standards. It has been rigorously tested and listed as a decorative gas appliance system or direct vent heater system by respected agencies like UL, CSA, and Warnock Hersey. Always check with your appliance manufacturer for approval to guarantee peace of mind.
Benefits
- Superior Ventilation: Ensure efficient airflow with tight inner connections.
- Aesthetically Pleasing: Enhance your interior with a sleek, seamless design.
- Trusted by Experts: Chosen by leading stove and fireplace manufacturers.
- Simplified Installation: No need for messy gaskets or sealants.
- Certified Safety: Meets rigorous industry safety standards for your peace of mind.
Applications
- Ideal for horizontal (through-wall) installations.
- Perfect for use with furnaces, boilers, and water heaters.
Ideal Applications
- Residential homes
- Commercial spaces
- Renovation projects
- New constructions
Specifications
| Model | Diameter | Dimension |
| 46DVA-WFS2 | 4"x6.625" | 11" x 11" x 9" |
| Applications | Direct vent gas, propane stoves, heaters, and fireplaces | |
| Clearances | Specified by the appliance manufacturer | |
| Listings | UL, CSA, or Warnock Hersey | |
| Warranty | Limited-lifetime warranty | |
Typical Installation
To determine the appropriate components for your installation, please refer to our Typical Venting Installation drawings. Please refer to the following download links for more information regarding Typical Installations.
Planning Your Installation:
Determining Pipe Length and Support
For vertical gas stove installations, begin by measuring the distance from the stove outlet to the ceiling. This measurement will help you determine the required length of black pipe. Your next step is to choose between a ceiling support/wall thimble cover or a cathedral ceiling support box for the installation.
To calculate the length of galvanized pipe needed, measure the thickness of the ceiling and the vertical rise in the attic or second story. Firestops are essential at each floor level beyond the initial ceiling support/wall thimble cover or cathedral ceiling support box. If an obstruction necessitates an offset, use a pair of 45° elbows. Ensure proper support by utilizing elbow straps for offsets and wall straps for extended vertical runs. Don't forget to incorporate an attic Insulation Shield if the installation passes through an attic space.
Roof Pitch and Termination
Take into account the roof pitch and select the appropriate flashing and storm collar. Determine the minimum height required above the roof for proper venting.
For horizontal installations, refer to the appliance manufacturer's instructions for the minimum rise and maximum horizontal run specifications. If height constraints impede adequate rise above the appliance, consider employing a snorkel termination. Additionally, choose the suitable Horizontal Termination Cap as specified in the appliance manufacturer's installation instructions. To protect vinyl siding, opt for a vinyl siding standoff. Always review the appliance manufacturer's guidelines for wall thimble and firestop prerequisites.
Design Recommendations
We offer these design recommendations as general guidelines to aid in selecting the right venting components for your installation. Please adhere to DuraVent's Installation instructions included with the cap or support box before commencing your chimney system installation. You can find detailed installation instructions online at www.duravent.com under Catalogs and Instructions. It's crucial to check the manufacturer's rating plate and instruction manual to confirm that the DuraVent direct vent system is approved for use with your specific brand-name appliance.
-
Match Pipe Diameters: Ensure that both inner and outer pipe diameters align with the outlet size of your appliance.
-
Follow Appliance Guidelines: Refer to the appliance manufacturer's installation instructions to confirm the permitted vent configurations (e.g., horizontal, vertical, chimney reline) and any restrictions such as maximum horizontal run, minimum and maximum vertical rise, and maximum offset.
-
Prioritize Safety: Maintain the minimum clearances (air-space) specified in the appliance manufacturer's installation instructions between the vent pipe and nearby combustible materials. Utilize appropriate support and bracing, adhere to local building codes, and schedule inspections for your venting system to ensure fire safety and compliance.
Downloads
About the Manufacturer
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
