Description

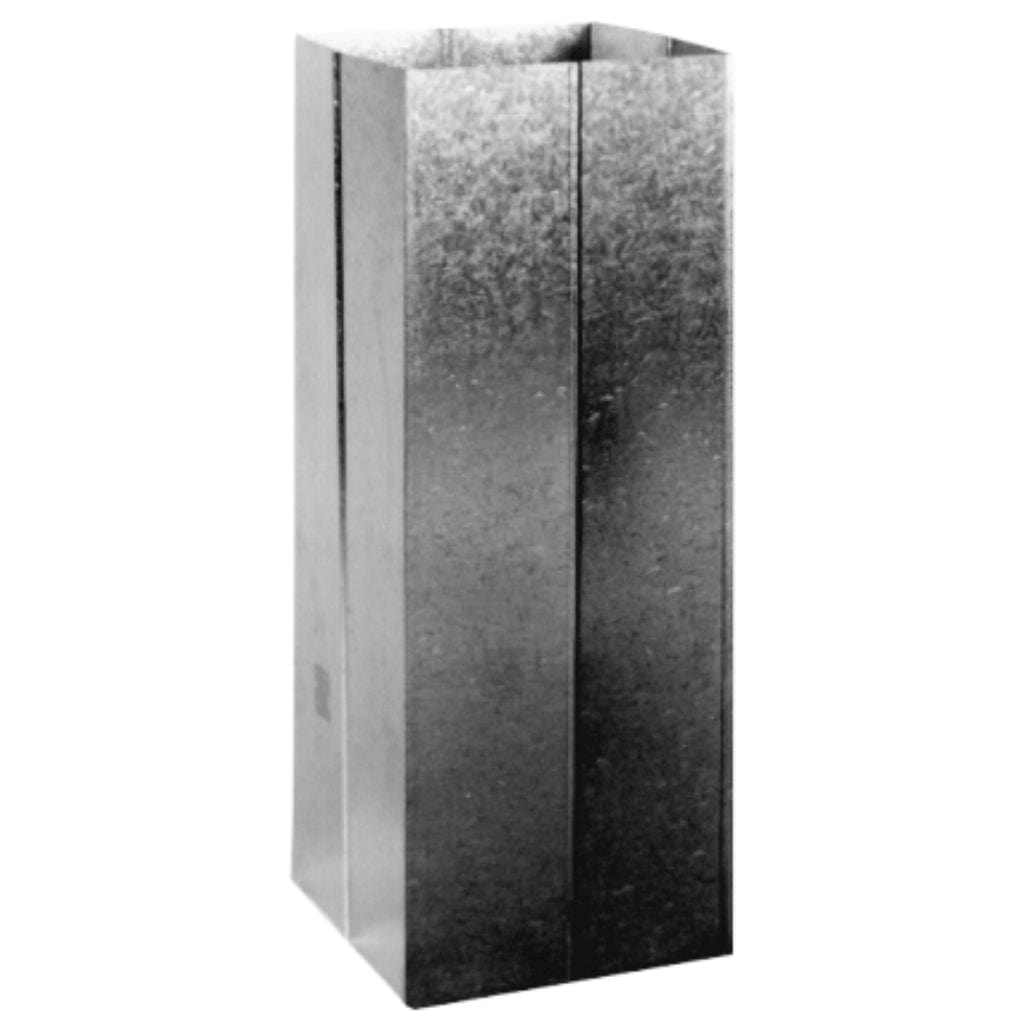

When it comes to keeping your home warm and cozy, safety is paramount. That's why we proudly introduce the DuraVent DuraPlus Close Clearance Shield, a cutting-edge chimney accessory designed to ensure your peace of mind, even in the harshest conditions.
This triple-wall chimney marvel boasts not one but two insulating layers - a refractory blanket and an air space - ensuring your chimney stays cool on the outside while delivering a hot draft on the inside. What does this mean for you? Enhanced stove efficiency, a lower risk of chimney fires, and a safeguard for both your chimney and your home. No more worrying about overheating or structural damage.
But what sets the DuraPlus Close Clearance Shield apart is its unique compressible blanket insulation. In the unlikely event of a creosote fire, this innovative feature allows the chimney liner to expand outwardly, preventing damage and ensuring your safety. Plus, with rigorous testing to withstand temperatures up to 1400°F and chimney fire tests at a scorching 2100°F, you can trust in the DuraPlus Close Clearance Shield to protect your home when it matters most.
Benefits:
- Exceptional Safety: The DuraPlus Close Clearance Shield offers unmatched fire safety, keeping you and your home protected even in the event of a chimney fire.
- Improved Efficiency: Experience enhanced stove efficiency, allowing you to enjoy more warmth with less fuel.
- Cool Exterior, Hot Interior: This triple-wall chimney maintains a cool exterior while providing a hot draft inside, ensuring a comfortable and efficient heating experience.
- Durable Construction: Crafted from quality materials, including stainless steel and galvanized steel, this shield is built to last.
- Precision Locking: The precision twist-lock connection ensures a secure fit, giving you peace of mind.
- Easy Installation: Designed for ease of installation, the DuraPlus Close Clearance Shield is a homeowner's dream.
- UL Listed & Warranty: Rest easy knowing that this product is UL Listed to UL 103HT standards and backed by a limited lifetime warranty.
Features:
- Use in installations where a 7” or 8” DuraVent chimney system passes through a roof opening with less than the normal 2” minimum clearance to roof trusses or rafters.
- Chimney pipe must be centered within Close Clearance Shield. (See installation instructions.)
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | 6DP-CCS36 | 6DP-CCS48 | 6DP-CCS60 |
| Size | 6" - 8" | 6" - 8" | 6" - 8" |
| Height | 36" (A) | 48" (A) | 60" (A) |
| Clearances | 2" clearance to combustible. | ||
| Listings | UL Listed to UL 103HT (MH7399). | ||
| Warranty | Limited-lifetime warranty | ||
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
