Description
When it comes to chimney solutions that combine superior performance with peace of mind, the DuraVent DuraPlus 15° Stainless Steel Elbow Kit stands tall. This kit isn't just an accessory; it's a vital component that ensures your chimney system operates at its best. With its innovative design, it makes obstructions like rafters, ridgepoles, or joists a breeze to navigate.
DuraPlus is engineered to keep the heat where it belongs—inside, giving you an efficient, drafty fire while keeping the exterior cool. The secret? Two layers of insulation, featuring a refractory blanket and an air space, working in perfect harmony. Say goodbye to those pesky hot spots that can occur with other insulation types. Plus, in case of a creosote fire, this kit has a trick up its sleeve. The compressible blanket insulation allows the chimney liner to expand outwardly, ensuring your safety and the protection of your building.
But that's not all. DuraPlus takes durability seriously, undergoing rigorous testing, including exposure to scorching 1400°F heat for an hour and enduring three ten-minute chimney fire tests at a blistering 2100°F. You can rest easy knowing that this kit has been through the fire and emerged stronger than ever.
Benefits:
- Seamless Offset Navigation: Easily maneuver around obstacles with precision.
- Double the Elbows, Double the Flexibility: If needed, you can use two pairs of elbows.
- Built for Safety: Designed to meet strict UL 103 standards, ensuring peace of mind.
- Full Swivel Action: Elbows swivel a full 360° at the base, making installation a breeze.
- Return to Vertical: A pair of elbows effortlessly returns your chimney to a vertical position.
- Material Mastery: Crafted from durable .016" stainless steel outer and inner walls.
- Precision Lock: Achieve a secure, twist-lock connection for optimal performance.
Features:
- Use for offsets around obstructions such as rafters, ridgepoles, or joists.
- May have two pairs of elbows, if needed.
- Offsets greater than 30° are not permitted in accordance with UL 103 standards.
- Elbows swivel 360° at the base (angles are not adjustable).
- A pair of elbows is required to return an offset chimney back to vertical.
- Available in stainless steel (KSS) or galvalume (K) outer wall.

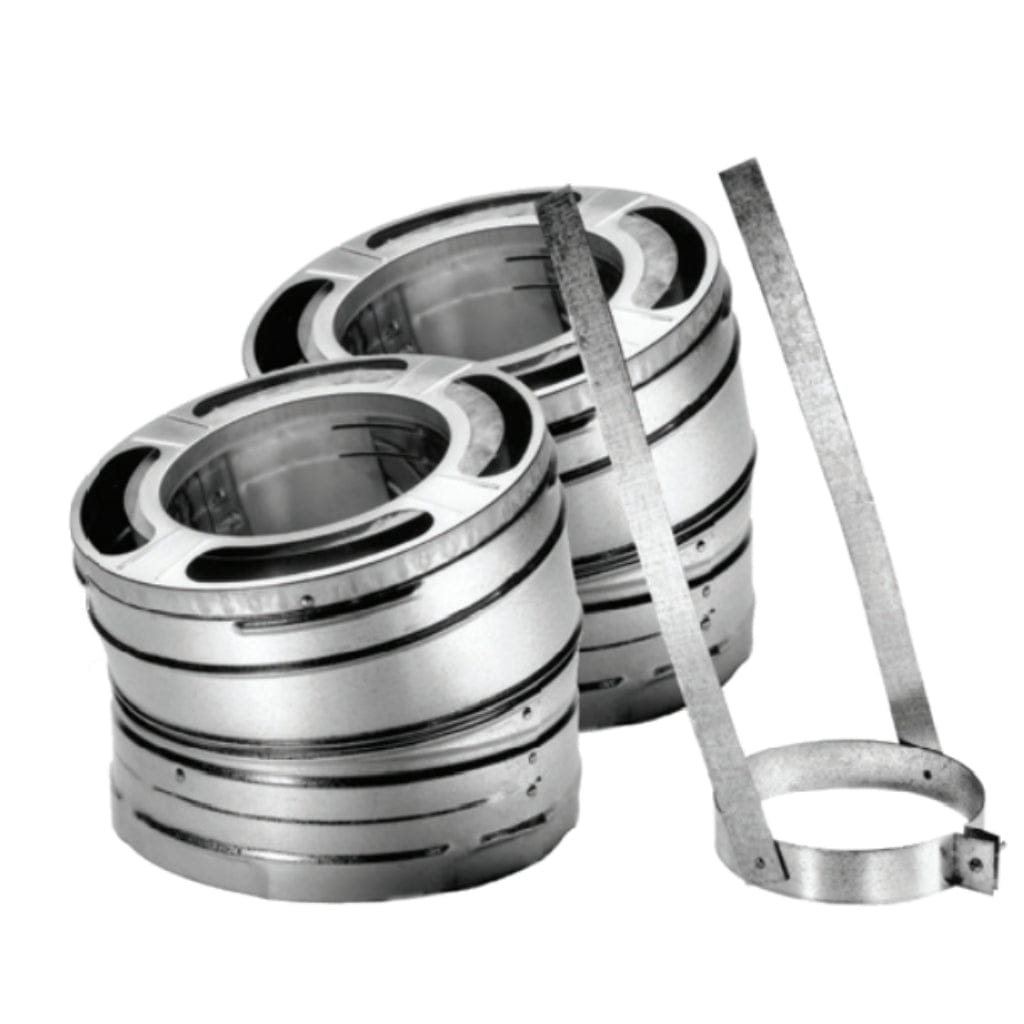

- Kit includes (2) elbows and one Elbow Strap.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | 6DP-E15KSS | 7DP-E15KSS | 8DP-E15KSS |
| Diameter | 6" | 7" | 8" |
| Dimensions | 4" (A) x 3.75" (B) | 4.25" (A) x 4.125" (B) | 4.25" (A) x 4.25" (B) |
| Clearances | 2" clearance to combustible. | ||
| Listings | UL Listed to UL 103HT (MH7399). | ||
| Warranty | Limited-lifetime warranty | ||
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
