Description
Introducing the DuraVent DuraPlus 30-Degree Elbow Kit – your key to a safer, more efficient chimney system. Crafted with precision and engineered for excellence, this kit is your trusted partner in maintaining a blazing hearth while safeguarding your home.
In the heart of the DuraPlus system lies a commitment to superior design. This triple-wall chimney kit is ingeniously built to keep the exterior cool while delivering a roaring hot draft on the inside. Say goodbye to inefficient stoves and hello to boosted performance. With not one, but two insulating layers—refractory blanket and air space—it ensures consistent temperature control and eliminates hot spots, a common issue with loose-fill insulation.
In the unlikely event of a creosote fire, our compressible blanket insulation steps up to the plate, allowing the chimney liner to expand outwardly, minimizing damage and ensuring your safety. Tested to withstand the harshest conditions, DuraPlus operates at 1000°F flue gas temperatures and endures rigorous UL standards, including one hour at 1400°F and three ten-minute chimney fire tests at 2100°F.
Benefits:
- Optimized Performance: Ensure your stove operates at peak efficiency, thanks to the hot draft generated by our triple-wall design.
- Safety First: Protect your chimney and home with fire-resistant materials and compressible insulation.
- Easy Maneuverability: Effortlessly navigate obstructions like rafters or joists with our 360° swivel elbows.
- Versatile Application: Use two pairs of elbows if needed and bring your chimney back to vertical with ease.
- Material Excellence: Choose between stainless steel or galvalume outer walls to match your preferences.

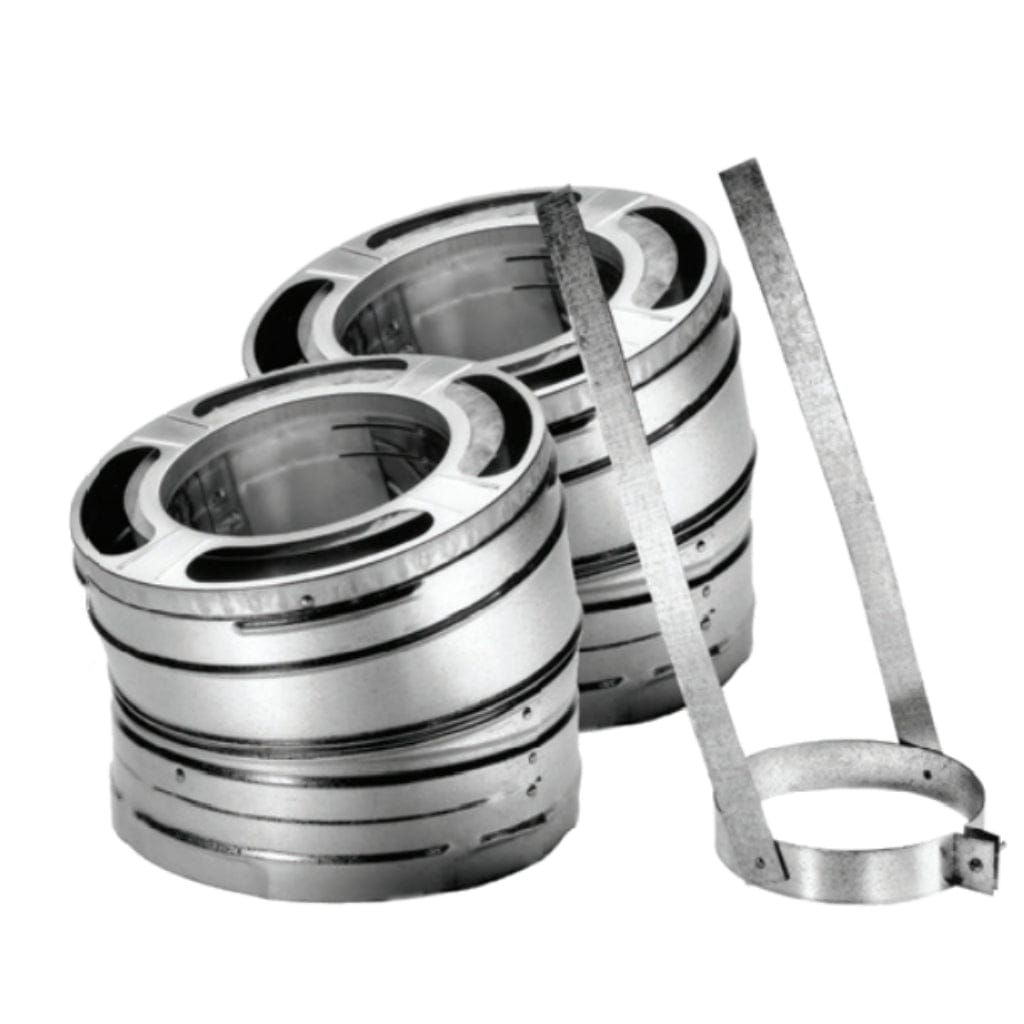

- Complete Kit: This package includes (2) elbows and one Elbow Strap for your convenience.
- Precision Engineering: Enjoy a secure fit with our twist-lock connection mechanism.
Features:
- Use for offsets around obstructions such as rafters, ridgepoles, or joists.
- May have two pairs of elbows, if needed.
- Offsets greater than 30° are not permitted in accordance with UL 103 standards.
- Elbows swivel 360° at the base (angles are not adjustable).
- A pair of elbows is required to return an offset chimney back to vertical.
- Available in stainless steel (KSS) or galvalume (K) outer wall.
- Kit includes (2) elbows and one Elbow Strap.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | 6DP-E30K | 7DP-E30K | 7DP-E30K |
| Diameter | 6" | 7" | 8" |
| Dimensions | 4.5" (A) x 4.75" (B) | 4.625" (A) x 4.75" (B) | 5" (A) x 4.75" (B) |
| Clearances | 2" clearance to combustible. | ||
| Listings | UL Listed to UL 103HT (MH7399). | ||
| Warranty | Limited-lifetime warranty | ||
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
