Description

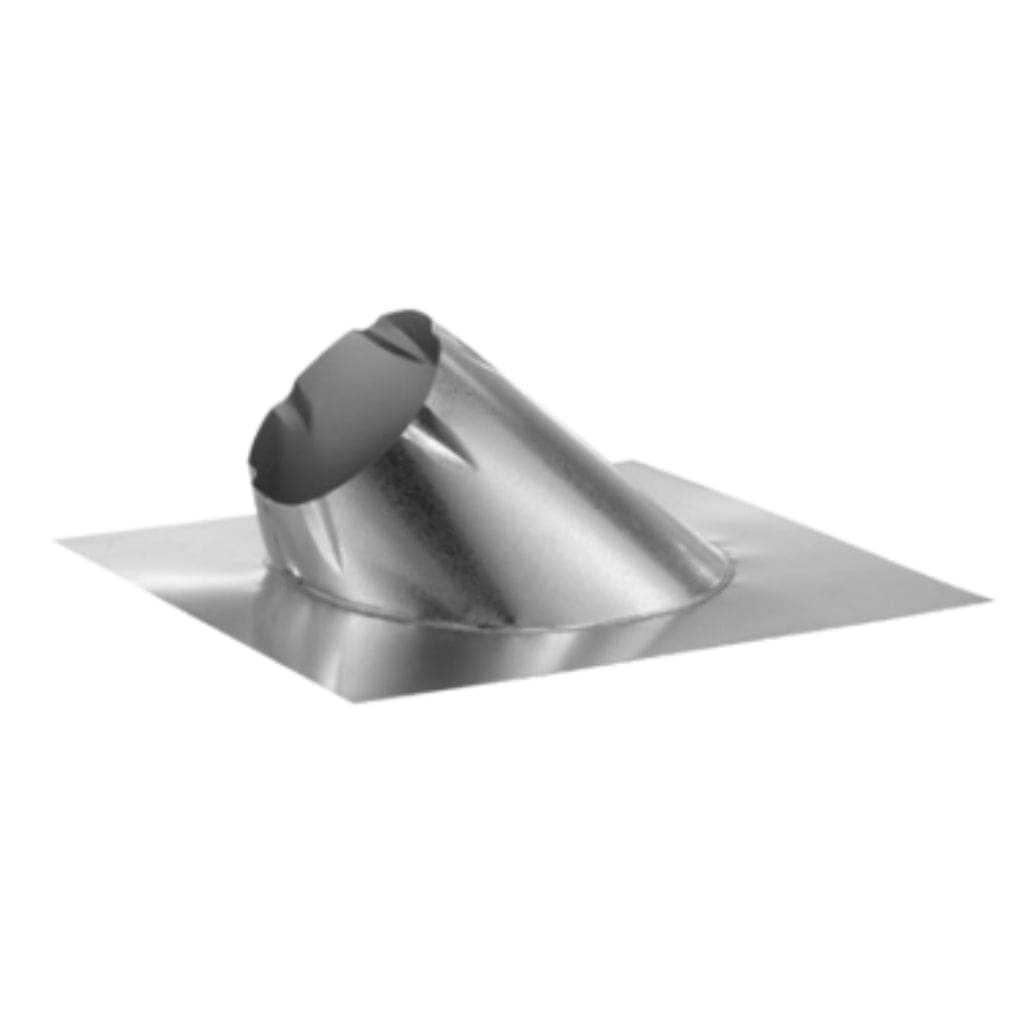

When it comes to ensuring the safety and efficiency of your chimney system, trust in the reliability of DuraVent DuraPlus Adjustable Roof Flashing. This exceptional product is designed to weatherproof the penetration of chimney pipes through your roof, providing unmatched protection for your home. As you step into the world of chimney care, make the smart choice with DuraVent.
Benefits:
-
Advanced Design: DuraPlus is engineered to stay cool on the outside while delivering a hot draft on the inside. Its innovative design boosts stove efficiency and offers a fire-safe solution that safeguards both your chimney and your home.
-
Exceptional Insulation: Featuring two insulating layers, including a refractory blanket and an air space, DuraPlus eliminates hot spots often found with loose-fill insulations. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outward, enhancing safety.
-
High-Temperature Resilience: Built to withstand normal, continuous operation at 1000°F flue gas temperatures, DuraPlus goes through rigorous testing, including exposure to extreme heat, ensuring it meets the highest safety standards.
-
Weatherproofing: Protect your roof and chimney system with this galvalume flashing. Choose the right size based on your roof pitch, and rest easy knowing your chimney penetration is sealed securely.
-
Top-Notch Materials: Crafted from quality materials, including .016” 430 stainless steel outer and inner walls, .018” galvanized steel outer wall, .018” aluminized steel intermediate liner, and insulated layers with ventilated air space, DuraPlus is built to last.
-
Precision Locking: DuraPlus locks tightly with a precision twist-lock connection, providing a secure and reliable chimney solution.
-
Versatile Sizing: Available in three sizes to suit your needs - 6", 7", and 8". Ensure you have the perfect fit for your chimney system.
Features:
- Use to weatherproof the penetration of chimney pipe through the roof.
- Storm Collar required. Select roof flashing based on the pitch of the roof.
- For example, a 6/12 pitch has a vertical rise of 6” over a horizontal distance of 12”.
- Made of galvalume.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | Size | Dimension |
| 6DP-F24 | 6" | 6" (A) x 10.75" (B) x 26" (C) x 26" (D) |
| 7DP-F24 | 7" | 6" (A) x 11.75" (B) x 26" (C) x 26" (D) |
| 8DP-F24 | 8" | 6" (A) x 12.75" (B) x 26" (C) x 26" (D) |
| Clearances | 2" clearance to combustible. | |
| Listings | UL Listed to UL 103HT (MH7399). | |
| Warranty | Limited-lifetime warranty | |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
