Description
When it comes to your home's safety and warmth, you deserve nothing but the best. Introducing the DuraVent DuraPlus Adjustable Roof Flashing, the guardian of your chimney pipe. With a commitment to quality, this product is meticulously crafted to ensure your peace of mind.
At its core, DuraPlus is engineered to stay cool on the outside while providing a hot draft on the inside. This dual-action not only enhances your stove's efficiency but also ensures a fire-safe design that shields both your chimney and your cherished abode. How does it work? With two insulating layers - a refractory blanket and an air space - it creates a robust thermal barrier. Say goodbye to those troublesome hot spots that plague loose-fill insulations. And in the rare event of a creosote fire, our compressible blanket insulation allows the chimney liner to expand outwardly, mitigating any potential danger.
But that's not all. DuraPlus isn't just reliable; it's tough. Designed to withstand continuous operation at temperatures of up to 1000°F, it surpasses industry standards. It has undergone rigorous testing, including enduring one hour at a scorching 1400°F and three ten-minute chimney fire tests at a blistering 2100°F. Your safety is our priority, and DuraPlus exceeds expectations to ensure it.
Benefits:
- Enhanced Safety: DuraPlus provides unparalleled fire protection, keeping your home and chimney secure.
- Efficiency Boost: Its dual-wall design maximizes stove efficiency, giving you more heat with less fuel.
- Exceptional Insulation: With refractory blanket insulation and air space, it eliminates troublesome hot spots.
- Durability: Constructed with top-grade materials, DuraPlus is built to withstand high temperatures and the test of time.
- Easy Installation: The precision twist-lock connection ensures a tight and secure fit.
- Versatile Sizing: Available in 6", 7", and 8" sizes to suit your specific needs.
- Peace of Mind: Backed by a limited-lifetime warranty for worry-free ownership.
Features:

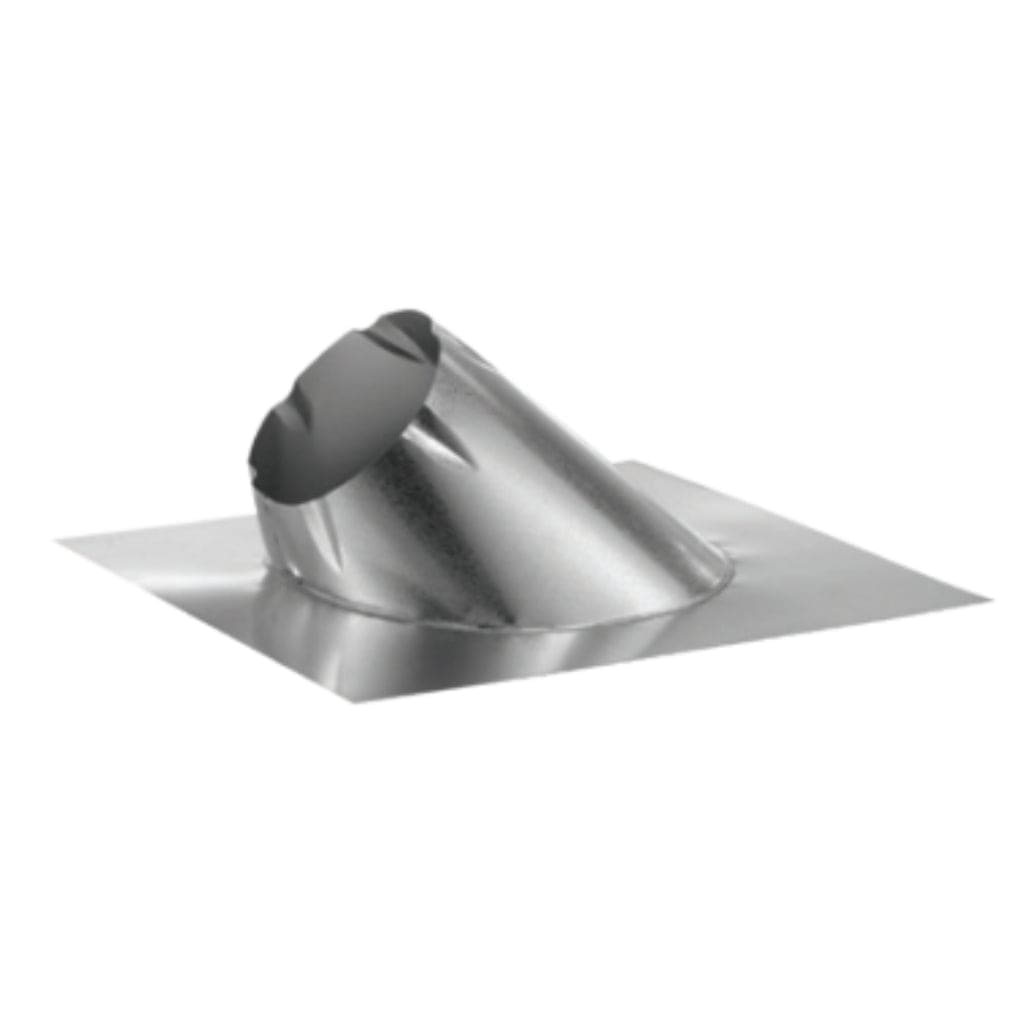

- Use to weatherproof the penetration of chimney pipe through the roof.
- Storm Collar required. Select roof flashing based on the pitch of the roof.
- For example, a 6/12 pitch has a vertical rise of 6” over a horizontal distance of 12”.
- Made of galvalume.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | Size | Dimension |
| 6DP-F12 | 6" | 6" (A) x 10.75" (B) x 26" (C) x 26" (D) |
| 7DP-F12 | 7" | 6" (A) x 11.75" (B) x 26" (C) x 26" (D) |
| 8DP-F12 | 8" | 6" (A) x 12.75" (B) x 26" (C) x 26" (D) |
| Clearances | 2" clearance to combustible. | |
| Listings | UL Listed to UL 103HT (MH7399). | |
| Warranty | Limited-lifetime warranty | |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
