Description

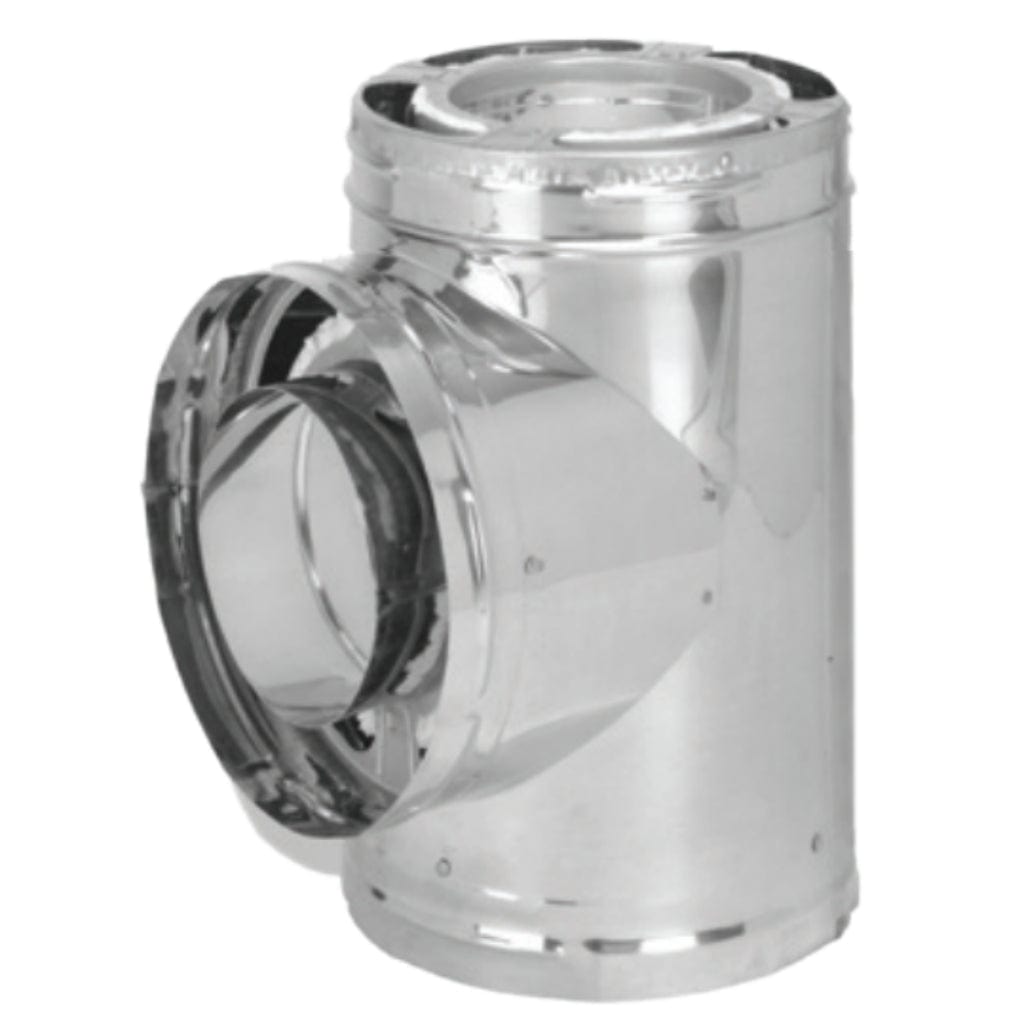

Enhance your chimney's performance and safety with the DuraVent DuraPlus Galvanized Tee with Cap. This vital component is a game-changer for your fireplace system, offering the perfect balance of form and function.
Crafted with precision engineering and innovative design, the DuraVent DuraPlus Galvanized Tee with Cap is engineered to maintain a cool exterior while delivering a hot draft inside. This unique feature not only increases stove efficiency but also ensures the safety of your chimney and your home. With its triple-wall construction, featuring two insulating layers - a refractory blanket and air space - this tee goes above and beyond the norm.
In the unfortunate event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly in a radial direction, preventing dangerous consequences. When you choose the DuraVent DuraPlus Galvanized Tee with Cap, you're choosing peace of mind.
Benefits:
- Enhanced Safety: Protects your chimney and your home with a fire-safe design.
- Optimal Efficiency: Maintains a hot draft, boosting stove efficiency.
- Triple-Wall Construction: Features refractory insulation and air space for superior insulation.
- Expandable Liner: Compressible blanket insulation prevents damage during creosote fires.
- Durable Materials: Built to withstand extreme temperatures.
- Easy Maintenance: Removable clean-out cap for effortless cleaning and inspection.
- UL Listed: Meets rigorous safety standards for your peace of mind.
Features:
- Use for through-the-wall chimney installations.
- The tee clean-out cap is removable for easy chimney cleaning or inspection.
- Wall Straps, a Wall Thimble, and a Tee Support must be installed with the Tee as directed.
- Tees have a 1” insulating blanket.
- Ventilation air for the chimney must be drawn from outdoors.
- (See installation instructions.)
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | Diameter Size | Dimension |
| 6DP-T | 6" (inner) | 15-5/16" (A) x 7.5" (B) x 8.25" (C) |
| 7DP-T | 7" (inner) | 17-5/16" (A) x 8" (B) x 8.75" (C) |
| 8DP-T | 8" (inner) | 17.5" (A) x 8.5" (B) x 9" (C) |
| Finish | Galvanized Steel | |
| Clearances | 2" clearance to combustible. | |
| Listings | UL Listed to UL 103HT (MH7399). | |
| Warranty | Limited-lifetime warranty | |
