Description

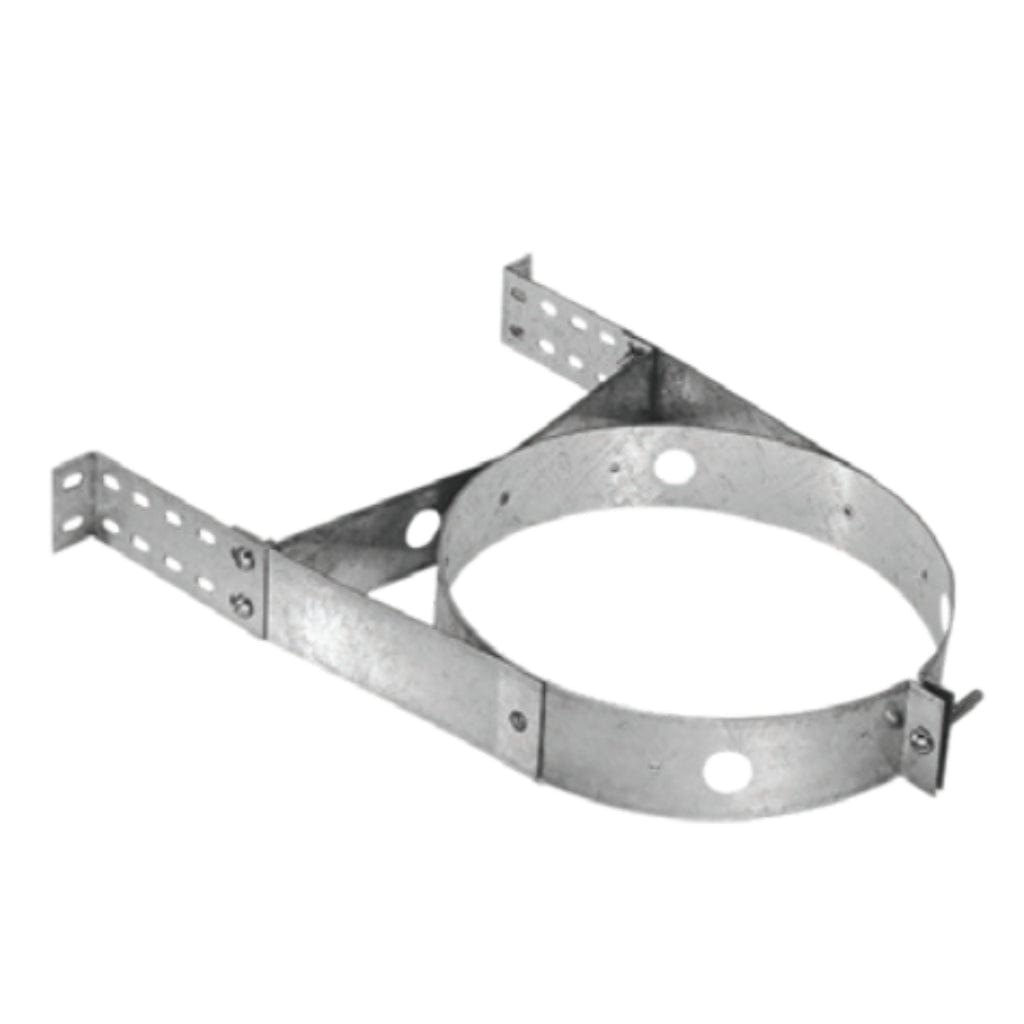

In the world of chimney solutions, the DuraVent DuraPlus Adjustable Wall Strap stands tall as a beacon of safety and efficiency. If you're seeking a dependable companion for your chimney system, you've just found it. Crafted with precision and engineered for excellence, this wall strap redefines stability and performance.
At its core, the DuraPlus Adjustable Wall Strap is designed to keep things cool on the outside while igniting a hot draft inside. It's not just a support; it's a guardian for your chimney, ensuring it operates at peak efficiency while safeguarding your property. What sets it apart? It's all about the layers – two insulating layers to be precise. The refractory blanket coupled with an insulating air space guarantees a thermal performance like no other. Say goodbye to those pesky hot spots that plague loose-fill insulation.
But what truly sets the DuraPlus Adjustable Wall Strap in a league of its own is its resilience against the unexpected. In the unfortunate event of a creosote fire, the compressible blanket insulation enables the chimney liner to expand outwardly, preventing catastrophe. Safety is paramount, and DuraPlus understands that.
Benefits:
-
Unmatched Stability: This wall strap keeps your chimney firmly in place, whether indoors or outdoors, with a 2" clearance for added safety.
-
Versatile Sizing: Available in 6", 7", and 8" sizes, it's adaptable to your chimney's unique needs.
-
Adjust with Ease: The DuraPlus Adjustable Wall Strap lets you fine-tune the clearance from 2" to 6", giving you precise control.
-
Superior Materials: Crafted from .016" 430 stainless steel outer wall and inner liner, .018" galvanized steel outer wall, and .018" aluminized steel intermediate liner, it's built to last.
-
Efficient Insulation: Featuring insulated layers and a ventilated air space, it enhances your chimney's performance while maintaining safety.
-
Precision Lock: The precision twist-lock connection ensures a secure fit, keeping your chimney in top shape.
-
UL Listed: Rest easy knowing it meets UL 103HT standards (MH7399) for quality and safety.
Features:
- Use in interior or exterior installations to support and stabilize the chimney while assuring a 2” clearance.
- Wall straps are required every 4' on the exterior of the building.
- Adjusts 2”-6” from the wall.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | Size | Dimension |
| 6DP-AWS | 6" | 10" (A) x 16.125" (B) |
| 7DP-AWS | 7" | 11" (A) x 17.125" (B) |
| 8DP-AWS | 8" | 12" (A) x 18.125" (B) |
| Clearances | 2" clearance to combustible. | |
| Listings | UL Listed to UL 103HT (MH7399). | |
| Warranty | Limited-lifetime warranty | |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
