Description

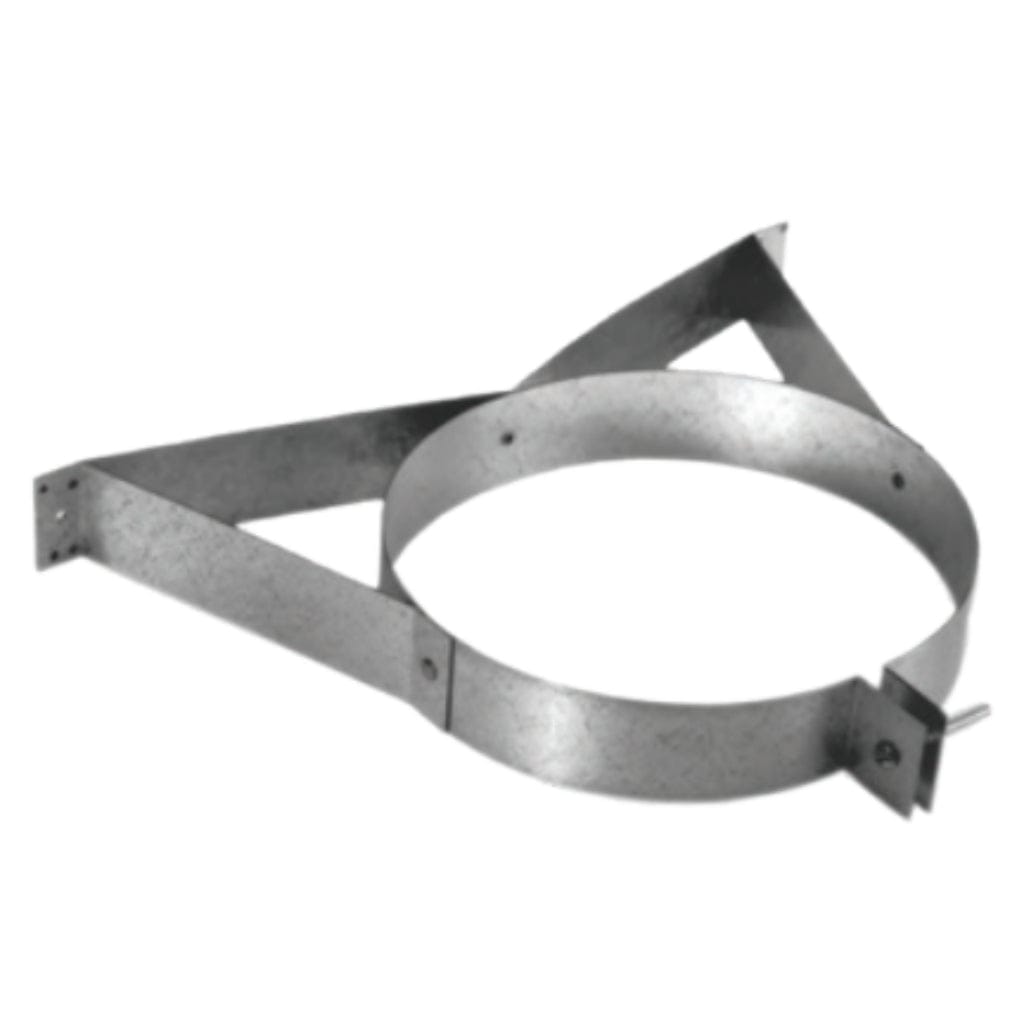

When it comes to safeguarding your home and enhancing the efficiency of your stove, the DuraVent DuraPlus 6"-8" Galvanized Wall Strap is your reliable partner. Crafted with precision and engineered to perfection, this wall strap not only provides stability but also ensures the safety of your chimney and your property.
DuraPlus is not your average wall strap; it's designed to excel in the most demanding conditions. With a triple-wall chimney structure featuring two insulating layers, including a refractory blanket and an air space, it offers unbeatable thermal protection. Say goodbye to those pesky hot spots that can occur with other insulation types; DuraPlus keeps things cool on the outside, ensuring a hot draft on the inside, which boosts your stove's efficiency.
In the unfortunate event of a creosote fire, DuraPlus has a trick up its sleeve. Its compressible blanket insulation allows the chimney liner to expand outwardly, preventing potential hazards and keeping your home safe. Plus, it's built for extreme heat, withstanding 1000°F flue gas temperatures during normal operation and even enduring rigorous UL standard tests, including exposure to 1400°F for one hour and three ten-minute chimney fire tests at a scorching 2100°F.
Benefits:
- Enhanced Safety: Protect your chimney and your home with a design that excels in fire safety, even during creosote fires.
- Optimized Efficiency: Experience a hotter draft inside your chimney, resulting in improved stove efficiency and reduced energy consumption.
- Easy Installation: With its precision twist-lock connection, the DuraPlus Wall Strap is easy to install and ensures a secure fit.
- Versatile Use: Suitable for both interior and exterior installations, offering flexibility in positioning your chimney.
- Robust Materials: Crafted from high-quality stainless steel and galvanized steel for long-lasting durability.
- Adjustable Clearance: Easily adjust the clearance from the wall, ensuring the perfect fit for your setup.
- Peace of Mind: Backed by a limited-lifetime warranty, giving you confidence in your investment.
Features:
- Use in interior or exterior installations to support and stabilize the chimney while assuring a 2” clearance.
- Wall straps are required every 4' on the exterior of the building.
- Adjusts 2”-6” from the wall.
Materials and Construction:
- .016” 430 stainless steel outer wall
- .016” 430 stainless steel inner liner.
- .018” galvanized steel outer wall.
- .018” aluminized steel intermediate liner.
- Insulated layers plus ventilated air space.
- Locks tightly with a precision twist-lock connection.
Specifications:
| Model | Size | Dimension |
| 6DP-WS | 6" | 10" (A) x 16" (B) |
| 7DP-WS | 7" | 11" (A) x 16" (B) |
| 8DP-WS | 8" | 12" (A) x 16" (B) |
| Clearances | 2" clearance to combustible. | |
| Listings | UL Listed to UL 103HT (MH7399). | |
| Warranty | Limited-lifetime warranty | |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
