Description

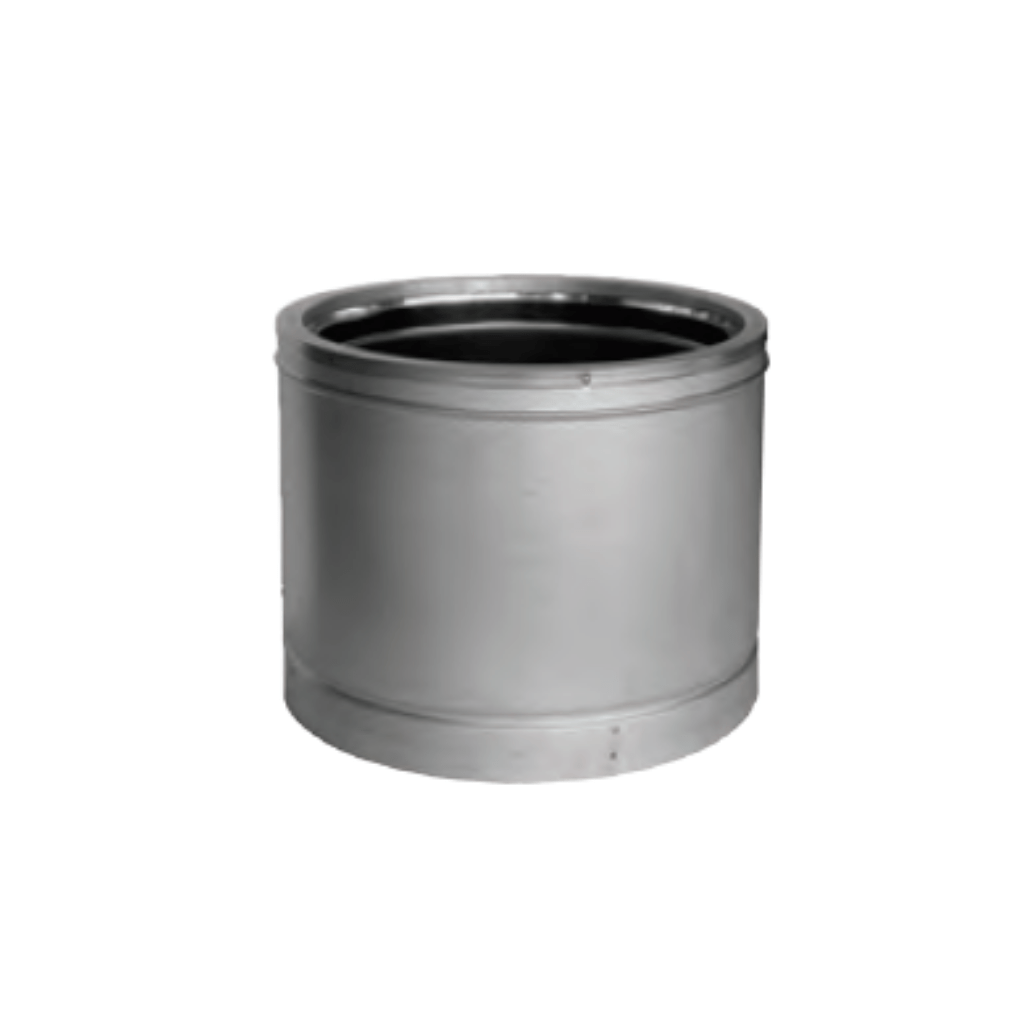

Upgrade your fireplace or heating system with the DuraVent DuraTech 10" Galvalume Steel Chimney Pipe, the pinnacle of chimney technology. With a focus on safety, performance, and versatility, this chimney pipe is the answer to your venting needs.
Engineered for excellence, the DuraTech chimney pipe is UL 103 HT and ULC S604 certified, ensuring you have the highest quality and safety standards at your disposal. It's designed to withstand extreme conditions, tested for continuous operation at 1000°F flue gas temperatures, one hour at 1400°F, and even ten minutes at 1700°F, adhering to the stringent UL 103 test standard. This is your guarantee of reliability, even in the most demanding situations.
Benefits:
- All-Fuel Efficiency: Whether you use wood, gas, oil, coal, or a combination, the DuraTech Chimney works seamlessly with a wide range of residential heating appliances.
- Robust Construction: Crafted with precision, featuring a 0.027" 430 stainless steel inner wall and a 0.029" Galvalume Steel outer wall, this chimney pipe is built to last.
- Easy Installation: Twist-lock fittings eliminate the need for locking bands or mechanical fasteners, making installation a breeze.
- Thermal Tech Insulation: A ceramic refractory blanket insulation ensures the outer wall stays cool while maintaining high flue gas temperatures for optimal draft performance.
- Versatile Sizing: Choose from a variety of diameters and lengths to suit your specific installation requirements.
- UL-Listed Shrouds: Create a safe and attractive termination point with UL-listed shrouds, ensuring the utmost in installation safety.
- Lifetime Warranty: Enjoy peace of mind with the industry's best warranty - a limited lifetime warranty, with 15 years at 100% coverage and 15 more years at 50%.
Product Details:
| Model | DuraTech 10" |
| Part no. | 10DT-36 |
| Part no. | 10DT-36CF |
| Inner Diameter, A | 10 inch |
| Outer Diameter, B | 12 inch |
| Pipe Length | 36 inch |
| Inner Wall Material |
0.027” 430 Stainless Steel |
| Outer Wall Material | 0.029” Galvalume Steel |
Applications:
In the United States, DuraTech Chimney can be used with wood fireplaces, furnaces, boilers, water heaters, ranges, or other residential-type appliances fueled by oil, gas, coal, or wood, that have been tested and listed for use with a UL103 chimney system.
In Canada, DuraTech can be used with oil & gas-fired appliances listed for use with a Type A Chimney, in accordance with ULC S604.
Materials and Construction: 10″-24″ diameter pipe feature .027″ 430 stainless steel inner wall and outer wall of .029″ galvalume or .027″ 430 stainless steel. A Thermal Tech (ceramic refractory) blanket insulation is encased between walls. Refractory insulation is encased between walls. Only stainless pipes use stainless end rings. Regular galvalume pipe uses galvalume end rings.
Clearances: 2″ clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
