Description

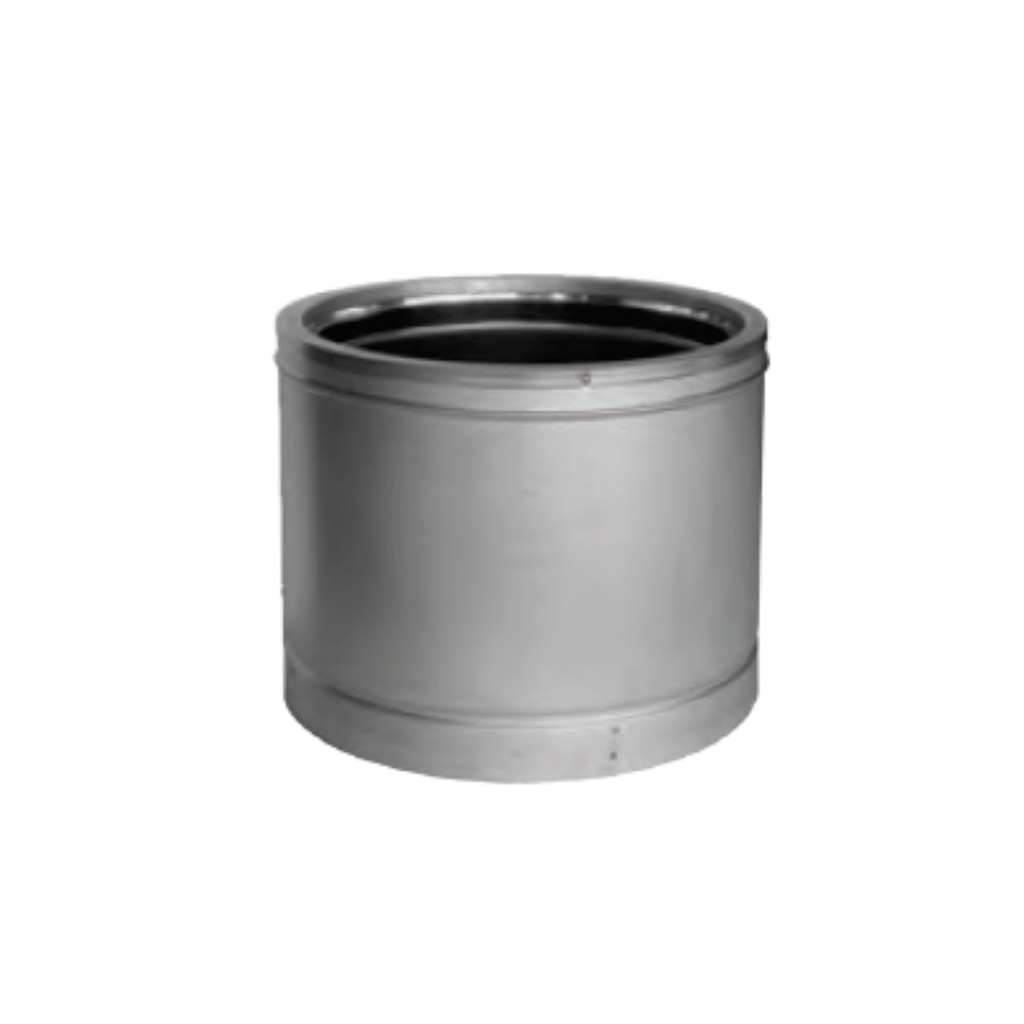

In the realm of home comfort and hearthside warmth, few things rival the sheer grandeur of a roaring fireplace. When you're looking to make a statement with a larger-than-life residential fireplace or heating appliance, the DuraVent DuraTech 10" Stainless Steel Chimney Pipe stands as your steadfast companion. This meticulously crafted chimney system is more than just a flue; it's your gateway to a safe, reliable, and extraordinary fireplace experience.
Crafted with precision and fortified with innovation, the DuraTech 10" Stainless Steel Chimney Pipe from DuraVent is engineered to exceed expectations. Compliant with the rigorous UL 103 HT and ULC S604 standards, this double-wall chimney system is a testament to exceptional quality and unmatched performance. Picture your home radiating with the warmth and elegance only a large-scale residential fireplace can provide.
Benefits:
- Safety First: DuraTech is built to endure extreme conditions, tested to withstand temperatures up to 1700°F, ensuring your peace of mind, even in the harshest conditions.
- Versatility Unleashed: Use this chimney pipe for a variety of applications, from wood fireplaces to boilers, furnaces, and more, with approval for oil, gas, coal, or wood-fueled appliances.
- Top-Notch Materials: The inner and outer walls are constructed with 0.027" 430 stainless steel, providing durability and longevity.
- Simple Installation: With twist-lock fittings and no need for locking bands or mechanical fasteners, installation is a breeze.
- Custom Shroud Options: Tailor your installation with UL-listed shroud specifications, ensuring both safety and aesthetics.
- Thermal Tech Excellence: Enjoy optimal draft performance with Thermal Tech blanket insulation that keeps the outer wall cool while maintaining high flue gas temperatures.
- Peace of Mind: Backed by a Limited Lifetime Warranty, this chimney pipe offers 15 years at 100% and another 15 years at 50%, offering unparalleled assurance for you and your home.
Product Details:
| Model | DuraTech 10" |
| Part no. | 10DT-24SS |
| Inner Diameter, A | 10 inch |
| Outer Diameter, B | 12 inch |
| Pipe Length | 24 inch |
| Inner Wall Material |
0.027” 430 Stainless Steel |
| Outer Wall Material | 0.027” 430 Stainless Steel |
Applications:
In the United States, DuraTech Chimney can be used with wood fireplaces, furnaces, boilers, water heaters, ranges, or other residential-type appliances fueled by oil, gas, coal, or wood, that have been tested and listed for use with a UL103 chimney system.
In Canada, DuraTech can be used with oil & gas-fired appliances listed for use with a Type A Chimney, in accordance with ULC S604.
Materials and Construction: 10″-24″ diameter pipe feature .027″ 430 stainless steel inner wall and outer wall of .029″ galvalume or .027″ 430 stainless steel. A Thermal Tech (ceramic refractory) blanket insulation is encased between walls. Refractory insulation is encased between walls. Only stainless pipes use stainless end rings. Regular galvalume pipe uses galvalume end rings.
Clearances: 2″ clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
