Description

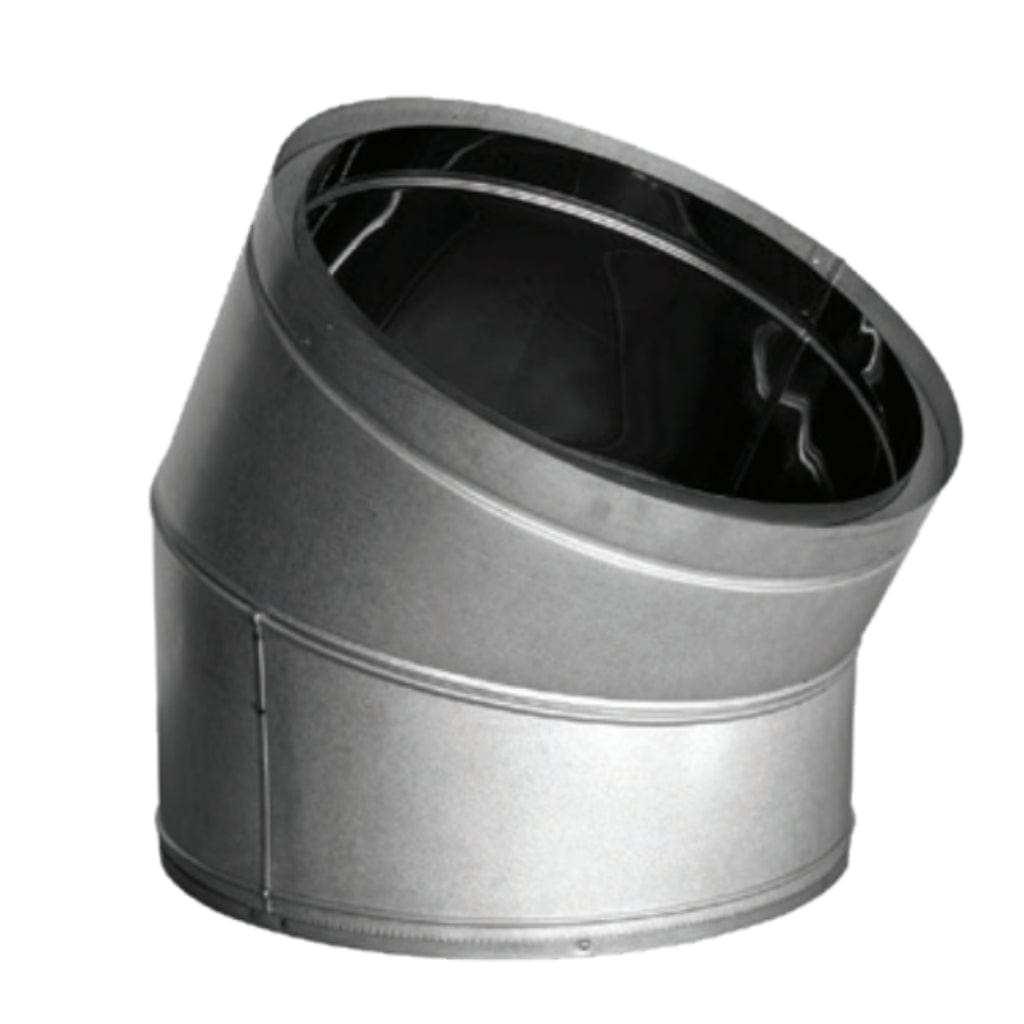

Elevate your venting system to new heights with DuraVent's DuraTech 30-Degree Elbow in Stainless Steel. As the premier name in the venting industry, DuraVent is renowned for its commitment to safety, innovation, and professionalism, setting the gold standard for HVAC and Hearth markets. DuraTech, a testament to their excellence, boasts refractory insulation between dual walls, keeping the chimney's outer wall cool while ensuring optimal draft performance.
DuraTech's inner wall is an impressive 25% thicker than competing chimneys, providing an additional layer of safety without the need for locking bands or mechanical fasteners. This 30-Degree Elbow is specifically designed to facilitate offsets around obstructions like rafters, ridgepoles, or joists, adhering to stringent UL 103 standards. Available in both galvalume (GA) and stainless steel (SS) outer wall options with a stainless steel inner wall, this product ensures longevity and durability. Installation is a breeze, thanks to the included fastening screws. DuraTech is not just a product; it's a symbol of quality, reliability, and peace of mind.
Benefits:
- Enhanced Safety: DuraTech's thicker inner wall and refractory insulation provide an extra margin of safety for your venting system.
- Optimal Performance: Keep your flue gas temperatures high for the best draft performance while ensuring the outer chimney wall remains cool.
- Easy Installation: Say goodbye to the hassle of locking bands or mechanical fasteners - DuraTech simplifies your installation process.
- Versatile Offset Solution: Use it for offsets around obstructions, whether it's rafters, ridgepoles, or joists.
- Material Choices: Available in galvalume and stainless steel options for long-lasting durability.
- Stress-Free Fastening: Secure your 30-Degree Elbow with the included screws.
- UL-Listed Reliability: Tested and listed for continuous operation at high temperatures, DuraTech provides the peace of mind you deserve.
Features:
- Use for offsets around obstructions such as rafters, ridgepoles, or joists.
- Offsets greater than 30° are not permitted in accordance with UL 103 standards.
- Large diameters are restricted to one pair of elbows.
- Available in galvalume (GA) and stainless steel (SS) outer wall and stainless steel inner wall.
- Fasten with screws.
Specifications:
| Model | Dimensions |
| 12DT-E30SS | 12" (A) x 14" (B) x 6.125" (C) x 6.875" (D) |
| 14DT-E30SS | 14" (A) x 16" (B) x 6.375" (C) x 7.125" (D) |
| 16DT-E30SS | 16" (A) x 18" (B) x 6.625" (C) x 7.375" (D) |
| 18DT-E30SS | 18" (A) x 20" (B) x 9" (C) x 9" (D) |
| 20DT-E30SS | 20" (A) x 22" (B) x 9" (C) x 9" (D) |
| 22DT-E30SS | 22" (A) x 24" (B) x 9" (C) x 9" (D) |
| 24DT-E30SS | 24" (A) x 26" (B) x 9" (C) x 9" (D) |
| Clearances | 2" clearance to combustible. |
| Listings | c-UL-us listed to UL 103 and ULC S604 (MH7399) |
| Warranty | Limited-lifetime warranty |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
