Description

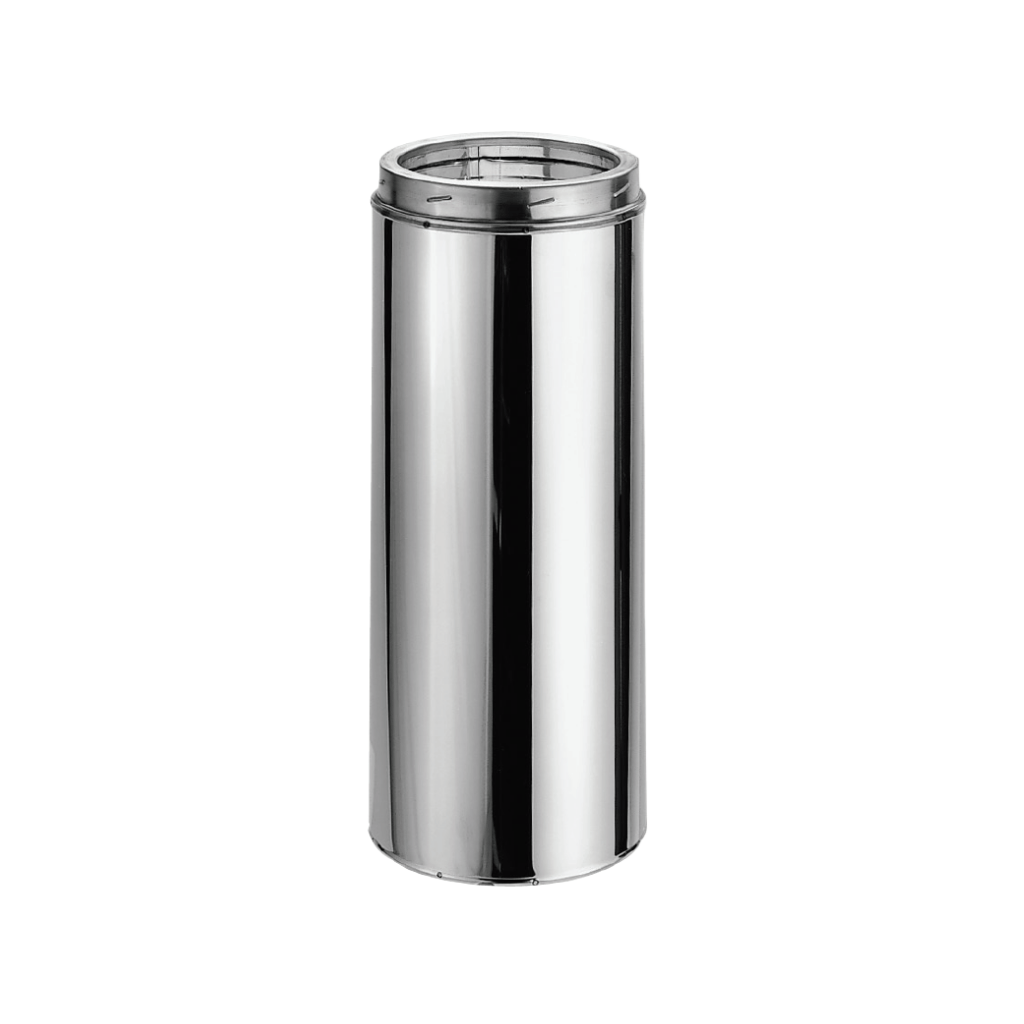

Upgrade your home's chimney system with the DuraVent DuraTech 5" Diameter Stainless Steel CF 60" Pipe Length. This top-of-the-line, double-wall chimney system has been meticulously designed to provide you with the utmost safety and performance, making it an ideal choice for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or any other appliances fueled by wood, oil, coal, or gas.
At the core of the DuraTech system lies a Thermal Tech blanket insulation sandwiched between two durable stainless steel walls. This innovative design not only ensures the safety of your home by keeping the outer chimney wall cool but also optimizes flue gas temperatures to enhance draft performance. The inner wall is impressively 25% thicker than its competitors, offering an extra margin of safety that gives you peace of mind.
With its sleek 1" wall design, the DuraTech chimney pipe allows for easy installation through 16" on-center framing. What's more, you won't need any locking bands or mechanical fasteners, making the installation process a breeze. Designed to handle continuous operation at flue gas temperatures of up to 1000°F, the DuraTech chimney pipe undergoes rigorous testing, including withstanding one hour at 1400°F and enduring three ten-minute chimney fire tests at a scorching 2100°F. You can trust that it's built to last.
Benefits:
- Exceptional Safety: With the inner wall 25% thicker than competitive chimneys, DuraTech ensures the highest level of safety for your home.
- Effortless Installation: The sleek 1" wall design simplifies installation, and no locking bands or mechanical fasteners are needed.
- Versatile Application: Suitable for a wide range of appliances fueled by wood, oil, coal, or gas, this chimney pipe is designed to meet your diverse needs.
- Optimized Draft Performance: The Thermal Tech blanket insulation keeps the outer wall cool while maintaining high flue gas temperatures, ensuring optimal draft performance.
- Durable Construction: Constructed from high-quality stainless steel, DuraTech is built to withstand high temperatures and long-term use.
- Variety of Sizes: Choose from a wide variety of diameters and lengths to find the perfect fit for your chimney system.
- Peace of Mind: Backed by a Limited Lifetime Warranty, DuraTech offers a level of confidence and assurance unmatched in the industry. Enjoy 15 years at 100% coverage and an additional 15 years at 50% coverage, knowing your investment is secure.
Product Details:

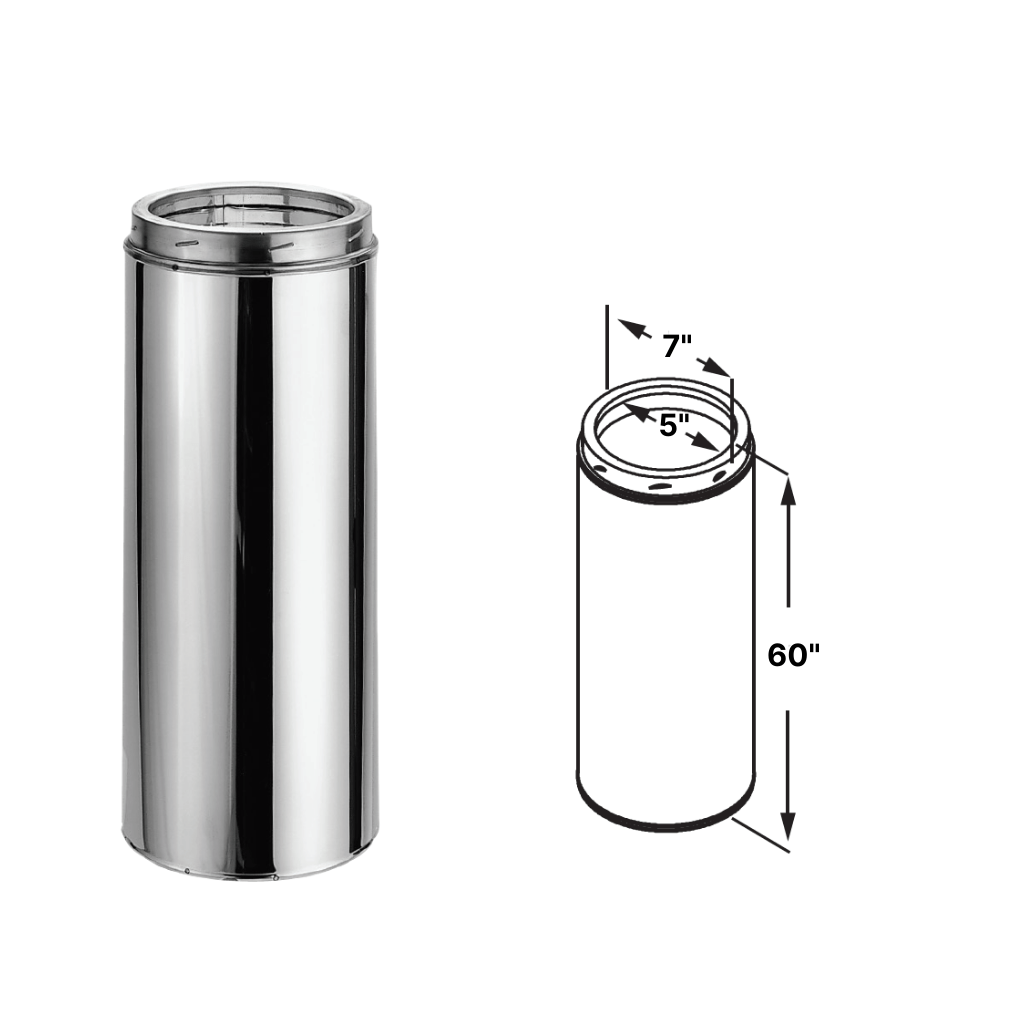

| Model | DuraTech 5" |
| Part no. | 5DT-60SSCF |
| Inner Diameter, A | 5 inch |
| Outer Diameter, B | 7 inch |
| Pipe Length | 60 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- Thermal Tech blanket insulation encased between two walls keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance.
- Available with stainless or galvalume outer walls.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
