Description

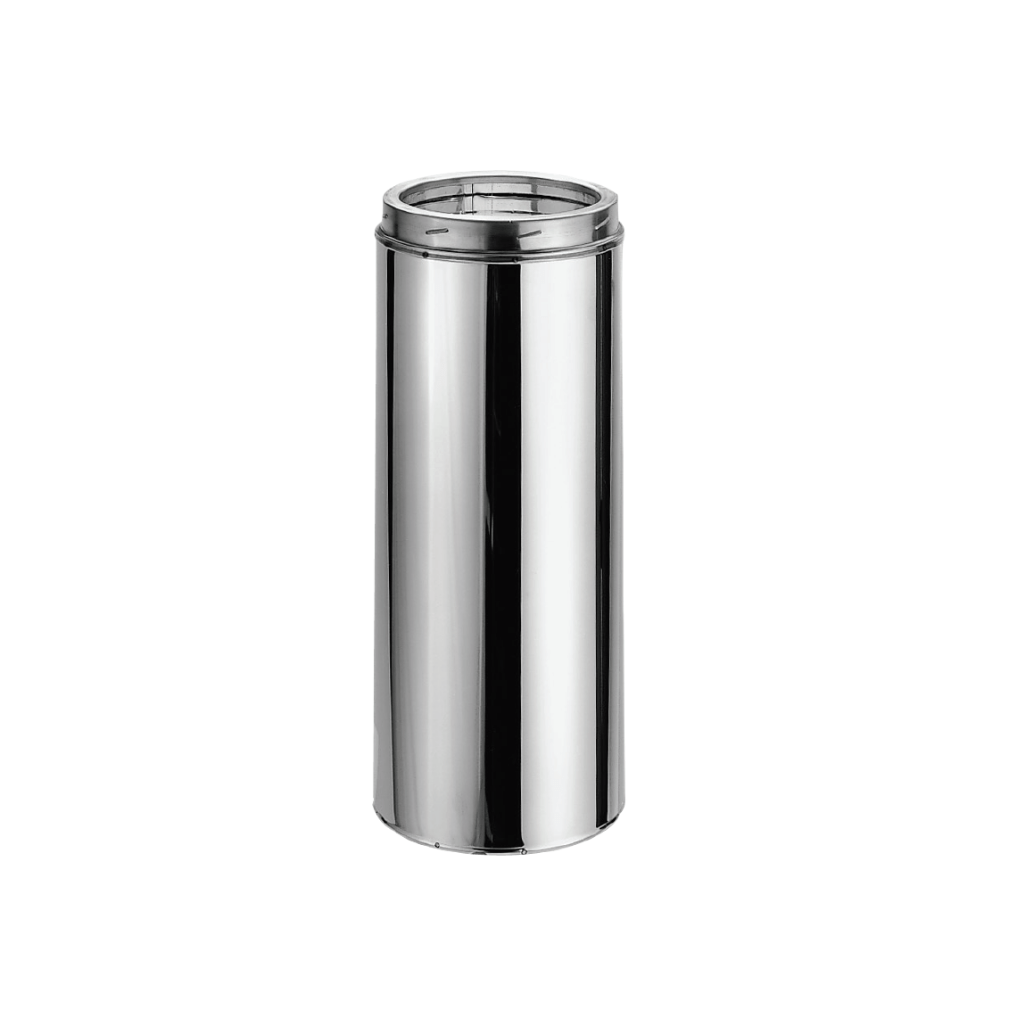

Elevate your home's safety and heating system's performance with the DuraVent DuraTech 7" Galvalume Steel 48" Chimney Pipe. Designed to meet the rigorous standards of UL 103 HT and ULC S604, this chimney pipe is the pinnacle of reliability and innovation.
With a Thermal Tech blanket insulation enclosed between dual walls, the DuraTech chimney system strikes the perfect balance between keeping the outer wall cool while ensuring high flue gas temperatures for an impeccable draft performance. No more locking bands or cumbersome mechanical fasteners; it's hassle-free installation at its finest.
Benefits:
- Optimal Safety: The DuraTech chimney boasts an inner wall 25% thicker than its competitors, providing an extra layer of safety for your home and family.
- Easy Installation: With its sleek 1" wall design, the DuraTech makes installations a breeze, even through 16" on-center framing, and offers a Reduced Clearance Square Ceiling Support Box for tight spaces (applicable to 6" diameter DuraTech).
- High-Temperature Performance: This chimney system is engineered for continuous operation at 1000°F flue gas temperatures and subjected to extreme tests, including withstanding temperatures of 1400°F for an hour and three ten-minute chimney fire tests at a staggering 2100°F.
- Versatile Applications: DuraTech is your go-to choice for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and appliances fueled by wood, oil, coal, or gas, as well as zero-clearance fireplaces that are factory-built.
- Premium Materials: The 7" DuraTech features a 0.020” 430 stainless steel inner wall and a 0.021” Galvalume steel outer wall. The 'CF' designation even includes additional protective carton foam for secure shipping.
- Minimal Clearances: With a mere 2" clearance to combustibles, you can trust that your installation remains safe and unobtrusive.
- Ultimate Peace of Mind: Backed by a Limited Lifetime Warranty, DuraTech provides 15 years at 100% and up to 50%, giving you unparalleled assurance in the quality of your installation.
Product Details:
| Model | DuraTech 7" |
| Part no. | 7DT-48 |
| Part no. | 7DT-48CF |
| Inner Diameter, A | 7 inch |
| Outer Diameter, B | 9 inch |
| Pipe Length | 48 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.021” Galvalume Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
