Description

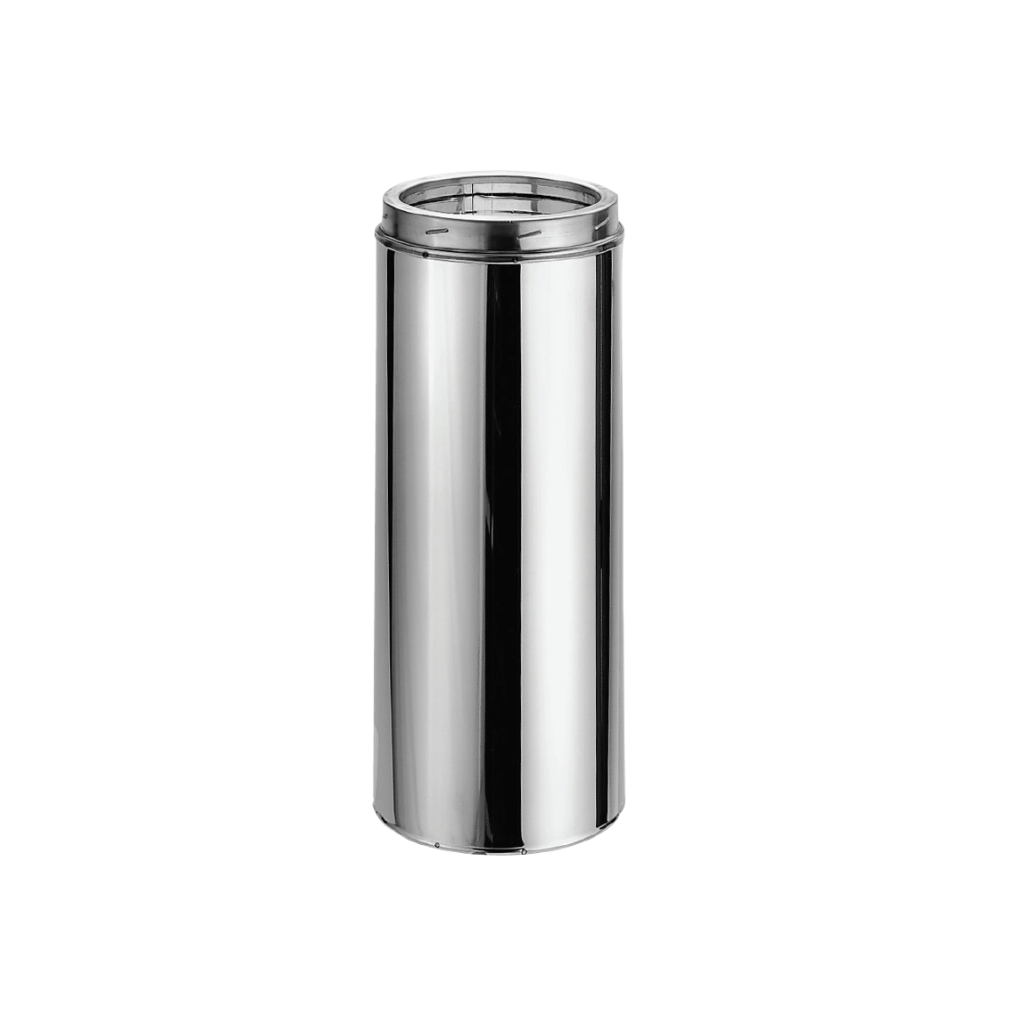

Welcome to the pinnacle of chimney technology - the DuraVent DuraTech 7" x 48" Stainless Steel Chimney Pipe. If you're looking for an all-fuel, double-wall chimney system that ensures safety and performance, your search ends here. DuraTech is not just a chimney; it's the cornerstone of a warm, inviting, and secure atmosphere in your home.
Crafted to meet the most stringent safety standards, our DuraTech chimney pipe is UL 103 HT and ULC S604 certified, guaranteeing you worry-free operation. The secret to DuraTech's excellence lies in its Thermal Tech blanket insulation, nestled between its dual walls. This insulation keeps the outer chimney wall cool while maintaining high flue gas temperatures for optimal draft performance.
DuraTech isn't just about safety; it's also about convenience. The inner wall is 25% thicker than most competing chimneys, ensuring an additional layer of protection. Plus, you won't need any locking bands or mechanical fasteners. With its sleek 1" wall design, it effortlessly fits through 16" on-center framing, making installation a breeze. And if space is tight, our Reduced Clearance Square Ceiling Support Box, available for the 6" diameter DuraTech, has you covered.
For those who demand the best, DuraTech doesn't disappoint. Designed for continuous operation at 1000°F flue gas temperatures, it has endured rigorous tests, including one hour at 1400°F and three ten-minute chimney fire tests at a scorching 2100°F. When you choose DuraTech, you're choosing uncompromising quality.
Benefits:
1. Optimal Safety: DuraTech's double-wall design and thicker inner wall provide unparalleled safety, exceeding industry standards.
2. Hassle-Free Installation: The sleek 1" wall design allows for easy installation, even in tight spaces, and you won't need locking bands or fasteners.
3. All-Fuel Versatility: DuraTech is suitable for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more, regardless of the fuel type.
4. Superior Insulation: Its Thermal Tech blanket insulation ensures the outer wall stays cool while maintaining high flue gas temperatures for optimal draft performance.
5. Industry-Leading Materials: Made with high-quality 430 stainless steel and galvalume steel, DuraTech stands the test of time.
6. Swivel Base: The swivel base feature saves time and money during installation by easily aligning the elbow.
7. Unmatched Warranty: Enjoy the peace of mind with a Limited Lifetime Warranty, with 15 years at 100% and 15 years at 50%. Your investment is protected.
Product Details:
| Model | DuraTech 7" |
| Part no. | 7DT-48SS |
| Part no. | 7DT-48SSCF |
| Inner Diameter, A | 7 inch |
| Outer Diameter, B | 9 inch |
| Pipe Length | 48 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
