Description
When it comes to the safety and performance of your chimney system, there's no room for compromise. That's where the DuraVent DuraTech 8" Stainless Steel 18" Chimney Pipe steps in. This all-fuel, double-wall chimney system has been designed with utmost precision and care to ensure your peace of mind while providing top-notch functionality.
The secret behind DuraTech's outstanding performance lies in its Thermal Tech blanket insulation, expertly sandwiched between dual stainless steel walls. This ingenious design keeps the outer wall of your chimney cool, all while maintaining the optimal flue gas temperatures necessary for a flawless draft. The inner wall, boasting a 25% greater thickness than competitors, adds an extra layer of safety, eliminating the need for locking bands or mechanical fasteners. With a sleek 1" wall design, installation through 16" on-center framing is a breeze. And for those tight spaces, the Reduced Clearance Square Ceiling Support Box is readily available (for 6" diameter DuraTech pipes).
DuraTech doesn't stop there. This chimney system has undergone rigorous testing, including an hour at 1400°F and three ten-minute chimney fire tests at a scorching 2100°F, to meet the demanding standards of the UL. Your safety is the priority.
Benefits:
- All-fuel, double-wall system for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more.
- Outstanding safety with an inner wall 25% thicker than competitors.
- Easy installation with the sleek 1" wall design, no locking bands or mechanical fasteners needed.
- Reliable operation at 1000°F flue gas temperatures.
- Multiple diameter options to fit your needs.
- Twist-lock fittings for hassle-free assembly.
- Backed by a Limited Lifetime Warranty for ultimate peace of mind.

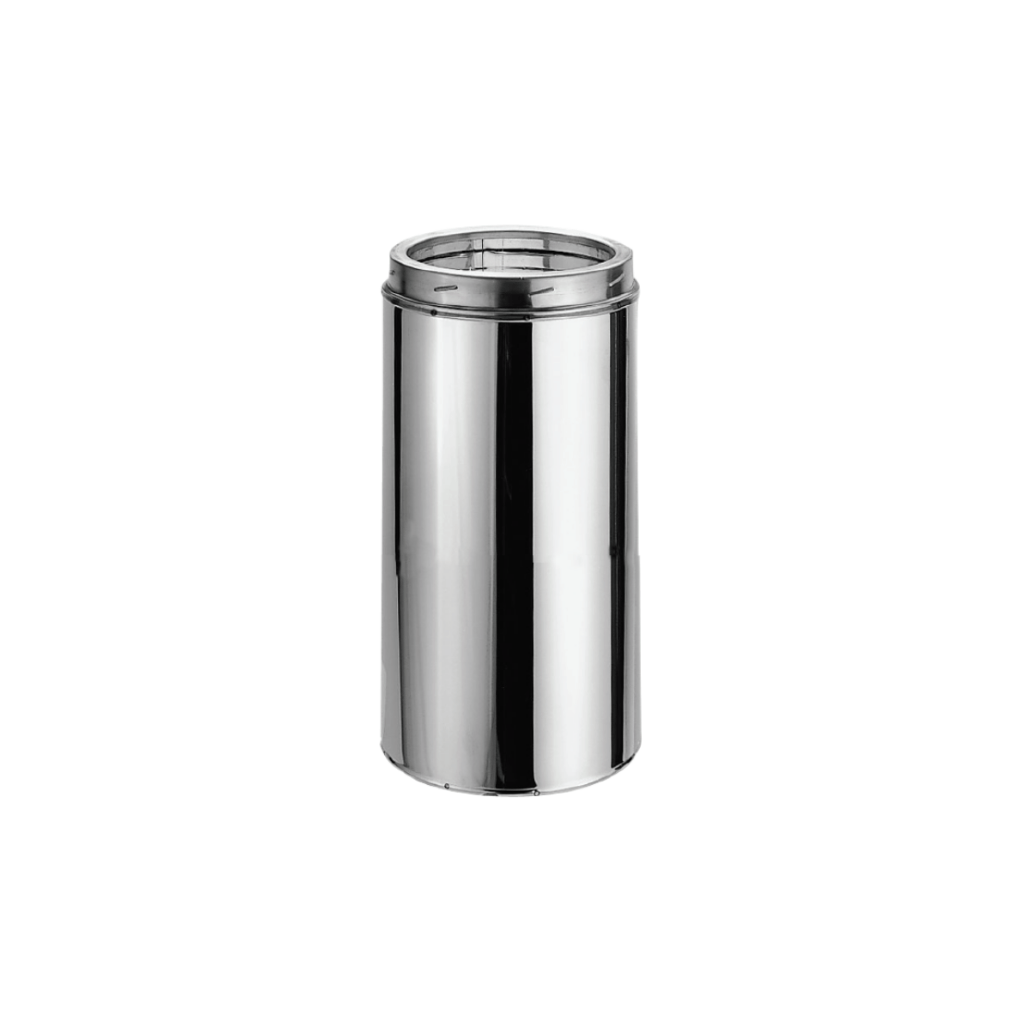

Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-18SS |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 18 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features light weight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
