Description

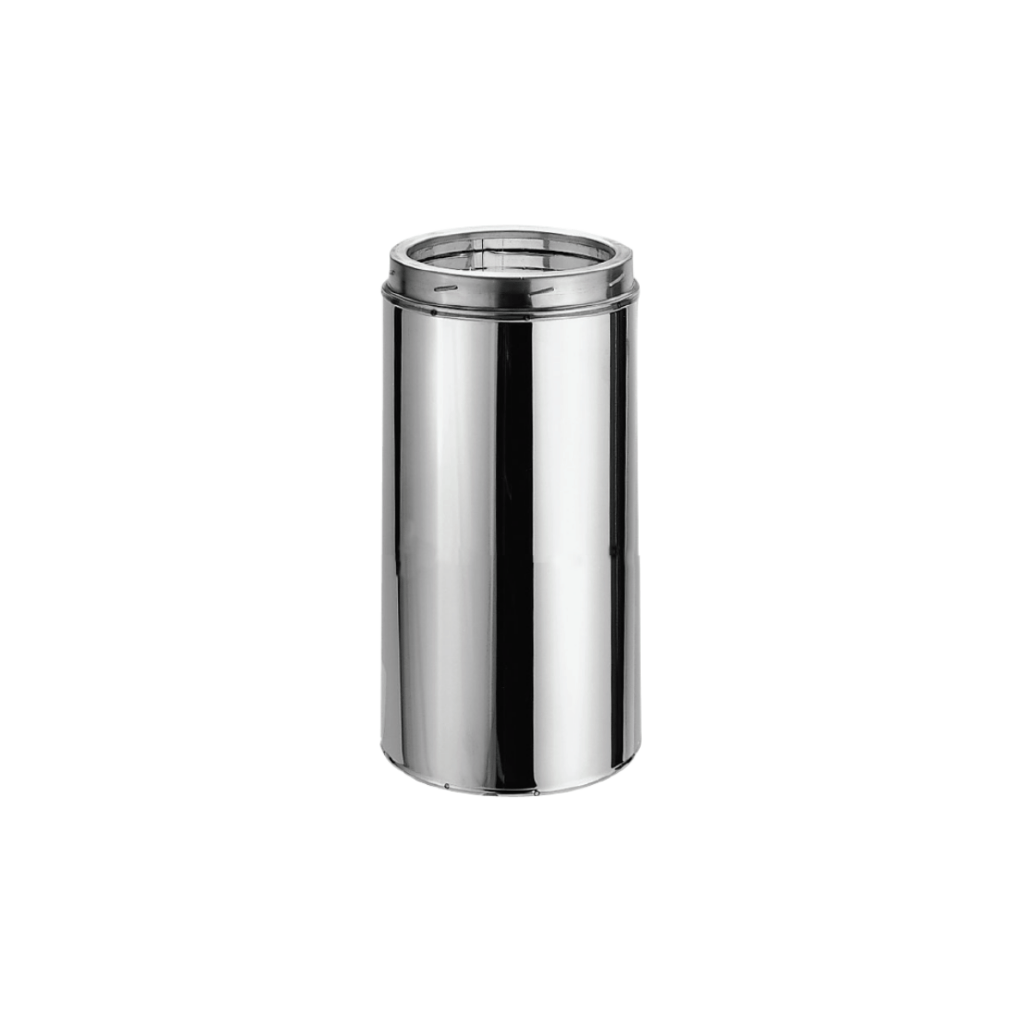

When it comes to ensuring the safety and efficiency of your heating system, you need a chimney pipe that you can trust. Introducing the DuraVent DuraTech 8" Galvalume Steel Chimney Pipe – a beacon of reliability and innovation in the world of chimney systems. This double-wall marvel is here to safeguard your home and deliver peak performance.
Benefits:
-
All-Fuel Versatility: DuraTech is your trusted companion for wood stoves, fireplaces, furnaces, boilers, and more. Whether your fuel source is wood, oil, coal, or gas, this chimney pipe is ready to serve.
-
Superior Insulation: With a Thermal Tech blanket insulation encapsulated within dual walls, DuraTech guarantees the safety of your home by keeping the outer wall cool while ensuring high flue gas temperatures for optimal draft performance.
-
Thicker Inner Wall: Safety is paramount, and DuraTech understands that. Its inner wall is 25% thicker than the competition, providing an extra margin of protection without the need for locking bands or mechanical fasteners.
-
Effortless Installation: The sleek 1" wall design allows easy installation through 16" on-center framing, making it perfect for tight spaces. Plus, for those tricky installations, a Reduced Clearance Square Ceiling Support Box is available (6" diameter DuraTech only).
-
Rigorously Tested: Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraTech goes through stringent high-temperature tests, including exposure to one hour at 1400°F and three ten-minute chimney fire tests at 2100°F.
-
UL-Listed Shroud: Your safety is paramount. DuraTech's shroud specifications enable the creation of a UL-listed shroud to hide the termination at the top of the chase for a secure installation.
-
Limited Lifetime Warranty: DuraTech's industry-leading warranty offers you 15 years of 100% coverage, followed by 15 years of up to 50% coverage. You and your home are covered, giving you peace of mind in a quality installation.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-12 |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 12 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.021” Galvalume Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
