Description

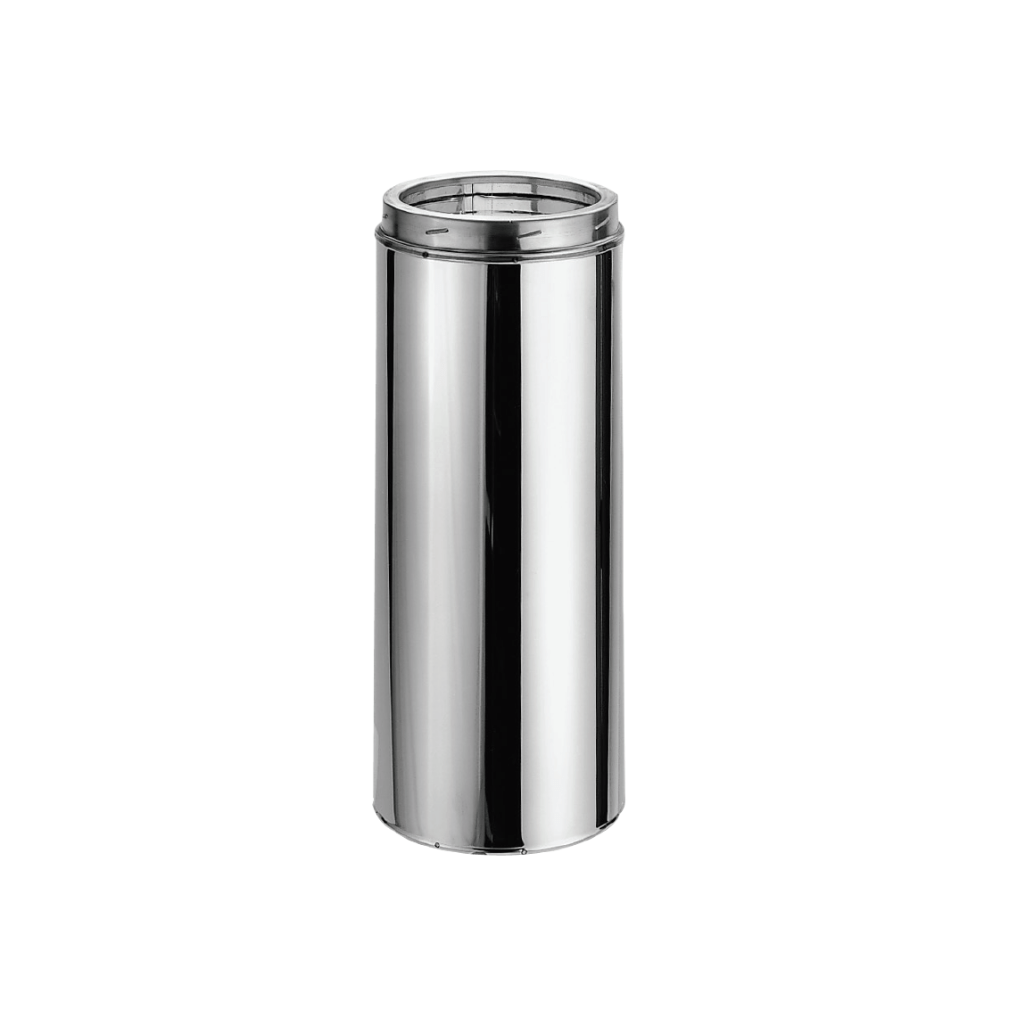

When it comes to creating a warm and inviting atmosphere in your home, you need a chimney system that you can trust. Look no further than the DuraVent DuraTech 8" Galvalume Steel Chimney Pipe. This all-fuel, double-wall chimney system is the pinnacle of safety and performance, ensuring your home remains cozy and secure. With its innovative features, this chimney pipe provides optimal draft performance, keeping your family safe and comfortable.
Crafted with precision, the DuraTech Chimney Pipe boasts a unique Thermal Tech blanket insulation between dual walls. This ingenious design ensures that the outer chimney wall stays cool, while the inner wall remains 25% thicker than competitive chimneys, offering an additional layer of safety. The best part? No locking bands or mechanical fasteners are required, making installation a breeze.
Benefits:
- All-Fuel Versatility: Designed for wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and more, the DuraTech Chimney Pipe is suitable for a wide range of heating appliances.
- Optimal Performance: With its double-wall design, this chimney system ensures high flue gas temperatures for excellent draft performance, even in extreme conditions.
- Easy Installation: Thanks to its sleek 1" wall design, the DuraTech Chimney Pipe allows for effortless installations through 16" on-center framing, making it ideal for tight spaces.
- High-Temperature Endurance: With a design capable of withstanding temperatures up to 1000°F, this chimney pipe complies with rigorous UL standards, including a one-hour test at 1400°F.
- Customizable Lengths: Select from a wide variety of diameters and lengths to suit your unique installation requirements.
- Time and Money Saving: Twist-lock fittings eliminate the need for locking bands or mechanical fasteners, while the swivel base simplifies elbow alignment during installation, saving both time and money.
- Peace of Mind: Backed by a Limited Lifetime Warranty, the DuraTech Chimney Pipe offers unparalleled quality assurance, providing a lifetime of warmth and security for you and your family.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-60CF |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 60 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.021” Galvalume Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
